220V-440V 3-5bar Low Pressure Screw Air Compressor 30kW Direct Drive Screw Compressor
220V-440V 3-5bar Low Pressure Screw Air Compressor 30kW Direct Drive Screw Compressor
220V-440V 3-5bar Low Pressure Screw Air Compressor 30kW Direct Drive Screw Compressor
220V-440V 3-5bar Low Pressure Screw Air Compressor 30kW Direct Drive Screw Compressor
220V-440V 3-5bar Low Pressure Screw Air Compressor 30kW Direct Drive Screw Compressor
220V-440V 3-5bar Low Pressure Screw Air Compressor 30kW Direct Drive Screw Compressor
220V-440V 3-5bar Low Pressure Screw Air Compressor 30kW Direct Drive Screw Compressor
220V-440V 3-5bar Low Pressure Screw Air Compressor 30kW Direct Drive Screw Compressor
Specifications
Brand Name :
AIRERA
Model Number :
AGCD-30D C
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
520-30,000 USD
Payment Terms :
TT/LC
Supply Ability :
2,000-3,000 per month
Delivery Time :
3-30 days
Packaging Details :
According to international standards
Condition :
New Screw Air Compressor
Noise :
78dB
Cooling :
Air or Water Cooled
Power Supply :
220/380/415//440V 50/60Hz 3Ph
Size :
1540*920*1240mm
Cooling Method :
Air or Water Cooled
Colour :
Blue
Transmission Mode :
direct driven
Cooling Model :
Air cooling
Power Rating :
7.5 KW To 400 KW
Advanced Design :
Design in Germany
Start :
Delta Start
Driving System :
protection system
Inlet Pressure :
Atmospheric Pressure
Description
Product Overview

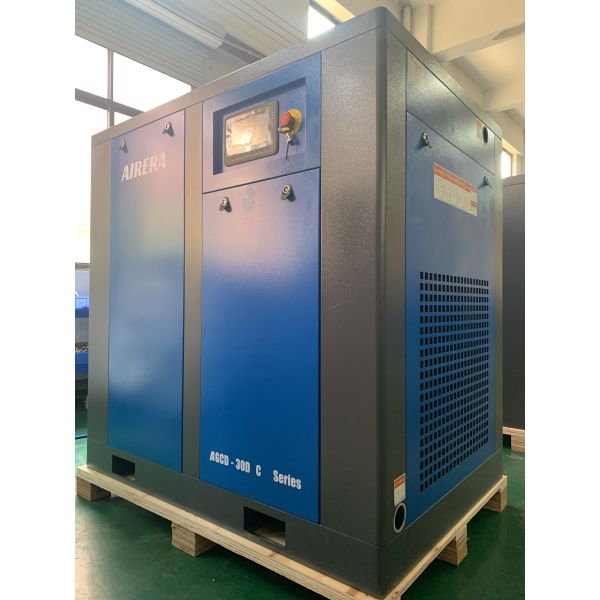

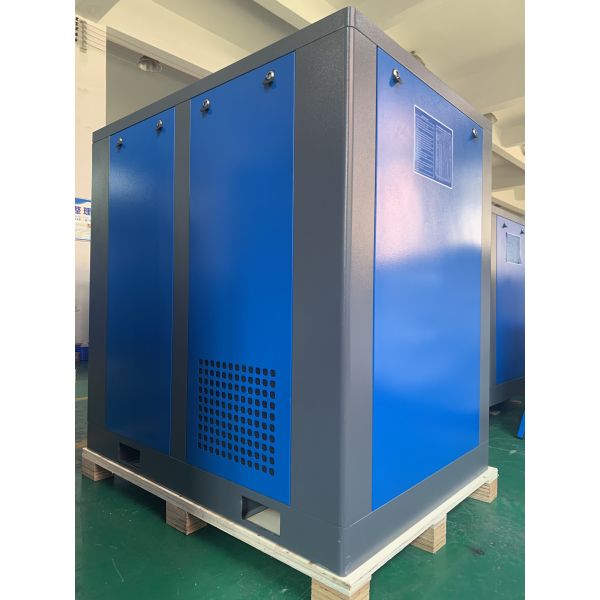

The AIRERA AGCD-30D C is a 30kW industrial screw air compressor engineered for consistent and reliable compressed air production in factory environments. Built with a high-efficiency direct drive system, this model delivers stable pressure output, reduced transmission loss, and improved mechanical durability. It is ideal for manufacturing facilities requiring continuous compressed air supply. The fixed-speed configuration ensures dependable performance under steady load conditions, making it a cost-effective solution for many industrial applications.
Key Features
  • High-Efficiency Direct Drive System
    Minimizes power transmission loss and improves mechanical reliability.
  • Premium Airend Design
    Optimized rotor structure enhances compression efficiency and extends service life.
  • Stable Pressure Output
    Designed for consistent air demand environments.
  • Intelligent Control Panel
    Provides real-time operating data, safety protection, and maintenance reminders.
  • Durable Cooling System
    High-performance air cooling ensures stable operation even under heavy load.
  • Compact Industrial Structure
    Space-saving design suitable for workshops and production plants.
220V-440V 3-5bar Low Pressure Screw Air Compressor 30kW Direct Drive Screw Compressor
Technical Specifications
Technical Data of AIRERA low pressure Dual Stage Screw Air Compressor
ITEM UNIT MODEL AGCD-30/4.0-C-G MODEL AGCD-30/5.0-C-G
Capacity (f.a.d.) at gauged pressure m³/min 6.98 6.94
Max. working pressure MPa 0.4 0.5
Compressor type Two stage oil inject screw compressor
Cooling type Air cooling
Driven type Direct driven
Inlet status - Temperature ℃ ≤45
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity ≤90%
Cooling air flow m³/hr 9200
Control mode Intelligent controller
Safety valve set pressure MPa 0.44 0.55
Lubricating oil volume L 24
Lubricating oil brand ROTORCOMP
Compressed air discharge temperature ℃ Ambient temperature＋10
Residual oil content ppm ≤3
Drive rotor speed rpm 2940
Main Motor - Rated Power KW 30
Main Motor - Type Fix speed
Main Motor - Speed rpm 2940
Main Motor - Service factor 1.2
Main Motor - Protection type IP55
Main Motor - Insulation class ISO F
Main Motor - Efficiency IE3
Main Motor - Startup mode ʏ-Δ starting
Main Motor - Voltage V 380
Main Motor - Frequency Hz 50
Main Motor - Rated current A 54.89
Fan Motor - Rated Power KW 0.55
Fan Motor - Type Fix speed
Fan Motor - Speed rpm 1480
Fan Motor - Protection type IP55
Fan Motor - Insulation class ISO F
Fan Motor - Startup mode Direct starting
Fan Motor - Voltage V 380
Fan Motor - Frequency Hz 50
Section of electrical cable mm² 4 * 25
Recommended HRC fuse A 80
Recommended Air breaker A 125
Sound level dB(A) ≤70
Compressed air outlet connection DN50
Dimension (L*W*H) mm 2000*1450*1650
Net Weight kg 2100
1 acc. to ISO 1217 Annex C
2 acc. to DIN EN ISO 2151:2009
We reserve our right to change this spec without notice
220V-440V 3-5bar Low Pressure Screw Air Compressor 30kW Direct Drive Screw Compressor
Applications
  • Automotive workshops
  • Metal fabrication
  • Wood processing factories
  • Packaging production lines
  • General manufacturing plants
This model is especially suitable for facilities with stable air consumption and long operating hours.
Frequently Asked Questions
What is the difference between fixed speed and variable speed?
Fixed-speed compressors operate at constant motor speed and are ideal for stable air demand environments.
Is direct drive better than belt drive?
Yes. Direct drive reduces transmission loss and improves long-term durability.
Can it operate 24 hours continuously?
Yes, it is designed for continuous industrial use.
Is this model cost-effective?
Yes. It offers a lower initial investment compared to variable speed models.
