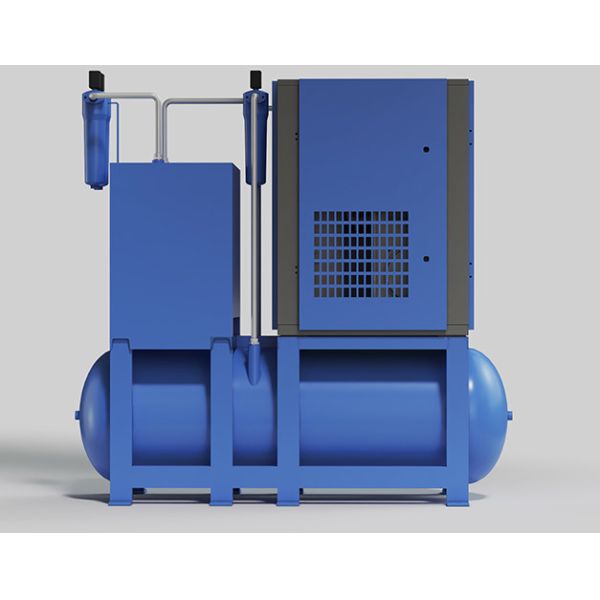

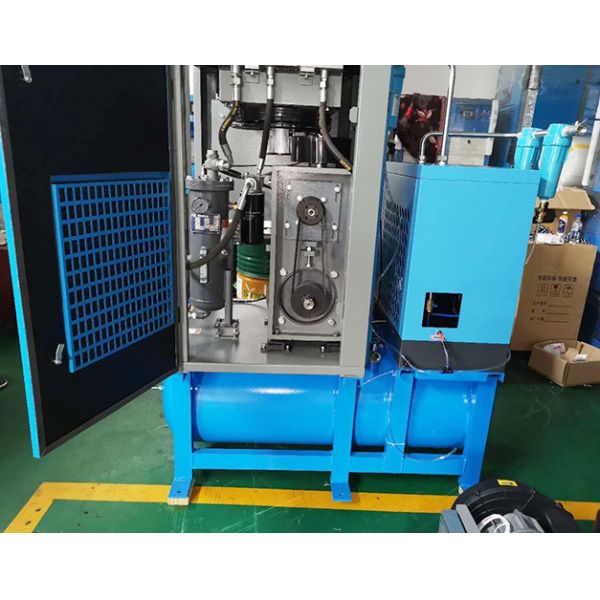

7.5KW To 37KW Tank-Mounted Screw Air Compressor AGSD all-ine-one solution
7.5KW To 37KW Tank-Mounted Screw Air Compressor AGSD all-ine-one solution
7.5KW To 37KW Tank-Mounted Screw Air Compressor AGSD all-ine-one solution
7.5KW To 37KW Tank-Mounted Screw Air Compressor AGSD all-ine-one solution
7.5KW To 37KW Tank-Mounted Screw Air Compressor AGSD all-ine-one solution
7.5KW To 37KW Tank-Mounted Screw Air Compressor AGSD all-ine-one solution
7.5KW To 37KW Tank-Mounted Screw Air Compressor AGSD all-ine-one solution
7.5KW To 37KW Tank-Mounted Screw Air Compressor AGSD all-ine-one solution
7.5KW To 37KW Tank-Mounted Screw Air Compressor AGSD all-ine-one solution
7.5KW To 37KW Tank-Mounted Screw Air Compressor AGSD all-ine-one solution
7.5KW To 37KW Tank-Mounted Screw Air Compressor AGSD all-ine-one solution
7.5KW To 37KW Tank-Mounted Screw Air Compressor AGSD all-ine-one solution
Specifications
Place of Origin :
made in China
Brand Name :
AIRERA
MOQ :
1 unit
Price :
520-30,000 USD
Packaging Details :
According to international standards
Delivery Time :
3-30 days
Payment Terms :
TT/LC
Supply Ability :
2,000-3,000 per month
Condition :
New Screw Air Compressor
Noise :
78dB
Cooling :
Air or Water Cooled
Power Supply :
220/380/415//440V 50/60Hz 3Ph
Size :
1540*920*1240mm
Cooling Method :
Air or Water Cooled
Colour :
Blue
Transmission Mode :
direct driven
Cooling Model :
Air cooling
Power Rating :
5.5 KW To 37 KW
Advanced Design :
Design in Germany
Start :
Delta Start
Driving System :
protection system
Inlet Pressure :
Atmospheric Pressure
Description
Tank-Mounted Compressor AGSD-E Series
Tank Mounted Air Screw Compressor
A historical well-known manufacturer producing quality screw compressors and high pressure compressors with ISO, TUV, and CE certifications. Features patented unique design, exceptional energy efficiency, and reliable compressor systems for all types of industrial projects. Backed by 5-year warranty and competitive pricing.
7.5KW To 37KW Tank-Mounted Screw Air Compressor AGSD all-ine-one solution
AGSD Integrated Compressor with EVO Series German Main Engine
Advanced EVO® technology delivers superior performance and reliability:
  • New ROLLING PROFILE® - ultimate efficiency with reduced noise
  • Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILE®
  • Wide operating pressure range from 5 to 15 barg
  • High manufacturer assembling - "Made in Germany" quality
  • Quality assurance - bench test of every air end before factory departure
  • Easy application selection with ROTORCOMP® SIZING AIR Software
  • Highest flexibility for package design
  • Suitable for all types of motors
7.5KW To 37KW Tank-Mounted Screw Air Compressor AGSD all-ine-one solution
EVO Air End Features
World-leading Rotorcomp Screw Air Compressor in unique design with superior performance:
  • Ultimate efficiency and reduced noise operation
  • High volumetric output due to reduced internal leakage
  • Thermally optimized oil injection system
  • Improved suction port efficiency with reduced internal losses
  • Optimized torque characteristics and reduced internal friction
  • Improved outlet port with lower pressure losses
  • Reduced noise and low vibration through smooth rolling rotors
  • Optimized outlet port design
Technical Specifications
Model Capacity (m³/min)* Power (kW) In/Outlet Noise dB(A)** Dimension (L*W*H mm) Weight (kg) Tank (L)
8bar | 10bar | 13bar | 15bar Motor | Motor(Fan)
AGSD-5.5 0.87 | 0.75 | 0.61 | 0.53 5.5 | 0.09 G1 69 900*750*900 245 300
AGSD-7.5 1.2 | 1.04 | 0.9 | 0.8 7.5 | 0.09 G1 69 900*750*900 250 300
AGSD-11 1.79 | 1.58 | 1.32 | 1.17 11 | 0.18 G1 70 950*800*1290 370 300
AGSD-15 2.4 | 2.15 | 1.84 | 1.66 15 | 0.18 G1 70 950*800*1290 480 300
AGSD-18.5 3 | 2.9 | 2.52 | 2.02 18.5 | 0.37 G1 71 1250*960*1300 730 300
AGSD-22 3.51 | 3.16 | 2.71 | 2.45 22 | 0.37 G1 71 1250*960*1300 750 300
Additional Information
  • OEM & ODM service available
  • 220-450V/3/50-60Hz single & dual voltage customization accepted
  • VSD & PM VSD type (optional)
  • 2 years warranty for compressor, 5 years warranty for air end
  • ISO, CE, TUV, GA, SGS certificates
