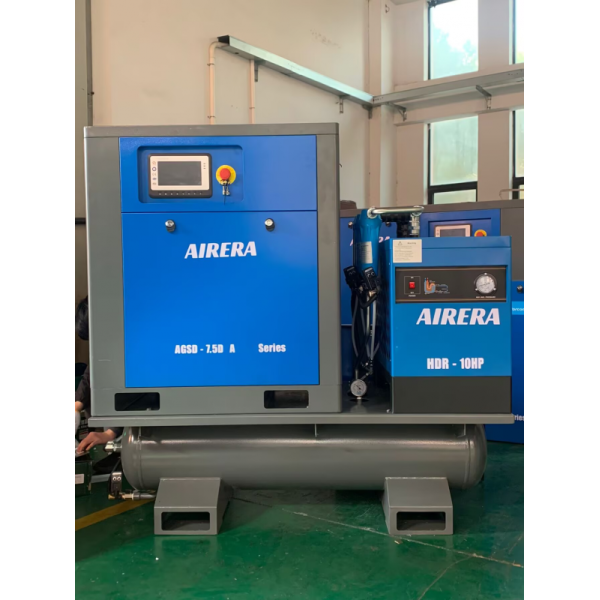

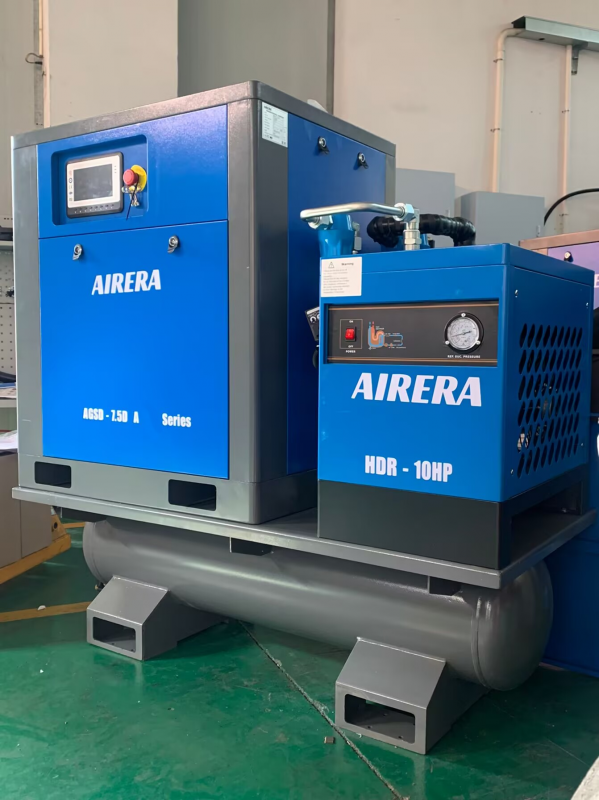

AIRERA AGSD-7.5D A 7.5kW Screw Air Compressor with Tank Mounted
AIRERA AGSD-7.5D A 7.5kW Screw Air Compressor with Tank Mounted
AIRERA AGSD-7.5D A 7.5kW Screw Air Compressor with Tank Mounted
AIRERA AGSD-7.5D A 7.5kW Screw Air Compressor with Tank Mounted
AIRERA AGSD-7.5D A 7.5kW Screw Air Compressor with Tank Mounted
AIRERA AGSD-7.5D A 7.5kW Screw Air Compressor with Tank Mounted
AIRERA AGSD-7.5D A 7.5kW Screw Air Compressor with Tank Mounted
AIRERA AGSD-7.5D A 7.5kW Screw Air Compressor with Tank Mounted
AIRERA AGSD-7.5D A 7.5kW Screw Air Compressor with Tank Mounted
AIRERA AGSD-7.5D A 7.5kW Screw Air Compressor with Tank Mounted
AIRERA AGSD-7.5D A 7.5kW Screw Air Compressor with Tank Mounted
AIRERA AGSD-7.5D A 7.5kW Screw Air Compressor with Tank Mounted
Specifications
Brand Name :
AIRERA
Model Number :
AGSD-7.5D A
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
520-30,000 USD
Payment Terms :
L/C,T/T
Supply Ability :
2,000-3,000 per month
Description
Product Overview

The AIRERA AGSD-7.5D A is a 7.5kW tank mounted rotary screw air compressor designed for workshops and light industrial facilities that require a complete, space-saving compressed air solution.

Featuring an integrated receiver tank and direct drive system, this all-in-one unit delivers stable compressed air with minimal installation requirements. Simply connect power and start operating – no complex piping or separate tank installation needed.

Perfect for automotive repair shops, small manufacturing facilities, and maintenance workshops, the AGSD-7.5D A combines reliable performance with compact footprint and easy installation.

AIRERA AGSD-7.5D A 7.5kW Screw Air Compressor with Tank Mounted

Key Features
  • Integrated Tank Mounted Design
    Complete solution with compressor and receiver tank in one unit, saving floor space and eliminating separate tank installation.
  • Direct Drive System
    Eliminates belts and pulleys for higher transmission efficiency and reduced maintenance requirements.
  • High Efficiency Screw Airend
    Precision engineered rotors provide continuous compressed air with low pulsation and high reliability.
  • Low Noise Operation
    Advanced soundproofing keeps noise levels low for comfortable workshop installation.
  • Plug and Play Installation
    Pre-wired and pre-tested, ready for immediate operation after power connection.
  • Intelligent Controller
    Digital display allows real time monitoring of pressure, temperature and maintenance alerts.

AIRERA AGSD-7.5D A 7.5kW Screw Air Compressor with Tank Mounted

Technical Parameters
Technical Data of Rotorcomp LGSD(C) series Screw Air Compressor
ITEM UNIT MODEL
AGSD-7.5
Compressor
¹ Capacity (f.a.d.) at gauged pressure m3/min 1.2 1.15 1
Max. working pressure MPa 0.7 0.8 1
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Direct driven
Inlet status Temperature ℃ ≤45
Pressure MPa Atmospheric pressure
Relative humidity
≤90%
Cooling air flow m3/hr 4800
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77 0.88 1.1
Lubricating oil volume L 7
Lubricating oil brand
ROTORCOMP
Drive rotor speed rpm 2900
Main Motor Rated Power KW 7.5
Type
Fix speed
Speed rpm 2900
Service factor
1.2
Protection type
IP55
Insulation class ISO F
Efficiency
IE3
Startup mode
Direct starting
Voltage(Special on request) V 380
Frequency(Special on request) Hz 50
Rated current A 14.37
Fan Motor Rated Power KW 0.12
Type
Fix speed
Speed rpm 1400
Protection type
IP55
Insulation class ISO F
Startup mode
Direct starting
Voltage(Special on request) V 380
Frequency(Special on request) Hz 50

AIRERA AGSD-7.5D A 7.5kW Screw Air Compressor with Tank Mounted

FAQ
Q1: What are the advantages of a tank mounted compressor?
Tank mounted compressors save floor space, reduce installation time and cost, and provide a complete ready-to-use solution without requiring separate tank purchase and piping.
Q2: Is this compressor suitable for continuous operation?
Yes. The AGSD-7.5D A is designed for reliable performance in workshop environments with typical duty cycles.
Q3: What pressure options are available?
This model can be configured for 8 bar or 10 bar working pressure based on your application requirements.
Q4: How much maintenance does it require?
Routine maintenance includes regular air filter and oil filter changes. The direct drive design eliminates belt replacements.
Q5: Can voltage be customized for different countries?
Yes. Voltage and frequency can be customized according to destination country requirements.
