2-50bar Small Compressed Air Dryer ISO TS16949 Refrigerated Dryer
2-50bar Small Compressed Air Dryer ISO TS16949 Refrigerated Dryer
2-50bar Small Compressed Air Dryer ISO TS16949 Refrigerated Dryer
2-50bar Small Compressed Air Dryer ISO TS16949 Refrigerated Dryer
2-50bar Small Compressed Air Dryer ISO TS16949 Refrigerated Dryer
2-50bar Small Compressed Air Dryer ISO TS16949 Refrigerated Dryer
2-50bar Small Compressed Air Dryer ISO TS16949 Refrigerated Dryer
2-50bar Small Compressed Air Dryer ISO TS16949 Refrigerated Dryer
2-50bar Small Compressed Air Dryer ISO TS16949 Refrigerated Dryer
2-50bar Small Compressed Air Dryer ISO TS16949 Refrigerated Dryer
Specifications
MOQ :
1 unit
Price :
520-20,000 USD
Payment Terms :
TT/LC
Supply Ability :
2,000-3,000 per month
Delivery Time :
3-30 days
Packaging Details :
According to international standards
Place of Origin :
made in China
Brand Name :
AIRERA
UNIT :
HDR-020HP
Cooling type :
Air cooling
Dimension :
800×450×720
Net Weight :
55kg
¹ Volume flow :
2.6
Control mode :
Intelligent controller
Pressure :
2-50bar
Air Flow :
1.0-500m3/min
Certifiion :
ISO/TS16949:9001
Applications :
Industrial compressed air systems, pneumatic tools, instrumentation
Color :
white black
Marketing Type :
Ordinary Product
Power Source :
AC POWER
Local Service Location :
None
Max Inlet Pressure :
10bars (could be customised)
Size :
Standard size, OEM Size
Oe No :
1391510, T200W
Oem No :
9325000060
Description

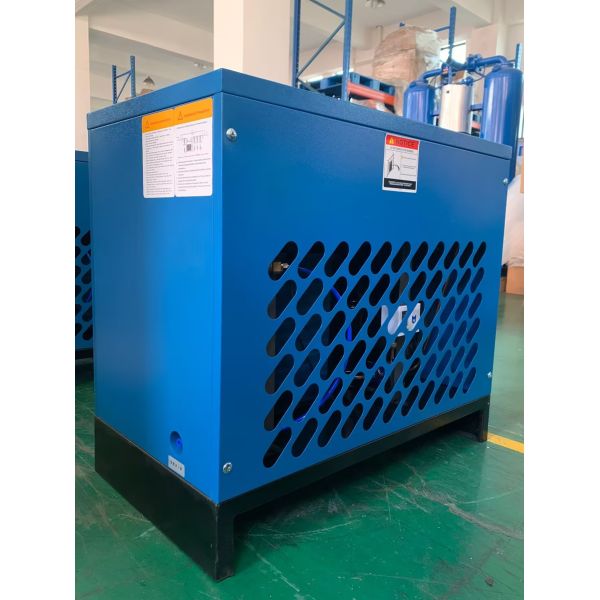

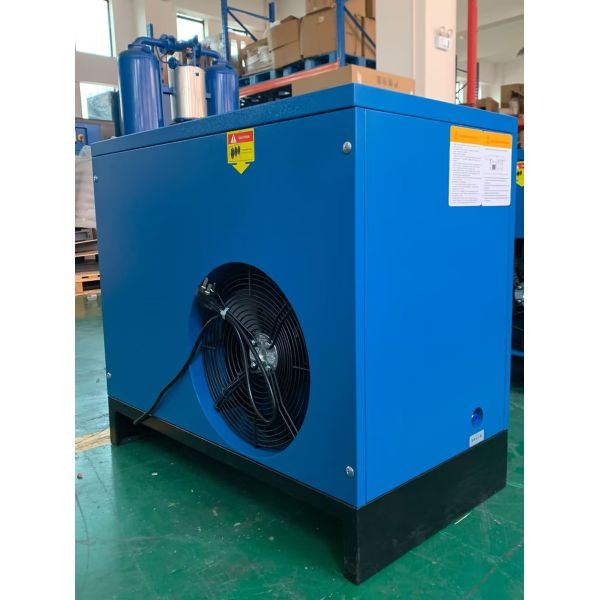

AIRERA HDR-20HP Refrigerated Air Dryer | Compact & Efficient Compressed Air Drying
Product Overview
The AIRERA HDR-20HP Refrigerated Air Dryer provides efficient and dependable moisture removal for compressed air systems, protecting equipment and maintaining consistent air quality. By reducing water vapor and preventing condensation, this dryer safeguards pipelines, pneumatic tools, and production machinery from corrosion and premature wear.
Featuring a compact structure, energy-efficient refrigeration system, and user-friendly controls, the HDR-20HP is easy to install and operate—making it an ideal drying solution for small to medium-sized industrial applications. Reliable, efficient, and cost-effective, AIRERA ensures your compressed air stays clean and dry.
2-50bar Small Compressed Air Dryer ISO TS16949 Refrigerated Dryer
Key Features & Benefits
  • Efficient Moisture Removal: Quickly eliminates water vapor to improve compressed air quality
  • Stable Dew Point Performance: Maintains consistent drying results to support smooth production
  • Compact & Space-Saving Design: Ideal for facilities with limited installation space
  • Energy-Efficient Operation: Optimized refrigeration components help reduce power consumption
  • Easy Installation: Plug-and-play design simplifies system integration
  • Reliable Protection: Helps prevent rust, scale buildup, and equipment damage
2-50bar Small Compressed Air Dryer ISO TS16949 Refrigerated Dryer
Technical Specifications
ITEM UNIT MODEL HDR-020HP
Volume flow Nm³/min 2.6
Permissible operating pressure, maximum Mpa 1.05
Pressure dew point °C 2-10
Permissible compressed air temperature (min...max) °C 2-80
Environment status - Temperature ℃ ≤45
Environment status - Relative humidity ≤90%
Cooling type Air cooling
Cooling water requirement m³/hr /
Cooling water pressure Mpa /
Control mode Intelligent controller
Refrigerants (Special on request) R22/R407C/R410A
Pressure drop Mpa 0.02
Refrigeration compressor power HP 1.0
Rated fan power Kw 0.12
Power supply - Voltage (Special on request) V 220
Power supply - Phase 1
Power supply - Frequency (Special on request) Hz 50
Drain type Electrical
Section of electrical cable mm² 3 * 2.5
Recommended HRC fuse A 16
Recommended Air breaker A 25
Sound level dB(A) ≤60
Compressed air inlet & outlet connection RP1
Dimension (L*W*H) mm 800*450*720
Net Weight kg 55
Typical Applications
Manufacturing Workshops, Automotive Repair Shops, Packaging Lines, Woodworking Facilities, Textile Production, General Industrial Use
Frequently Asked Questions
Why do I need a refrigerated air dryer?
Moisture in compressed air can damage equipment, reduce product quality, and increase maintenance costs.
Is the HDR-20HP suitable for small factories?
Yes. It is specifically designed for small and medium compressed air systems.
Does the dryer require frequent maintenance?
No. The system is designed for reliable operation with minimal upkeep.
Can it be paired with any air compressor?
Yes. It is compatible with most rotary screw compressors within its capacity range.
Is customization available?
AIRERA supports customized voltage and configuration for global customers.
