220V 1Ph 50Hz 5HP Refrigerated Air Dryer For Air Compressor
220V 1Ph 50Hz 5HP Refrigerated Air Dryer For Air Compressor
220V 1Ph 50Hz 5HP Refrigerated Air Dryer For Air Compressor
220V 1Ph 50Hz 5HP Refrigerated Air Dryer For Air Compressor
220V 1Ph 50Hz 5HP Refrigerated Air Dryer For Air Compressor
220V 1Ph 50Hz 5HP Refrigerated Air Dryer For Air Compressor
220V 1Ph 50Hz 5HP Refrigerated Air Dryer For Air Compressor
220V 1Ph 50Hz 5HP Refrigerated Air Dryer For Air Compressor
220V 1Ph 50Hz 5HP Refrigerated Air Dryer For Air Compressor
220V 1Ph 50Hz 5HP Refrigerated Air Dryer For Air Compressor
Specifications
Brand Name :
AIRERA
Model Number :
HDR-5HP
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
520-20,000 USD
Packaging Details :
According to international standards
Delivery Time :
3-30 days
Payment Terms :
TT/LC
Supply Ability :
2,000-3,000 per month
Pressure :
2-50bar
Air Flow :
1.0-500m3/min
Certifiion :
ISO/TS16949:9001
Applications :
Industrial compressed air systems, pneumatic tools, instrumentation
Color :
white black
Marketing Type :
Ordinary Product
Power Source :
AC POWER
Local Service Location :
None
Max Inlet Pressure :
10bars (could be customised)
Size :
Standard size, OEM Size
Oe No :
1391510, T200W
Oem No :
9325000060
Description

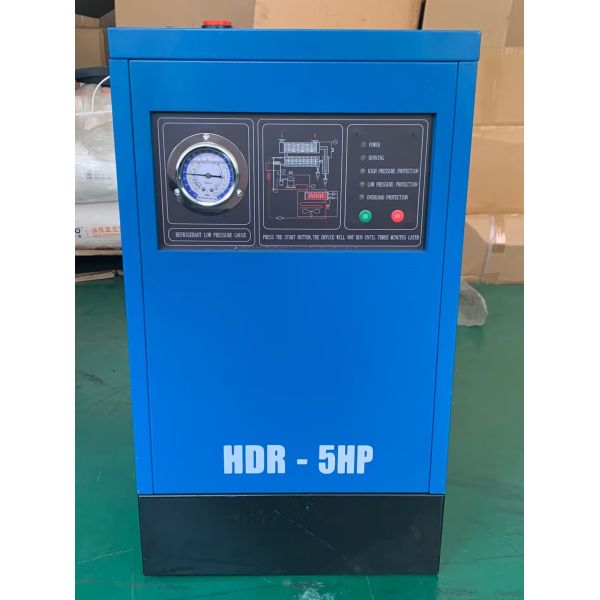

AIRERA HDR-5HP Refrigerated Air Dryer
The AIRERA HDR-5HP refrigerated air dryer delivers reliable moisture removal for industrial compressed air systems. Compact design, energy efficiency, and stable dew point ensure consistent air quality for small to medium industrial applications.
Product Overview
The AIRERA HDR-5HP Refrigerated Air Dryer provides clean, dry compressed air by efficiently removing moisture from the air stream. This protects downstream equipment, reduces maintenance costs, and improves overall production reliability.
With a compact footprint and energy-efficient refrigeration system, the HDR-5HP offers stable dew point performance while minimizing operational expenses. It is an ideal solution for workshops, manufacturing lines, automotive facilities, and general industrial environments requiring dependable air quality.
220V 1Ph 50Hz 5HP Refrigerated Air Dryer For Air Compressor
Technical Specifications
Parameter Unit HDR-5HP
Air Flow Capacity m³/min 0.6 - 0.8
Working Pressure MPa ≤1.0
Pressure Dew Point °C 2 - 10
Inlet Air Temperature °C ≤45
Ambient Temperature °C ≤38
Cooling Method -- Air Cooling
Refrigerant -- R134a (Eco-friendly)
Heat Exchanger -- High-efficiency Aluminum Alloy
Power Supply V/Ph/Hz 220V / 1Ph / 50Hz (Customizable)
Rated Power kW 0.35
Air Connection -- G1"
Noise Level dB(A) ≤52
Dimension (L*W*H) mm 700 * 450 * 680
Net Weight kg 48
Key Features
  • High-efficiency heat exchanger for optimal moisture separation
  • Stable pressure dew point for consistent air quality
  • Compact structure for easy installation
  • Low energy consumption to reduce operating costs
  • Intelligent control system for reliable operation
  • Durable components designed for long service life
220V 1Ph 50Hz 5HP Refrigerated Air Dryer For Air Compressor
Frequently Asked Questions
Why is a refrigerated air dryer essential?
It removes water vapor from compressed air, preventing corrosion, product defects, and equipment damage.
What industries is the HDR-5HP suitable for?
Ideal for manufacturing, automotive workshops, packaging, electronics, and general industrial use.
Does it help reduce maintenance costs?
Yes. Dry air protects pneumatic tools and machinery, significantly lowering repair frequency.
Is the unit energy efficient?
The optimized refrigeration system balances strong drying performance with low power consumption.
Can it operate continuously in industrial environments?
Absolutely. It is engineered for stable, long-term operation under demanding conditions.
220V 1Ph 50Hz 5HP Refrigerated Air Dryer For Air Compressor
