10HP Small Refrigerated Air Dryer Refrigerant Type 1.0-500m3/Min
10HP Small Refrigerated Air Dryer Refrigerant Type 1.0-500m3/Min
10HP Small Refrigerated Air Dryer Refrigerant Type 1.0-500m3/Min
10HP Small Refrigerated Air Dryer Refrigerant Type 1.0-500m3/Min
10HP Small Refrigerated Air Dryer Refrigerant Type 1.0-500m3/Min
10HP Small Refrigerated Air Dryer Refrigerant Type 1.0-500m3/Min
10HP Small Refrigerated Air Dryer Refrigerant Type 1.0-500m3/Min
10HP Small Refrigerated Air Dryer Refrigerant Type 1.0-500m3/Min
10HP Small Refrigerated Air Dryer Refrigerant Type 1.0-500m3/Min
10HP Small Refrigerated Air Dryer Refrigerant Type 1.0-500m3/Min
Specifications
Brand Name :
AIRERA
Model Number :
HDR-10HP
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
520-20,000 USD
Payment Terms :
TT/LC
Supply Ability :
2,000-3,000 per month
Delivery Time :
3-30 days
Packaging Details :
According to international standards
Pressure :
2-50bar
Air Flow :
1.0-500m3/min
Certifiion :
ISO/TS16949:9001
Applications :
Industrial compressed air systems, pneumatic tools, instrumentation
Color :
white black
Marketing Type :
Ordinary Product
Power Source :
AC POWER
Local Service Location :
None
Max Inlet Pressure :
10bars (could be customised)
Size :
Standard size, OEM Size
Oe No :
1391510, T200W
Oem No :
9325000060
Description

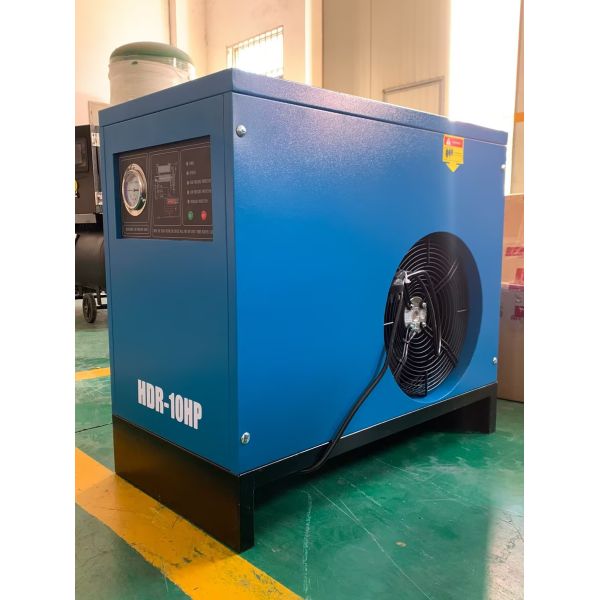

AIRERA HDR-10HP Refrigerated Air Dryer
High Efficiency Compressed Air Drying Solution engineered to deliver clean, dry compressed air by efficiently removing moisture from pneumatic systems. Designed for reliability and energy efficiency, it protects downstream equipment from corrosion, contamination, and unexpected downtime.
Product Overview
With stable pressure dew point and advanced heat exchange technology, the HDR series ensures consistent drying performance even under demanding operating conditions. The compact structure allows for easy installation while maintaining powerful drying capacity. Ideal for manufacturing, automotive workshops, electronics production, and general industrial applications.
Key Features
  • Stable Dew Point Performance: Maintains pressure dew point between 2-10°C, effectively preventing condensation and moisture-related damage
  • Energy-Efficient Operation: Optimized refrigeration system reduces power consumption while ensuring continuous drying performance
  • High-Efficiency Heat Exchanger: Advanced aluminum alloy heat exchanger improves thermal transfer and enhances overall system efficiency
  • Intelligent User-Friendly Design: Simple controls and low-maintenance components reduce operational complexity
  • Compact Footprint: Space-saving design enables quick integration into existing compressed air systems
  • Reliable Industrial Construction: Built with durable components to ensure long service life in demanding environments
10HP Small Refrigerated Air Dryer Refrigerant Type 1.0-500m3/Min
Technical Specifications
ITEM UNIT MODEL HDR-010HP
Volume flow Nm³/min 1.5
Permissible operating pressure, maximum Mpa 1.05
Pressure dew point °C 2-10
Permissible compressed air temperature (min...max) °C 2-80
Environment status - Temperature ℃ ≤45
Environment status - Relative humidity ≤90%
Cooling type Air cooling
Control mode Intelligent controller
Refrigerants (Special on request) R134A
Pressure drop Mpa 0.02
Refrigeration compressor power HP 0.75
Rated fan power Kw 0.09
Power supply - Voltage (Special on request) V 220
Power supply - Phase 1
Power supply - Frequency (Special on request) Hz 50
Drain type Electrical
Section of electrical cable mm² 3 * 2.5
Recommended HRC fuse A 16
Recommended Air breaker A 25
Sound level dB(A) ≤60
Compressed air inlet & outlet connection RP1
Dimension (L*W*H) mm 730*400*740
Net Weight kg 50
Applications
  • Manufacturing
  • Automotive Industry
  • Food & Beverage
  • Textile Production
  • Electronics
  • General Industrial Facilities
10HP Small Refrigerated Air Dryer Refrigerant Type 1.0-500m3/Min
Frequently Asked Questions
Why is a refrigerated air dryer important?
Moisture in compressed air can cause corrosion, damage pneumatic tools, and reduce product quality. A refrigerated dryer ensures clean and dry air for stable operations.
What dew point does the HDR-10HP provide?
It maintains a pressure dew point of 2-10°C, suitable for most industrial applications.
Is the dryer energy efficient?
Yes. The optimized refrigeration circuit minimizes energy consumption while maintaining consistent drying performance.
Can AIRERA customize voltage?
Absolutely. Voltage and frequency can be customized to meet regional electrical standards.
Is installation complicated?
Not at all. The compact design allows quick integration into existing compressed air systems.
