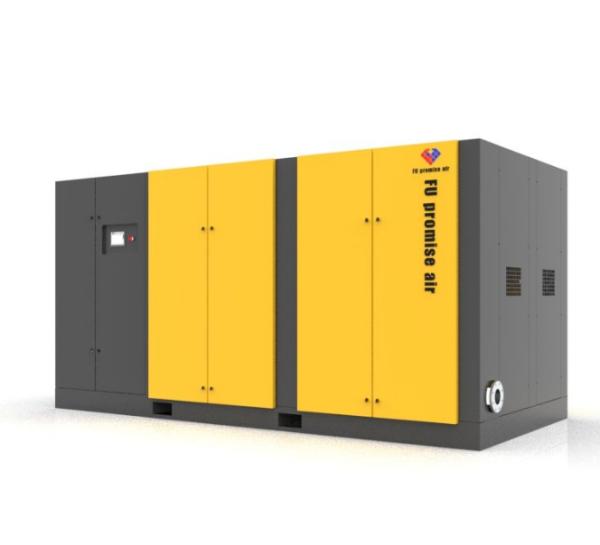

OE-315A-2S Two-Stage Screw Compressor | Extra Large Fixed Flow & DN125 Outlet Connection
OE-315A-2S Two-Stage Screw Compressor | Extra Large Fixed Flow & DN125 Outlet Connection
Specifications
Brand Name :
FU PRO
Model Number :
OE-315A-2S
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
20000-420000CNY
Payment Terms :
50% deposit in advance,balance 50% before shipment
Supply Ability :
Stable bulk supply, long-term orders accepted
Delivery Time :
Standard / Custom Orders: Shipment within 15-25 working days upon receipt of advance payment.
Packaging Details :
Bubble Wrap / Stretch Wrap
Model :
OE-315A-2S Fixed-Speed Two-Stage Screw Compressor
Rated Airflow :
63.86m³/min@6Bar(g),63.23m³/min@8Bar(g),62.59m³/min@10Bar(g),53.98m³/min@13Bar(g)
Outlet :
DN125
Overall Dimension :
4800×2300×2420 mm
Noise Level :
88dB(A)
Net Weight :
10200kg
Application :
Super-heavy industrial park, full-process large coating plant, mass-production giant rubber & plastic industrial complex
Description
OE-315A-2S Two-Stage Screw Air Compressor | Extra Large Fixed Rated Capacity & Multi-Pressure Options

Product Description

OE-315A-2S fixed-speed two-stage screw air compressor has rated airflow:63.86m³/min@6Bar(g),63.23m³/min@8Bar(g),62.59m³/min@10Bar(g),53.98m³/min@13Bar(g). Equipped with DN125 exhaust port, overall dimension 4800×2300×2420mm, net weight 10200kg, noise level 88dB(A). Fully load tested before shipment, widely used for super-heavy machinery park, integrated coating base and giant rubber & plastic industrial park central air supply for bulk export.

Core Selling Paragraph

Four preset standard pressures plus ultra-large steady fixed airflow ensure round-the-clock full-load air demand for huge industrial zones, while standard large-bore DN125 flange and 88dB heavy enclosed cabinet deliver stable piping installation and comply with international industrial noise control standards.

Technical Parameters





Item Specification
Model OE-315A-2S Fixed-Speed Two-Stage Screw Compressor
Rated Airflow 63.86m³/min@6Bar(g),63.23m³/min@8Bar(g),62.59m³/min@10Bar(g),53.98m³/min@13Bar(g)
Outlet DN125
Overall Dimension 4800×2300×2420 mm
Noise Level 88dB(A)
Net Weight 10200kg
Application Super-heavy industrial park, full-process large coating plant, mass-production giant rubber & plastic industrial complex

FAQ

Q1: Suitable working site?

A: Extra-large heavy industrial parks with 24/7 full-load production and enormous air consumption.

Q2: Reducing flange available for DN125?

A: Custom reducer adapters optional without performance loss.

Q3: Can maintenance spare parts ship together?

A: Complete filter kits and special screw lubricant can be loaded in same export container.
