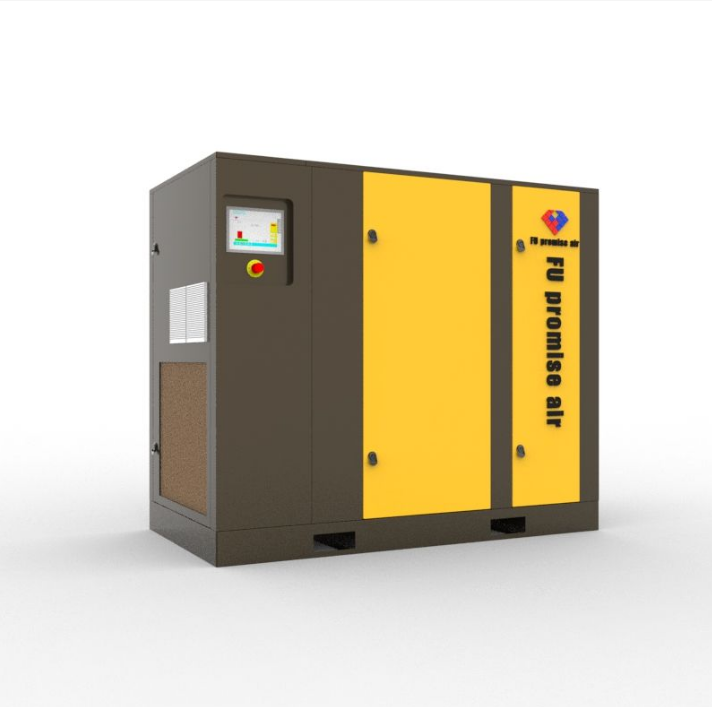

OE‑45APF‑2S, VFD Variable Flow & Compact Frame Structure, 6‑13bar (g) Wide Pressure Range Compressor
OE‑45APF‑2S, VFD Variable Flow & Compact Frame Structure, 6‑13bar (g) Wide Pressure Range Compressor
Specifications
Supply Ability :
Stable bulk supply, long-term orders accepted
Model :
OE‑45APF‑2S
Model Number :
OE‑45APF‑2S
Weight kg :
771
MOQ :
1
Delivery Time :
Standard / Custom Orders: Shipment within 15-25 working days upon receipt of advance payment.
Noise d(BA) :
69
Payment Terms :
50% deposit in advance,balance 50% before shipment
Flow m³/min :
4.18‑9.28(at 6bar(g)); 4.15‑9.23(at 8bar(g)); 4.04‑8.98(at 10bar(g)); 3.26‑7.25(at 13bar(g))
Dimension mm :
190010401695
Price :
20000-420000CNY
Pressure bar(g) :
6; 8; 10; 13
Exhaust Port :
G2
Certification :
CE
Place of Origin :
CHINA
Packaging Details :
Bubble Wrap / Stretch Wrap
Brand Name :
FU PRO
Description

Core Advantages

This OE‑45APF‑2S two‑stage screw air compressor adopts two‑stage compression and VFD variable‑frequency structure. It supports 6bar(g), 8bar(g), 10bar(g) and 13bar(g) working pressures. The corresponding variable flow ranges are 4.18‑9.28m³/min, 4.15‑9.23m³/min, 4.04‑8.98m³/min and 3.26‑7.25m³/min, which can automatically adjust air output according to on‑site air consumption load. It runs at low noise of 69d(BA) to improve workshop working environment. Equipped with G2 standard exhaust port for strong pipeline adaptability. The overall dimension is 190010401695mm and whole‑machine weight is 771kg. With stable body structure, it balances performance and installation space and provides stable and reliable compressed air for various industrial production scenarios.

Product Parameters


Item Value
Model OE‑45APF‑2S
Flow m³/min 4.18‑9.28(at 6bar(g)); 4.15‑9.23(at 8bar(g)); 4.04‑8.98(at 10bar(g)); 3.26‑7.25(at 13bar(g))
Pressure bar(g) 6; 8; 10; 13
Exhaust Port G2
Dimension mm 190010401695
Noise d(BA) 69
Weight kg 771

Product Description

OE‑45APF‑2S two‑stage screw air compressor is industrial VFD two‑stage screw compressor. Two‑stage compression design improves compression efficiency, and VFD drive system realizes adaptive air volume adjustment. It supports four working pressures of 6bar(g), 8bar(g), 10bar(g), 13bar(g), with corresponding variable flow ranges 4.18‑9.28m³/min, 4.15‑9.23m³/min, 4.04‑8.98m³/min, 3.26‑7.25m³/min. It adapts to production conditions with fluctuating air consumption and diversified pressure requirements. Running noise reaches 69d(BA), effectively reducing workshop noise interference. G2 exhaust port supports fast pipeline assembly. It weighs 771kg with dimension 190010401695mm, stable‑running. Widely used in machining, chemical industry, building materials, packaging and other industries requiring large‑flow compressed air.

Q&A

Q1: What working pressure levels does this two‑stage VFD screw air compressor support?

A1: It supports 6bar(g), 8bar(g), 10bar(g) and 13bar(g).
Q2: What is the flow range under each pressure setting?

A2: 4.18‑9.28m³/min at 6bar(g), 4.15‑9.23m³/min at 8bar(g), 4.04‑8.98m³/min at 10bar(g), 3.26‑7.25m³/min at 13bar(g).
Q3: What is the specification of exhaust port?

A3: The exhaust port is G2.
Q4: What are the running noise and whole‑machine weight?

A4: Running noise is 69d(BA), whole‑machine weight is 771kg.
Q5: What is the overall dimension of the unit?

A5: The overall dimension is 190010401695mm.
