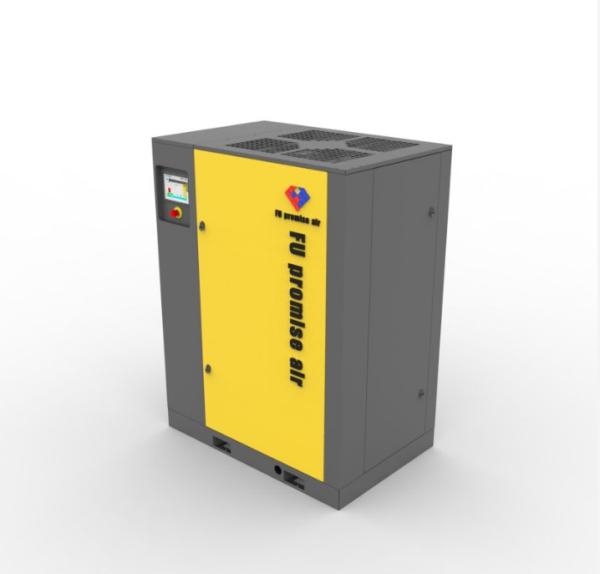

FMI-22AVSD Two Stage VSD Screw Compressor | Wide Variable Airflow Range & Multi Optional Working Pressure
FMI-22AVSD Two Stage VSD Screw Compressor | Wide Variable Airflow Range & Multi Optional Working Pressure
Specifications
Brand Name :
FU PRO
Model Number :
FMI-22AVSD
Certification :
CE
Place of Origin :
CHINA
MOQ :
5 units
Price :
6000-300000
Payment Terms :
1. Standard In-stock Items: 100% payment in advance 2. Non-standard / Non-in-stock Models: 50% deposit in advance,50% balance before shipment
Supply Ability :
With stable bulk supply capacity, we accept long-term orders
Delivery Time :
1. Standard In-stock Models: Shipment within 3-7 working days upon receipt of advance payment and order confirmation 2. Non-standard / Non-in-stock Models: Shipment within 20-30 working days upon receipt of advance payment and order confirmation
Packaging Details :
Bubble Wrap / Stretch Wrap
Model :
FMI-22AVSD
Variable Flow & Pressure :
1.81-6.05m³/min@6/8.5Bar(g),1.28-4.26m³/min@10/12.5Bar(g),1.14-3.69m³/min@13/15.5Bar(g)
Outlet :
G1-1/4'' BSPT
Overall Size :
1350×850×1700 mm
Noise Level :
63dBA
Net Weight :
619kg
Description
FMI-22AVSD Two Stage VSD Screw Air Compressor | Variable Airflow & Multi-Pressure For Variable-Demand Small Workshop

Product Introduction

FMI-22AVSD permanent magnet variable speed two stage screw compressor has adjustable airflow:1.81-6.05m³/min@6/8.5Bar(g),1.28-4.26m³/min@10/12.5Bar(g),1.14-3.69m³/min@13/15.5Bar(g). Equipped with G1-1/4'' BSPT exhaust port, overall dimension 1350×850×1700mm, net weight 619kg and working noise 63dB(A). Full-load aging tested before shipment, widely used for small workshops with fluctuating air consumption for high-efficiency energy-saving bulk export.

Core Selling Paragraph

Two-stage compression plus stepless full-range variable airflow and multiple optional working pressures deliver higher compression efficiency and on-demand air output to cut idle power loss greatly for unstable workshop air demand; standard G1-1/4'' BSPT threaded outlet and 63dB ultra-low-noise enclosed cabinet enable easy pipeline installation and space-saving layout for compact working stations.

Technical Parameter Table

表格



Item Specification
Model FMI-22AVSD
Variable Flow & Pressure 1.81-6.05m³/min@6/8.5Bar(g),1.28-4.26m³/min@10/12.5Bar(g),1.14-3.69m³/min@13/15.5Bar(g)
Outlet G1-1/4'' BSPT
Overall Size 1350×850×1700 mm
Noise Level 63dBA
Net Weight 619kg
Application Small factory with variable air usage, single CNC equipment, bench spray machine, miniature rubber & plastic processing plant

English FAQ

Q1: Can two-stage VSD unit adjust speed automatically for high energy saving?

A: Two-stage compression + PM VSD system adjusts rotating speed per real air load, achieves higher compression efficiency and saves over 28% power during low consumption, supports 24h non-stop continuous operation.

Q2: Is custom reducing adapter available for G1-1/4'' connection?

A: Optional transition fitting is available without any main machine parameter modification to fit existing pipeline.

Q3: What’s installation ambient requirement?

A: Ambient temp 5~42℃, dry ventilated small workshop, keep away from heavy dust and ponding water.

Q4: What are maintenance intervals?

A: First service after 500 running hours, regular maintenance every 2000 working hours afterward.

Q5: Can maintenance spare parts ship together with compressor?

A: Complete filter kits and lubricant can be packed in same export container with full customs documentation.
