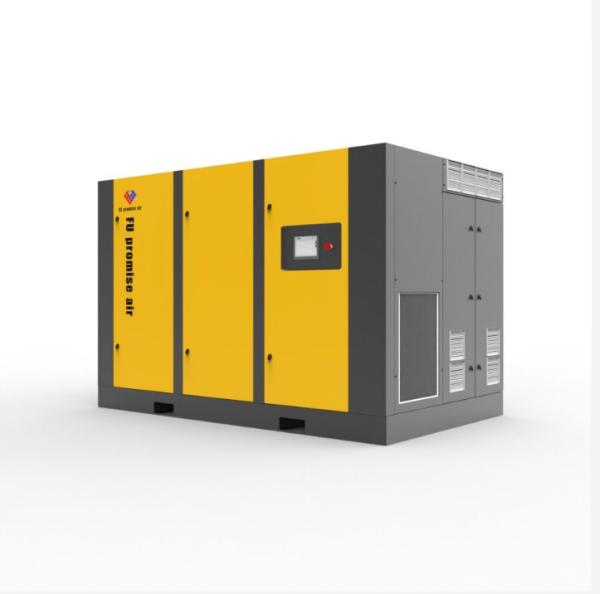

FMI-75A Two Stage Fixed Speed Screw Compressor | Three Fixed Rated Airflow & Multi Optional Working Pressure
FMI-75A Two Stage Fixed Speed Screw Compressor | Three Fixed Rated Airflow & Multi Optional Working Pressure
Specifications
Brand Name :
FU PRO
Model Number :
FMI-75A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
20000-420000CNY
Payment Terms :
50% deposit in advance,balance 50% before shipment
Supply Ability :
Stable bulk supply, long-term orders accepted
Delivery Time :
Standard / Custom Orders: Shipment within 15-25 working days upon receipt of advance payment.
Packaging Details :
Bubble Wrap / Stretch Wrap
Model :
FMI-75A
Fixed Flow & Pressure :
18.14m³/min@6/8.5Bar(g),15.2m³/min@10/12.5Bar(g),11.48m³/min@13/15.5Bar(g)
Outlet :
DN100
Overall Size :
2780×1670×1850 mm
Noise Level :
75dBA
Net Weight :
2560kg
Application :
Large mold industrial park, full-line automatic spray plant, rubber & plastic molding industrial zone, centralized air supply for multi-workshop CNC cluster
Description
FMI-75A Two Stage Screw Air Compressor | Fixed Large Flow & Multi-Pressure Option For Large Industrial Factory Central Air Supply

Product Introduction

FMI-75A fixed-speed two stage screw air compressor has three fixed specs:18.14m³/min@6/8.5Bar(g),15.2m³/min@10/12.5Bar(g),11.48m³/min@13/15.5Bar(g). Equipped with DN100 exhaust port, overall dimension 2780×1670×1850mm, net weight 2660kg and working noise 75dB(A). Full-load aging tested before shipment, widely used for large mold park, full-automatic spray factory, rubber & plastic industrial park and multi-workshop CNC cluster central air supply for high-output durable bulk export.

Core Selling Paragraph

Two-stage compression design plus three fixed rated airflow and multiple optional working pressures deliver higher compression efficiency and large stable air volume to satisfy all-day full-load simultaneous operation of numerous production equipment; large DN100 exhaust connection and 75dB low-noise enclosed cabinet realize fast main pipeline installation and eco-friendly quiet running, heavy-duty reinforced frame withstands long-term non-stop full-load industrial working conditions.

Technical Parameter Table





Item Specification
Model FMI-75A
Fixed Flow & Pressure 18.14m³/min@6/8.5Bar(g),15.2m³/min@10/12.5Bar(g),11.48m³/min@13/15.5Bar(g)
Outlet DN100
Overall Size 2780×1670×1850 mm
Noise Level 75dBA
Net Weight 2560kg
Application Large mold industrial park, full-line automatic spray plant, rubber & plastic molding industrial zone, centralized air supply for multi-workshop CNC cluster

English FAQ

Q1: Can this heavy-duty two-stage fixed-speed unit run 24h full-load continuously?

A: It passes full-load endurance aging test, precision two-stage rotor and heavy reinforced frame ensure non-stop stable air output under long full-load working.

Q2: Is custom reducing flange available for DN100 connection?

A: Optional transition flange is available without main machine parameter modification to fit existing industrial pipeline.

Q3: What’s installation ambient requirement?

A: Ambient temp 5~42℃, spacious ventilated large factory, keep away from heavy dust and ponding area.

Q4: What are maintenance intervals?

A: First service after 500 running hours, regular maintenance every 2000 working hours afterward.

Q5: Can maintenance spare parts ship together with compressor?

A: Complete filter kits and lubricant can be packed in same export container with full customs documentation.
