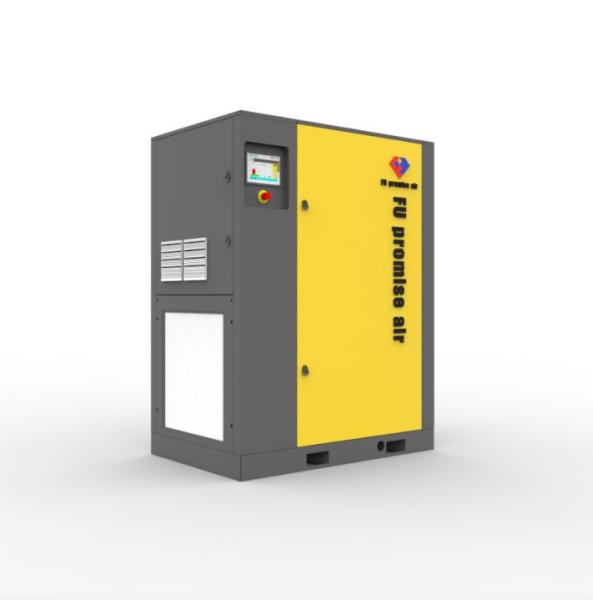

Two Stage Air Compressor FMI-22A | G1-1/4'' BSPT Outlet & 63dB Low Noise Stable Running Performance
Two Stage Air Compressor FMI-22A | G1-1/4'' BSPT Outlet & 63dB Low Noise Stable Running Performance
Specifications
Brand Name :
FU PRO
Model Number :
FMI-22A
Certification :
CE
Place of Origin :
CHINA
MOQ :
5 units
Price :
6000-300000
Payment Terms :
1. Standard In-stock Items: 100% payment in advance 2. Non-standard / Non-in-stock Models: 50% deposit in advance,50% balance before shipment
Supply Ability :
With stable bulk supply capacity, we accept long-term orders
Delivery Time :
1. Standard In-stock Models: Shipment within 3-7 working days upon receipt of advance payment and order confirmation 2. Non-standard / Non-in-stock Models: Shipment within 20-30 working days upon receipt of advance payment and order confirmation
Packaging Details :
Bubble Wrap / Stretch Wrap
Model :
FMI-22A
Fixed Flow & Pressure :
5.73m³/min@6/8.5Bar(g),4.19m³/min@10/12.5Bar(g),3.37m³/min@13/15.5Bar(g)
Outlet :
G1-1/4'' BSPT
Overall Size :
1350×850×1700 mm
Noise Level :
63dBA
Net Weight :
588kg
Description
FMI-22A Two Stage Screw Air Compressor | Fixed Rated Flow & Multi-Pressure Option For Small Industrial Workshop

Product Introduction

FMI-22A fixed-speed two stage screw air compressor has three fixed specs:5.73m³/min@6/8.5Bar(g),4.19m³/min@10/12.5Bar(g),3.37m³/min@13/15.5Bar(g). Equipped with G1-1/4'' BSPT exhaust port, overall dimension 1350×850×1700mm, net weight 588kg and working noise 63dB(A). Full-load aging tested before shipment, widely used for small hardware workshop, bench spray equipment, tiny rubber & plastic factory and single CNC machine matching for cost-effective bulk export.

Core Selling Paragraph

Two-stage compression design plus three fixed rated airflow and multiple optional working pressures deliver higher compression efficiency and stable air pressure to meet all-day regular production demand of small workshops; standard G1-1/4'' BSPT threaded outlet and 63dB low-noise enclosed cabinet realize easy pipe fitting and space-saving installation for compact working stations.

Technical Parameter Table





Item Specification
Model FMI-22A Fixed Speed Two Stage Screw Compressor
Fixed Flow & Pressure 5.73m³/min@6/8.5Bar(g),4.19m³/min@10/12.5Bar(g),3.37m³/min@13/15.5Bar(g)
Outlet G1-1/4'' BSPT
Overall Size 1350×850×1700 mm
Noise Level 63dBA
Net Weight 588kg
Application Small hardware workshop, bench-top spray machine, miniature rubber & plastic plant, single CNC equipment air supply

English FAQ

Q1: Can this compact two-stage fixed-speed unit run 24h non-stop continuously?

A: It passes full-load endurance aging test, precision two-stage rotor ensures long-term uninterrupted stable air output.

Q2: Is custom reducing adapter available for G1-1/4'' port?

A: Optional transition fitting is available without main unit parameter modification to fit existing pipeline.

Q3: What’s installation ambient requirement?

A: Ambient temp 5~42℃, dry ventilated small workshop, keep away from heavy dust and ponding water.

Q4: What are maintenance intervals?

A: First service after 500 running hours, regular maintenance every 2000 working hours afterward.

Q5: Can maintenance spare parts ship together with compressor?

A: Complete filter kits and lubricant can be packed in same export container with full customs documentation.
