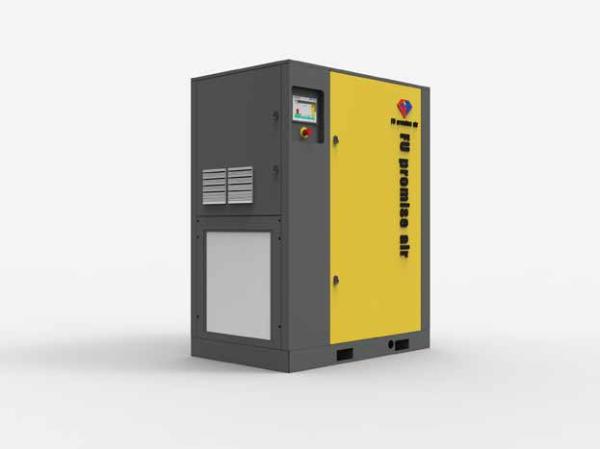

FLi-30A Single Stage Screw Compressor | Three Flow Ratings & Multi Selectable Working Pressure
FLi-30A Single Stage Screw Compressor | Three Flow Ratings & Multi Selectable Working Pressure
Specifications
Brand Name :
FU PRO
Model Number :
FLi-30A
Certification :
CE
Place of Origin :
CHINA
MOQ :
5 units
Price :
6000-300000
Payment Terms :
1. Standard In-stock Items: 100% payment in advance 2. Non-standard / Non-in-stock Models: 50% deposit in advance,50% balance before shipment
Supply Ability :
With stable bulk supply capacity, we accept long-term orders
Delivery Time :
1. Standard In-stock Models: Shipment within 3-7 working days upon receipt of advance payment and order confirmation 2. Non-standard / Non-in-stock Models: Shipment within 20-30 working days upon receipt of advance payment and order confirmation
Packaging Details :
Bubble Wrap / Stretch Wrap
Model :
FLi-30A Fixed Speed Single Stage Screw Compressor
Rated Flow & Pressure :
6m³/min@7.5/8.5Bar(g),4.58m³/min@10/12.5Bar(g),3.82m³/min@13/15.5Bar(g)
Outlet :
G1-1/4'' BSPT Thread
Overall Dimension :
1630×890×1390 mm
Noise Level :
63dB(A)
Net Weight :
636kg
Description
FLi-30A Single Stage Screw Air Compressor | Multiple Flow & Optional Pressure For Medium Industrial Plant

Product Introduction

FLi-30A fixed-speed single stage screw air compressor has three rated working specs:6m³/min@7.5/8.5Bar(g),4.58m³/min@10/12.5Bar(g),3.82m³/min@13/15.5Bar(g). Equipped with G1-1/4'' BSPT exhaust port, overall dimension 1630×890×1390mm, net weight 836kg and running noise 63dB(A). Fully load inspected before shipment, widely used for medium machining, full workshop coating, mass rubber & plastic production, metal forging and automatic production line centralized air supply for bulk export.

Core Selling Paragraph

Three different large airflow options plus multiple selectable working pressures flexibly satisfy differentiated air consumption of various equipment in medium factories, while standard G1-1/4'' BSPT threaded outlet and 63dB low-noise integrated enclosed cabinet bring excellent piping compatibility and quiet operation to meet international industrial noise control standards.

Technical Parameter Table

表格



Item Specification
Model FLi-30A Fixed Speed Single Stage Screw Compressor
Rated Flow & Pressure 6m³/min@7.5/8.5Bar(g),4.58m³/min@10/12.5Bar(g),3.82m³/min@13/15.5Bar(g)
Outlet G1-1/4'' BSPT Thread
Overall Dimension 1630×890×1390 mm
Noise Level 63dB(A)
Net Weight 636kg
Application Medium machinery processing, full-plant spray coating, mass rubber & plastic manufacturing, metal forging, automatic equipment air supply

English FAQ

Q1: Can this compressor run 24h full-load continuously?

A: It passes full-load durability aging test and supports non-stop all-day production for mass-production factories.

Q2: Is flange adapter available for G1-1/4'' port conversion?

A: Custom reducing flange is optional without any modification or performance loss on main unit.

Q3: What is the proper ambient condition for installation & operation?

A: Ambient temperature 5~42℃, dry & well-ventilated space with low dust, avoid outdoor rainy installation.

Q4: What’s the first and regular maintenance interval?

A: First maintenance at 500 working hours, periodic service every 2000 running hours afterward.

Q5: Can maintenance spare parts and screw oil ship together with the compressor?

A: Complete filter kits and special lubricant can be loaded in the same export container with full customs documents.
