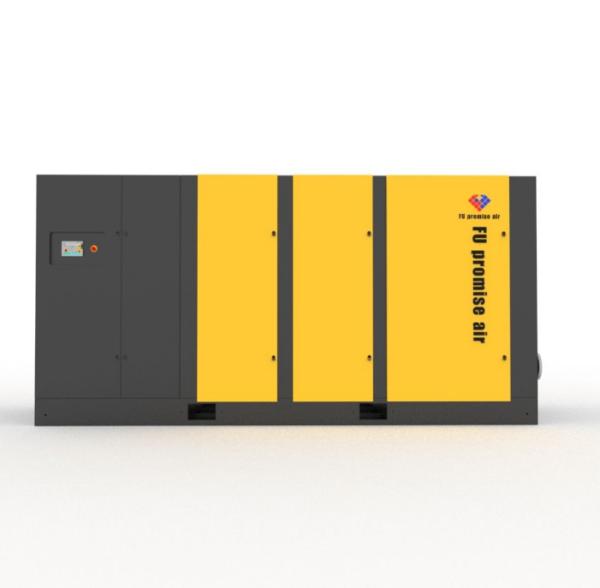

Single Stage Air Compressor FLi-250A | DN125 Flange Outlet & 85dB Stable Heavy-Duty Operation
Single Stage Air Compressor FLi-250A | DN125 Flange Outlet & 85dB Stable Heavy-Duty Operation
Specifications
Brand Name :
FU PRO
Model Number :
FLi-250A
Certification :
CE
Place of Origin :
CHINA
MOQ :
5 units
Price :
6000-300000
Payment Terms :
1. Standard In-stock Items: 100% payment in advance 2. Non-standard / Non-in-stock Models: 50% deposit in advance,50% balance before shipment
Supply Ability :
With stable bulk supply capacity, we accept long-term orders
Delivery Time :
1. Standard In-stock Models: Shipment within 3-7 working days upon receipt of advance payment and order confirmation 2. Non-standard / Non-in-stock Models: Shipment within 20-30 working days upon receipt of advance payment and order confirmation
Packaging Details :
Bubble Wrap / Stretch Wrap
Model :
FLi-250A Fixed Speed Single Stage Screw Compressor
Fixed Flow & Pressure :
50.5m³/min@7.5/8.5Bar(g),43.5m³/min@10/12.5Bar(g),30.14m³/min@13/15.5Bar(g)
Outlet :
DN125
Overall Size :
4600×2100×2270 mm
Noise Level :
85dBA
Net Weight :
5340kg
Description
FLi-250A Single Stage Screw Air Compressor | Fixed Rated Flow & Multi-Pressure Option For Large Heavy Industrial Complex

Product Introduction

FLi-250A fixed-speed single stage screw air compressor has three fixed specs:50.5m³/min@7.5/8.5Bar(g),43.5m³/min@10/12.5Bar(g),30.14m³/min@13/15.5Bar(g). Equipped with DN125 exhaust flange, overall dimension 4600×2100×2270mm, net weight 5340kg and working noise 85dB(A). Full-load aging inspected before shipment, widely used for heavy industry park, chemical plant central air supply, large rubber & plastic industrial chain for bulk export.

Core Selling Paragraph

Three large fixed rated airflow values plus multiple optional working pressures deliver abundant steady compressed air to satisfy all-day full-load production of big industrial zones; large DN125 flange outlet and heavy reinforced enclosed cabinet reduce pipeline pressure drop and suit centralized pipe network layout for long-term heavy-duty continuous operation.

Technical Parameter Table





Item Specification
Model FLi-250A Fixed Speed Single Stage Screw Compressor
Fixed Flow & Pressure 50.5m³/min@7.5/8.5Bar(g),43.5m³/min@10/12.5Bar(g),30.14m³/min@13/15.5Bar(g)
Outlet DN125 Flange
Overall Size 4600×2100×2270 mm
Noise Level 85dBA
Net Weight 5340kg
Application Heavy equipment industrial park, large chemical factory, whole-site central air supply project, full-chain rubber & plastic production matching

English FAQ

Q1: Can this high-power fixed-speed unit run 24h full-load all year round?

A: It passes full-load endurance aging test, rugged heavy-duty rotor ensures non-stop round-the-clock heavy production.

Q2: Is custom reducing flange available for DN125 port?

A: Optional transition flange is available without main unit modification or performance loss.

Q3: What’s installation ambient requirement?

A: Ambient temp 5~42℃, spacious ventilated heavy workshop with enough maintenance space, avoid ponding and direct sunlight.

Q4: What are maintenance intervals?

A: First maintenance after 500 running hours, regular service every 2000 working hours afterward.

Q5: Can maintenance spare parts ship together with compressor?

A: Complete filter kits and lubricant can be loaded in same export container with full customs documentation.
