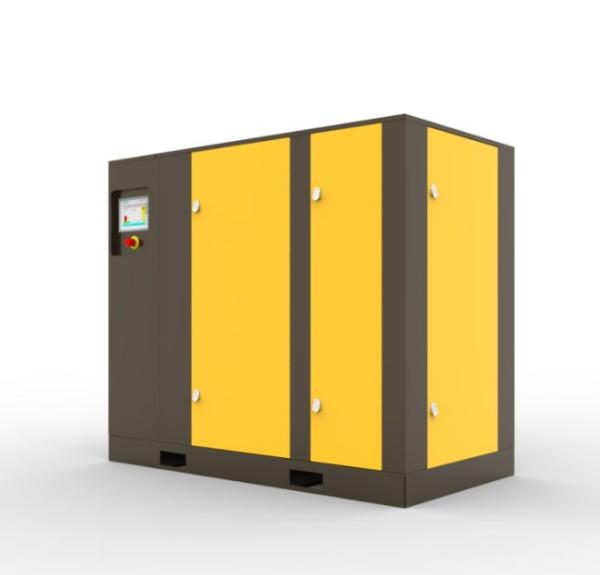

FLi-37AFC Single Stage VFD Screw Compressor | Wide Variable Airflow Range & Multi Optional Working Pressure
FLi-37AFC Single Stage VFD Screw Compressor | Wide Variable Airflow Range & Multi Optional Working Pressure
Specifications
Brand Name :
FU PRO
Model Number :
FLi-37AFC
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
20000-420000CNY
Payment Terms :
50% deposit in advance,balance 50% before shipment
Supply Ability :
Stable bulk supply, long-term orders accepted
Delivery Time :
Standard / Custom Orders: Shipment within 15-25 working days upon receipt of advance payment.
Packaging Details :
Bubble Wrap / Stretch Wrap
Model :
FLi-37AFC VFD Single Stage Screw Compressor
Variable Flow & Pressure :
1.64~7.6m³/min@7.5/8.5Bar(g),1.44~6.54m³/min@10/12.5Bar(g),1.23~5.58m³/min@13/15.5Bar(g)
Outlet :
G1-1/4'' BSPT
Overall Size :
1630×890×1390 mm
Noise Level :
67dB(A)
Net Weight :
761kg
Application :
Medium metal fabrication, assembly line spray coating, rubber & plastic goods production, automatic machinery matching
Description
FLi-37AFC Single Stage Screw Air Compressor | Variable Flow & Multi-Pressure Option For Medium Industrial Plant

Product Introduction

FLi-37AFC VFD single stage screw air compressor has three working specs:1.64~7.6m³/min@7.5/8.5Bar(g),1.44~6.54m³/min@10/12.5Bar(g),1.23~5.58m³/min@13/15.5Bar(g). Equipped with G1-1/4'' BSPT exhaust port, overall dimension 1630×890×1390mm, net weight 761kg and working noise 67dB(A). Full-load VFD aging tested before shipment, widely used for medium metal processing, full-line spray coating, rubber & plastic manufacturing and automatic equipment air supply for bulk export.

Core Selling Paragraph

Full-range variable adjustable airflow plus multiple optional working pressures realize real-time output adjustment following actual workshop air consumption to cut power cost, while standard G1-1/4'' BSPT threaded outlet and 67dB low-noise enclosed cabinet deliver easy pipe connection and moderate footprint to fit continuous production & layout requirement of medium factories.

Technical Parameter Table





Item Specification
Model FLi-37AFC VFD Single Stage Screw Compressor
Variable Flow & Pressure 1.64~7.6m³/min@7.5/8.5Bar(g),1.44~6.54m³/min@10/12.5Bar(g),1.23~5.58m³/min@13/15.5Bar(g)
Outlet G1-1/4'' BSPT Thread
Overall Size 1630×890×1390 mm
Noise Level 67dBA
Net Weight 761kg
Application Medium metal fabrication, assembly line spray coating, rubber & plastic goods production, automatic machinery matching

English FAQ

Q1: Can this VFD compressor run 24h non-stop all year round?

A: It passes full-load endurance aging test, stable VFD system supports uninterrupted round-the-clock production.

Q2: Is custom reducing fitting available for G1-1/4'' port?

A: Optional transition adapter is available without main unit modification or performance degradation.

Q3: What’s installation ambient requirement?

A: Ambient temp 5~42℃, ventilated indoor workshop, no dedicated compressor room required, avoid rain and direct sunlight.

Q4: What are maintenance intervals?

A: First service after 500 running hours, periodic maintenance every 2000 working hours afterward.

Q5: Can maintenance spare parts ship together with compressor?

A: Complete filter kits and lubricant can be loaded in same export container with full customs documentation.
