High Torque 48V Integrated Servo Motor Drive For Automated
High Torque 48V Integrated Servo Motor Drive For Automated
Specifications
Brand Name :
HKT-Robot
Model Number :
YLC6040DCBB-10KA6
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
1-4 Weeks
Packaging Details :
Craton
Encoder :
Absolute Value
Rated Power :
400W
Supply Voltage :
DC 48V
Brake :
Brake
Torque :
1.27Nm
Weight :
2.5KG
Rated/Max Speed :
3000/4000 RPM
Flange Size :
60*60mm
Description

High-Torque Integrated Servo Motor for Automated Applications

Product Description:

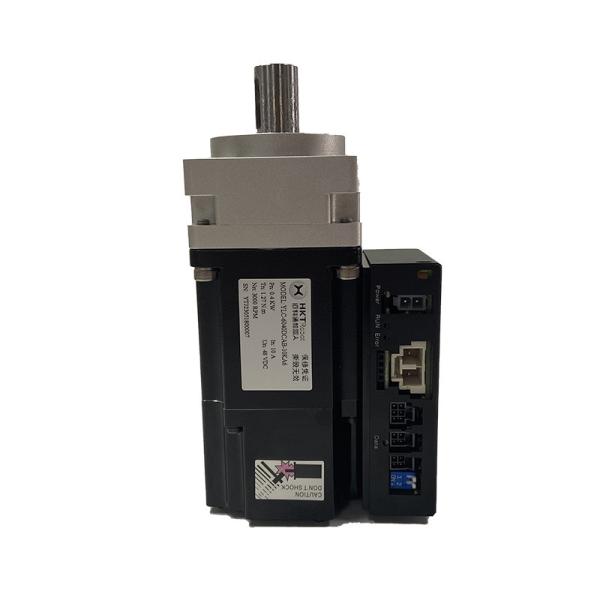

The Integrated Servo Motor model YLC6040DCBB-10KA6 combines a powerful servo motor with built-in drive and control, ideal for precision applications. With a maximum torque of 1.27 Nm, 60*60mm flange size, and speeds up to 3000 RPM, it's lightweight at just 2.5kg and operates on a 48V DC supply.

This integrated motor, specifically the YLC6040DCBB-10KA6 model, outperforms traditional servos with efficiency, reducing energy costs, and excelling in torque and speed. Its reliable, user-friendly design makes it a top choice for high-torque, high-speed applications.

Features:

1.Compact Design: Compact form factor to save space and promote efficient use of physical resources.


2.Robust Internal Wiring: Quality internal wiring to ensure a stable and interference-free connection.


3.Universal Interface Compatibility: Compatibility with common interface protocols for ease of integration and replacement.


4.Streamlined Integration: High integration levels, minimizing the need for troubleshooting and after-sales support.


5.Customization Support: Open port permissions and extensive customization options to tailor the product to specific needs.

Technical Parameters:

Parameter Value
Rated Current 10A
Rated Voltage DC 48V
Flange Size 60*60mm
Encoder Type Incremental
Communication Protocol CANopen,Modbus/RS485
Peak Current 30A
Reduction ratio 10
Motor Brake Brake
Rated Power 400W
Weight 2.5KG
Length 104mm
Humidity 20%-80%RH
Operation Temperature 0℃-40℃
Installation Method Vertical or hotizontal installation
Ibstallation Site Dust free drying
