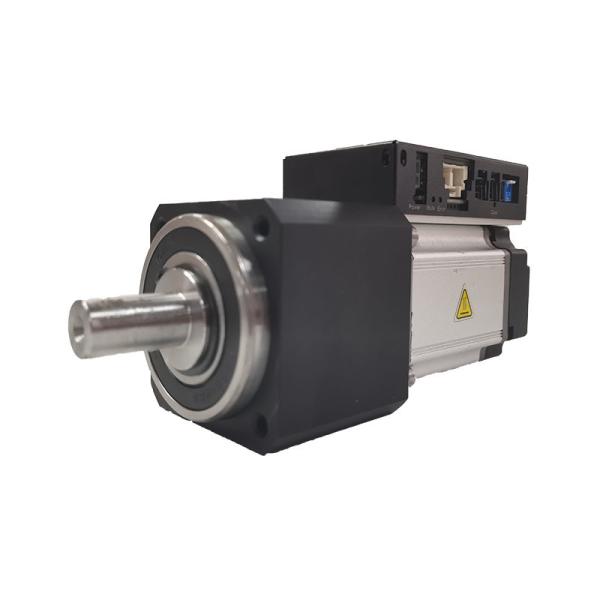

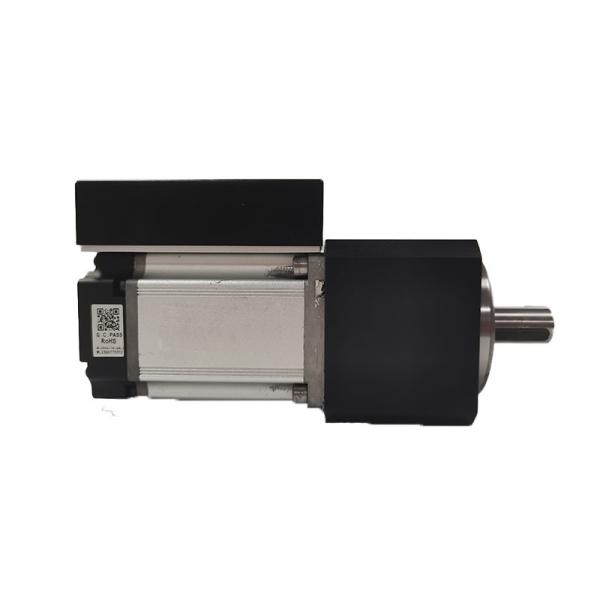

AGV Integrated DC Motors With Controller 300W OEM
AGV Integrated DC Motors With Controller 300W OEM
AGV Integrated DC Motors With Controller 300W OEM
AGV Integrated DC Motors With Controller 300W OEM
Specifications
Brand Name :
HKT-Robot
Model Number :
YLC7030DCAN-32KA6
Place of Origin :
China
Certification :
CE
MOQ :
1
Packaging Details :
Carton
Price :
Neogotiable
Payment Terms :
T/T
Delivery Time :
1-4 Weeks
Rated Power :
300W
Motor Brake :
No Brake
Encoder Type :
Absolute Value
Rated/Max Speed :
3000/4000 RPM
Flange Specification :
70*70mm
Rated Torque :
0.96 N/m
Rated Voltage :
DC 48V
Peak Current :
24A
Description

Integrated Servo Motor for AGV without Brake

Product Description:

The YLC7030DCAN-32KA6 Integrated Servo Motor packs a punch with its 300W power, 3000/4000 RPM speed range, and DC 48V rating. Its absolute value encoder and 60*60mm flange size offer precision in various applications. This servo motor is compatible with CANopen and digital integrated servo drives, simplifying integration.

With a built-in controller and anti-interference features, it ensures reliable, accurate control while guarding against electrical interference. Reliability and longevity are its hallmarks, and its compact design and low noise operation suit space-constrained and noise-sensitive environments.

In summary, the YLC7030DCAN-32KA6 is a versatile, high-performance servo motor ideal for a wide range of applications, thanks to its compact design, noise reduction, and compatibility with various drive systems.

Features:

1.Plug-and-Play Compatibility: Easy adaptation and replacement options to simplify installation and upgrades.


2.Clear Product Responsibility: Clearly defined product responsibilities, reducing confusion and accountability issues.


3.Modular Design: A modular approach that allows for flexible configuration and expansion.


4.User-Friendly: Designed with end-users in mind, ensuring convenience and usability.


5.Customizable Permissions: Granular control over permissions to meet specific customization requirements.

Technical Parameters:

Parameter Value
Rated Current 8A
Rated Voltage DC 48V
Flange Size 70*70mm
Encoder Type Absolute Value
Communication Protocol CANopen,Modbus/RS485
Reduction Ratio 32
Peak Current 24A
Motor Brake No Brake
Rated Power 300W
Weight 2.5KG
Length 130mm
Humidity 20%-80%RH
Operation Temperature 0℃-40℃
Installation Method Vertical or hotizontal installation
Ibstallation Site Dust free drying
