48V 300W Integrated Servo DC Drive Motor 70x70mm For AGV
48V 300W Integrated Servo DC Drive Motor 70x70mm For AGV
48V 300W Integrated Servo DC Drive Motor 70x70mm For AGV
48V 300W Integrated Servo DC Drive Motor 70x70mm For AGV
Specifications
Brand Name :
HKT-Robot
Model Number :
YLC7030DCBN-32KA6
Place of Origin :
China
Certification :
CE
MOQ :
1
Packaging Details :
Carton
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
1-4 Weeks
Rated Voltage :
DC 48V
Rated Current :
8A
Peak Current :
24A
Encoder Type :
Incremental
Motor Brake :
No Brake
Rated Torque :
0.96 N/m
Flange Size :
70*70mm
Rated/Max Speed :
3000/4000 RPM
Description

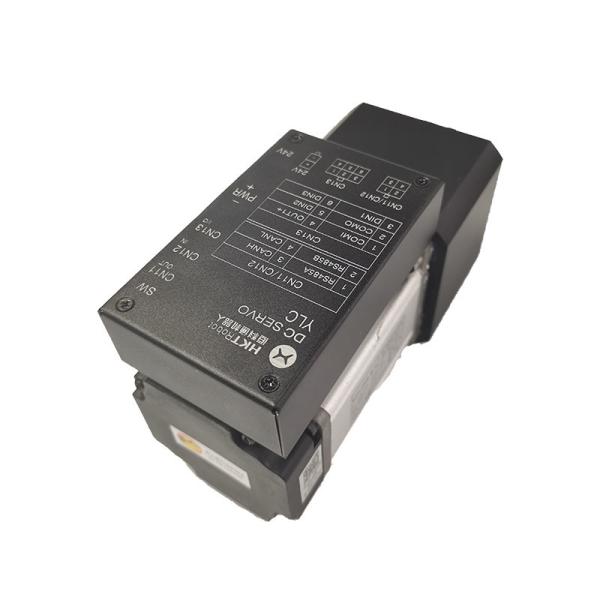

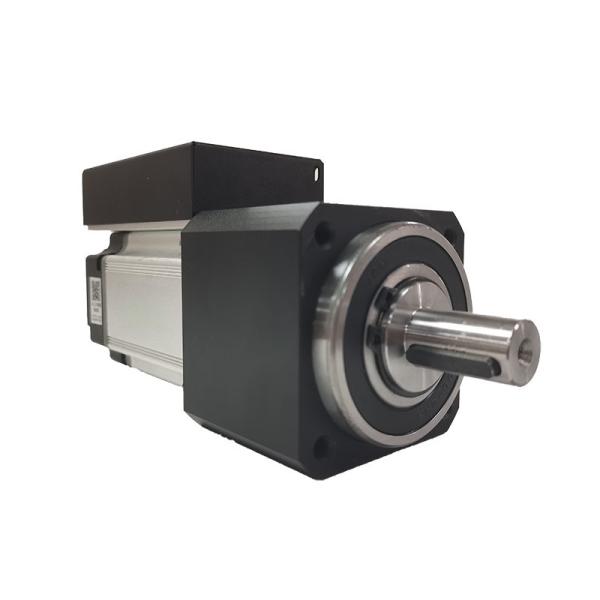

300W Integrated Servo Motor with 70*70mm for AGV

Product Description:

The Integrated Servo Motor model YLC7030DCBN-32KA6 is a low inertia integrated servo motor, designed for high performance and reliable operation. YLC7030DCBN-32KA6 is equipped with an integrated servo drive, providing an efficient and cost-effective solution for your industrial motion control applications. It has a reduction ratio of 32, rated torque of 0.96 N/m, rated power of 300W, and no motor brake. The rated/max speed of the YLC7030DCBN-32KA6 Integrated Servo Motor is 3000/4000 RPM. Its compact design and integrated servo drive make it an ideal choice for industrial motion control applications.

Features:​

1.Compact Design: A smaller, space-saving design that maximizes efficiency and minimizes the physical footprint.


2.Enhanced Connectivity: Advanced internal wiring and connection technologies that ensure stable and interference-free performance.


3.Universal Compatibility: Compatibility with mainstream interface protocols, making it easy to integrate with existing systems and devices without the need for extensive adaptations.


4.Accountability and Reliability: Products or services that come with clear responsibilities, ensuring that issues are addressed promptly and not passed on to the customer.


5.Customization Options: Deep customization capabilities, allowing users to tailor the product or service to their specific needs and preferences.

Technical Parameters:

Parameter Value
Rated Current 8A
Rated Voltage DC 48V
Flange Size 70*70mm
Encoder Type Incremental
Communication Protocol CANopen,Modbus/RS485
Peak Current 24A
Motor Brake No Brake
Rated Power 300W
Weight 2.5KG
Length 130mm
Humidity 20%-80%RH
Operation Temperature 0℃-40℃
Installation Method Vertical or hotizontal installation
Ibstallation Site Dust free drying
