YuCheng Xinyi Machinery Factory
Product Technical Parameter
MF Disc Plough The 1LY disc plough is a tractor-mounted agricultural implement designed for robust soil cultivation. Its rotating discs excel at turning over soil, making it particularly suitable for challenging terrains—such as fields with dense grasses, crop residues (straw/stems), high soil resistance, or scattered stones and broken debris. Unlike traditional ploughs, the 1LY efficiently cuts through vegetation and handles obstructions without stalling, ensuring continuous operation even in tough conditions.
The plough’s rotating disc design allows it to tackle fields laden with grasses, crop leftovers, and rocky or compacted soil. The discs slice through thick vegetation and break up hard clods, while their angled configuration effectively turns over soil to aerate and prepare it for planting. This makes it ideal for fallow fields, stubble-covered plots, or areas requiring deep soil preparation before sowing.
Engineered to minimize downtime, the 1LY features a disc spacing and cutting angle that prevent grasses, soil, or small stones from tangling or jamming the mechanism. This ensures smooth, uninterrupted operation, even in messy or overgrown fields—a critical advantage for farmers dealing with post-harvest residues or neglected land.
- Rugged Construction: The main frame is built with 8 mm rectangular steel tubes, ensuring structural strength and resistance to impacts from stones or uneven terrain. Backed by over 20 years of agricultural tool manufacturing expertise, the plough is designed for long-lasting performance in heavy-duty applications.
- Premium Discs: The discs are self-produced using high-quality steel from Anshan and Lingyuan—two of China’s leading steel producers. Heat-treated for hardness and wear resistance, they maintain sharp edges and withstand repeated use, reducing maintenance and replacement costs.
- Full In-House Production: As a factory-direct manufacturer, we ensure all components—from discs to structural parts—meet strict quality control standards. This vertical integration guarantees consistent performance and easy access to replacement parts, minimizing downtime for farmers.
The plough allows for easy adjustments to disc depth and angle, enabling operators to customize soil penetration and turning based on crop types, soil conditions, or farming goals. This flexibility enhances its utility across different agricultural practices, from deep ploughing to shallow tillage.
Type | 1LYX-230 | 1LYX-330 | 1LYX-430 | 1LYX-530 | 1LYX-630 |
Working width (mm) | 600 | 900 | 1200 | 1500 | 1800 |
Working depth (mm) | 250-300 |
No. of disc (pc) | 2 | 3 | 4 | 5 | 6 |
Dia of disc (mm) | 660/710 |
Weight (kg) | 320 | 400 | 490 | 650 | 750 |
Linkage | Three point mounted |
Matched power (hp) | 40-50 | 60-80 | 80-100 | 100-120 | 120-160 |

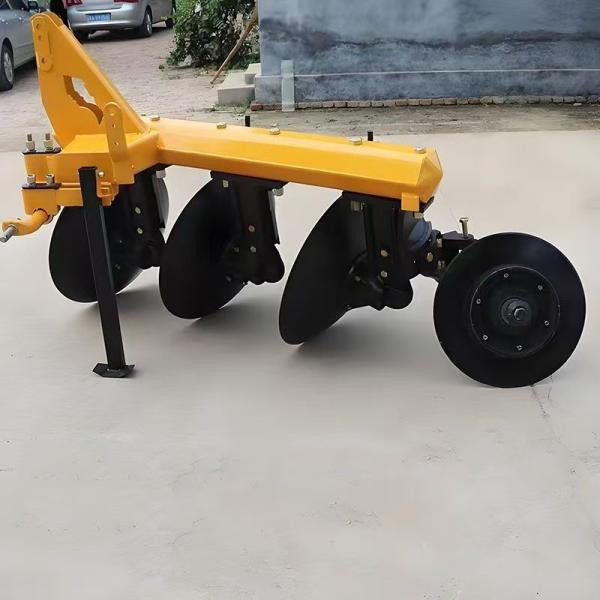

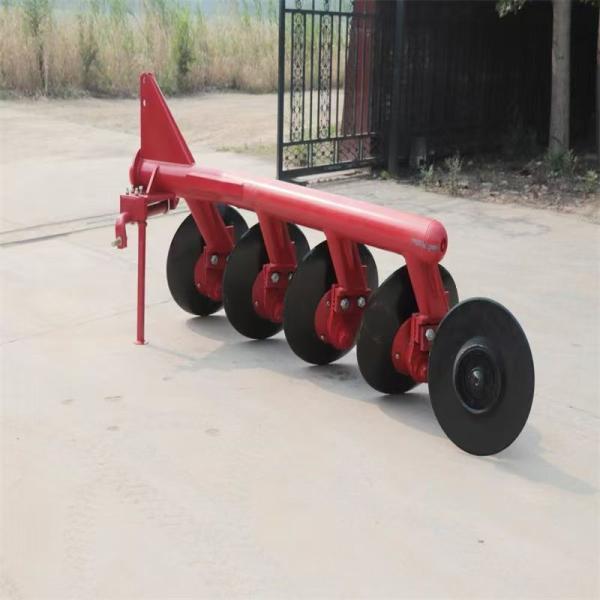

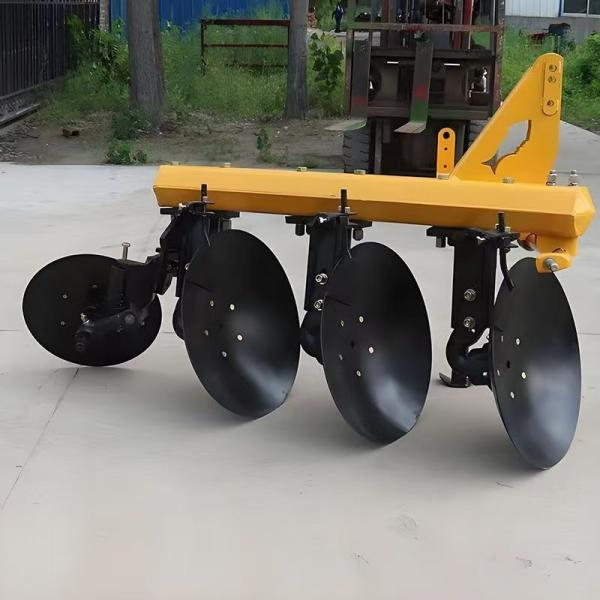

Product images:

Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers
After Sales Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need it urgently.
FAQ:
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T; L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
5. Q: Why choose Xinyi for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1. More than 25years in manufacturing farming machine.
2. More Professional Sales staffs to guarantee the better service
3. More agri machines for your choice
4. More New products into your range to avoid price competition
5. Larger quantity production and shipment
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only 7 days
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: XINYI" brand and "CE"ceitification.
11.Lower repair rate and bad review rate.
12. Have received unstinting support from the Chinese government.
