Specifications
Brand Name :
Xinyi
Model Number :
65Mn
Certification :
CE
Place of Origin :
China
MOQ :
100 pieces
Price :
US $ 21.25-25.26 / piece
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
5000 pieces/per Month
Delivery Time :
7-14 work days
Packaging Details :
Iron Frame
Model NO. :
65Mn
Material :
65mn/40mnb
Power Source :
Diesel
Weight :
1.1-27kgs
Warranty :
1year
Color :
Red/Black/Blue/Yellow
Width :
12inch-44inch
Thickness :
3mm-12mm
Hardness :
38-46HRC
Edge of Disc Blade :
Round or Notched
Shape :
Flat,Concave or Wavy
Surface Treatment :
Painting
Specification :
Customizable
HS Code :
8413290000
Description

65Mn Steel Harrow Blades Agricultural Disc Plough Customizable Notch

Product Description

Yucheng Xinyi Machinery Manufacturing Co., Ltd.

Product Technical Parameter

Name:65Mn Steel Agricultural Harrow Plough Disc Blades

Disc harrows are the core tillage components of modern agricultural machinery. They are designed for efficient land preparation and are suitable for soil breaking, weeding and leveling operations under various soil conditions.


Main Features

1. High strength material

2. Optimized design
- Notched/full disc optional, better soil crushing effect
- 22/24/26 inch multiple specifications, suitable for different agricultural machinery

3. Efficient operation
- Unique curved surface design, fast penetration and low resistance

4. Widely compatible
- Suitable for a variety of farming scenarios such as dry land, paddy fields, orchards, etc.




Material:

65Mn,Boron steel

Hardness:

HRC38-45, HRC43-48

Thickness:

3.0-12.5mm

Size/dimension:

12"-44"(300mm-1120mm)

Edge of Disc Blade:

Round or Notched.

Shape:

Flat,Concave or Wavy

MOQ:

100 pcs

Production Capacity:

7 Million pcs annually

Surface treatment:

Painting

Colors:

Blue or black ( matt or bright), Made to your order

Hole Type:

Square, Round, Hexagon, Clover Leaf, Optional

Hole Size:

27x27mm, 42x42mm, optional

Working Depth:

200mm, 300mm

Working Width:

3.4M ~ 6.2M

Packing:

Non-fumigation wooden case, metal case according policy of different regions

Feature /Characteristic:

Highest wear life due to special edge making process

Common Specifications of Disc

Dia.

Concavity

Thickness

mm

inch

mm

mm

255

10

12

3

305

12

19

3

330

13

25

3

355

14

38

3

410

15

38~50

3

430

17

57

3,4

460

18

38~60

3,4

480

19

57

3,4

510

20

44~63

3,4,5

535

21

63

3,4,5

560

22

60~85

4,5,6

585

23

75~90

4,5.6

610

24

75~95

4,5,6

660

26

86~115

5,6,7,8

710

28

100~130

5,6,7,8

760

30

120~135

6,7,8,10,12

810

32

120~140

8,10,12

910

36

120-200

8,10,12

960

38

120-200

8,10,12

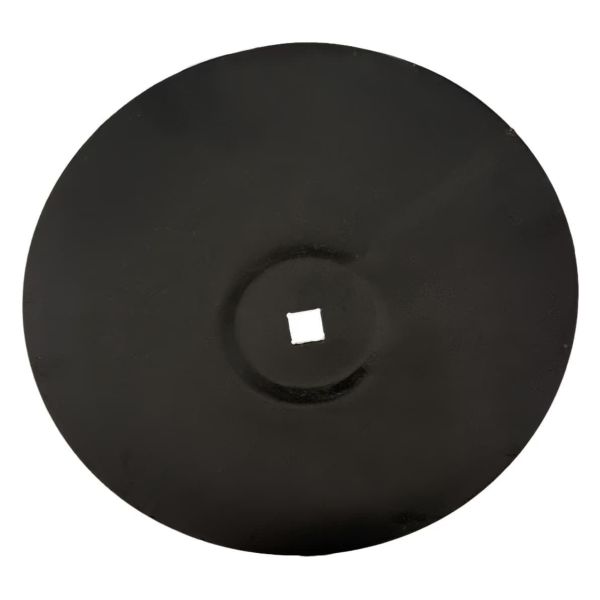

Detailed Photos





65Mn Steel Harrow Blades Customizable Notch for Agricultural Disc Plough

Packaging & Shipping


Normal packing or According to your requirement.

Safe, complete and fast delivery of goods to customers.

After Sales Service

1, All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .
2, We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
3, We can also provide training services to different users.
