Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment
Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment
Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment
Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment
Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment
Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment
Specifications
Brand Name :
Xinyi
Model Number :
65Mn
Place of Origin :
China
MOQ :
100psc
Price :
US 22.48-24.26 each
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
5000 psc/month
Delivery Time :
7-14 days
Packaging Details :
Iron Box
Material :
65mn/40mnb
Power Source :
Diesel
Weight :
1.1-27kgs
After-sales Service :
Provide
Warranty :
1year
Color :
Red/Black/Blue/Yellow
Width :
12inch-44inch
Thickness :
3mm-12mm
Hardness :
38-46HRC
Edge of Disc Blade :
Round or Notched
Shape :
Flat,Concave or Wavy
Surface Treatment :
Painting
Transport Package :
Pallet
Specification :
Customizable
HS Code :
8413290000
Description

Product Description

Yucheng Xinyi Machinery Manufacturing Co., Ltd.

Product Technical Parameter

Name:Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment

Disc blade is widely used in disc plough, disc harrow on the most important wear parts. we disc blade are exported to the United States, Canada, Russia, South Africa, Southeast Asia and other countries every year, with an annual export of 1 million pieces. has more than 20 years of production experience, helping customers in various regions to open up better markets.
Thanks to the use of China's best steel Anshan steel and Lingyuan steel, we ensure that the quality of our disks is better and the service life is longer, up to 2-3 years.
Material 65Mn,Boron steel
Hardness: HRC38-45, HRC43-48
Thickness: 3.0-12.5mm
Size/dimension: 12"-44"(300mm-1120mm)
Edge of Disc Blade: Round or Notched.
Shape: Flat,Concave or Wavy
MOQ: 100 pcs
Production Capacity: 7 Million pcs annually
Surface treatment: Painting
Colors: Blue or black ( matt or bright), Made to your order
Hole Type: Square, Round, Hexagon, Clover Leaf, Optional
Hole Size: 27x27mm, 42x42mm, optional
Working Depth: 200mm, 300mm
Working Width: 3.4M ~ 6.2M
Packing: Non-fumigation wooden case, metal case according policy of different regions
Feature /Characteristic: Highest wear life due to special edge making process
Common Specifications of Disc
Dia. Concavity Thickness
mm inch mm mm
255 10 12 3
305 12 19 3
330 13 25 3
355 14 38 3
410 15 38~50 3
430 17 57 3,4
460 18 38~60 3,4
480 19 57 3,4
510 20 44~63 3,4,5
535 21 63 3,4,5
560 22 60~85 4,5,6
585 23 75~90 4,5.6
610 24 75~95 4,5,6
660 26 86~115 5,6,7,8
710 28 100~130 5,6,7,8
760 30 120~135 6,7,8,10,12
810 32 120~140 8,10,12
910 36 120-200 8,10,12
960 38 120-200 8,10,12

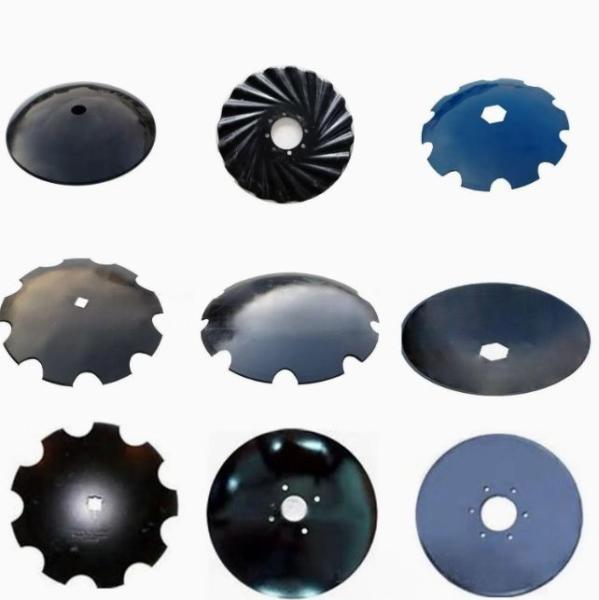

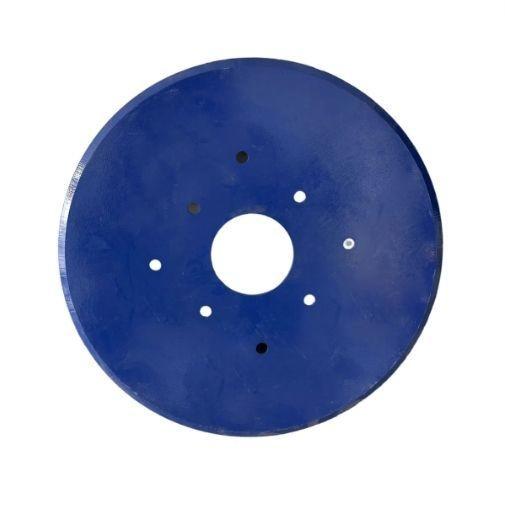

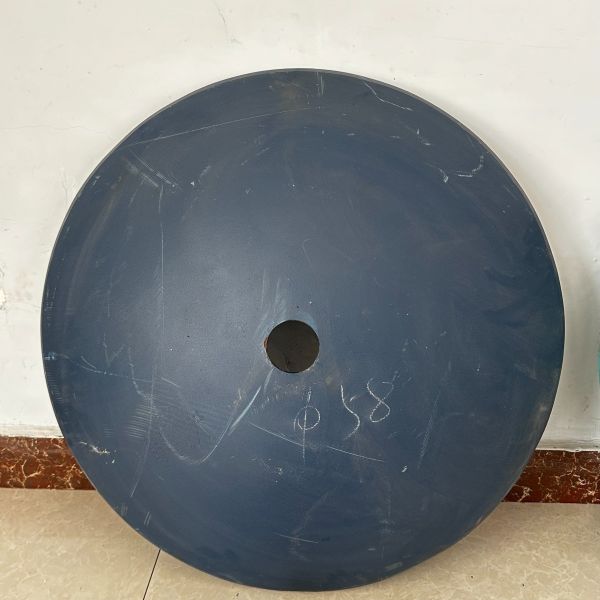

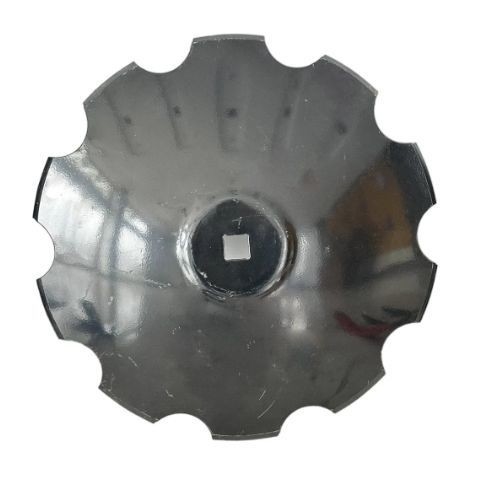

Detailed Photos

Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment

Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment

Packaging & Shipping

Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment

Normal packing or According to your requirement.

Safe, complete and fast delivery of goods to customers.

More Products

Agriculture Machinery Parts Disc Blade Customizable High Hardness Heat Treatment

After Sales Service

1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .
2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
3,We can also provide training services to different users.
