Specifications
Brand Name :
Xinyi
Model Number :
7cx
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Price :
500-2000USD
Payment Terms :
T/T
Supply Ability :
2000pieces/years
Delivery Time :
10 days
Packaging Details :
Customizable
Usage :
Transportation
Loading Weight :
0.5t-20t
Structure :
Dump Trailer
Air Brake Type :
Air Inflating
Axle Number :
1/2/4
Dumping Direction :
Hydraulic Dump
Tire Number :
2-6
Condition :
New
Carriage Dimension :
Customizable
Colour :
Customizable
Matched Power :
60-160hp
Description

Product Description

Yucheng Xinyi Machinery Manufacturing Co., Ltd.

Product Technical Parameter


The 7C series farm trailer has various types from 3T to 20T. The product has reasonable structure; beautiful appearance, economic and durable and can match various types of tractors. The 7C series agriculture divide into the suspension type and half suspension type with the trailer, self-discharging and not self-discharging and so on. The load-carrying capacity matching with each kind of 8-120 horsep
ower tractor is suitable for road and the field transportation.

Main Feature
1) The bottom plate is 3mm thick, and the two sides of the plate are generally 1.5mm thick. You can customize thicker
2) The tires use the highest level, load, bow board use 11 layers, to ensure that the trailer load up to the standard.
3) For all the accessories, we choose the best, which can be bought from our factory.
4)The surface is sprayed with plastic to prevent rust.

Product Parameters:


Model 7C-4 / 7CX-4 7C-5 / 7CX-5 7CX-5 7C-6 / 7CX-6 7C-8 / 7CX-8 7CX-8
Carriage dimension
(mm)
3800*1700*460 4000*2150*550 4000*2150*550 4500*2150*550 5500*2150*550 4000*2150*550
Overall dimension
(mm)
5250*1800*2050 /
5250*1800*2150
5780*2250*2200/
5780*2250*2320
5780*2250*2320 6300*2250*2380/
6300*2250*2500
7300*2250*2380/
7500*2250*2380
5780*2250*2380
Rated weight(kg) 4000 5000 5000 6000 8000 8000
Dead weight(kg) 1155 / 1450 1457 / 1750 1880 1670 / 2060 2180 / 2730 2096
Tyre size/quantity 7.50-16/4 8.25-16/4 8.25-16/4 9.00-16/4 7.50-16/8 7.50-16/8
Unload form NO / Hydraulic
dump( left & right )
NO / Hydraulic
dump( left & right )
Hydraulic
dump(left,right and
back)
NO / Hydraulic
dump( left & right )
NO / Hydraulic
dump( left & right )
Hydraulic
dump(left,right and
back)
Brake form Air brake Air brake Air brake Air brake Air brake Air brake
Matched power(HP) 35-40 40-50 45-55 50-65 60-80 60-80
Quantity /20GP 15 / 15 10/10 10 10 10 10

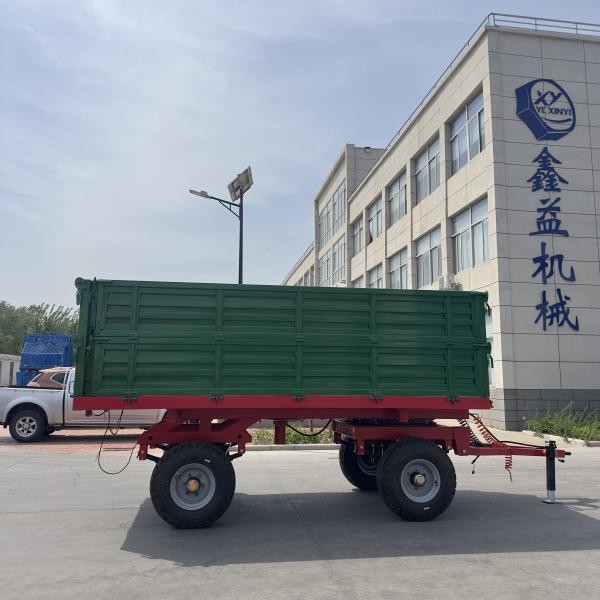

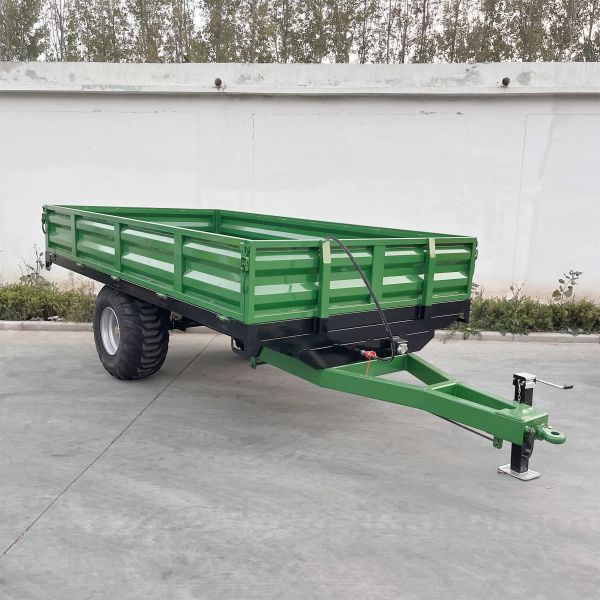

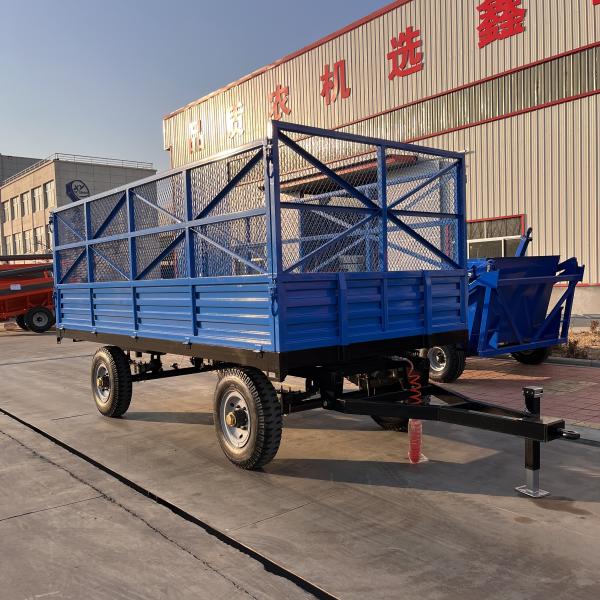

Detailed Photos

Customized Farm Trailer 4wheels Hydraulic Dump Trailer Perfect For Agricultural Transportation
Customized Farm Trailer 4wheels Hydraulic Dump Trailer Perfect For Agricultural Transportation
Customized Farm Trailer 4wheels Hydraulic Dump Trailer Perfect For Agricultural Transportation

Packaging & Shipping

Customized Farm Trailer 4wheels Hydraulic Dump Trailer Perfect For Agricultural Transportation
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers.

After Sales Service

1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .

2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.

3,We can also provide training services to different users.

FAQ

1. Q: Manufacturer or trading company?
A:We're a manufacturer. We have physical manufacturers.
2.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you
accordingly. Please understand we have a very wide product range, we don't usually offer full
products price list.
3. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T , L/C
Warranty: 1 year
4.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
5.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
6. Q: Why choose Xinyi for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1. More than 25 years in manufacturing farming machine.
2. More Professional Sales staffs to guarantee the better service.
3. More agri machines for your choice.
4. More New products into your range to avoid price competition.
5. Larger quantity production and shipment.
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only 7 days.
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: "XINYI" brand and "CE"ceitification.
11.Lower repair rate and bad review rate.
12. Have received unstinting support from the Chinese government.
