Product Technical Parameter

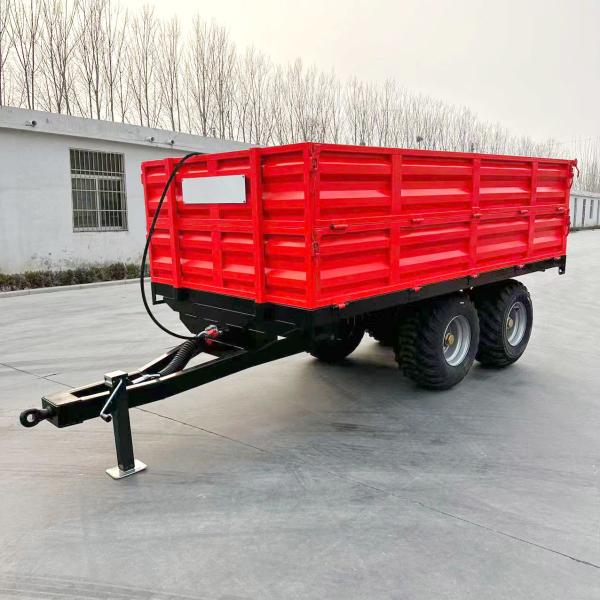

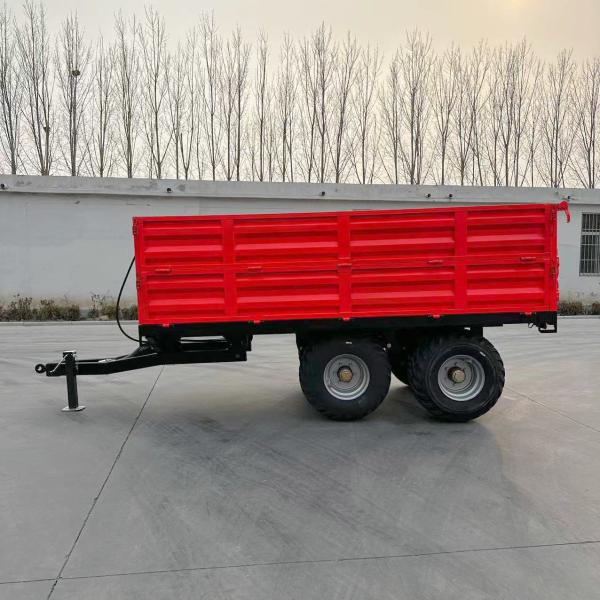

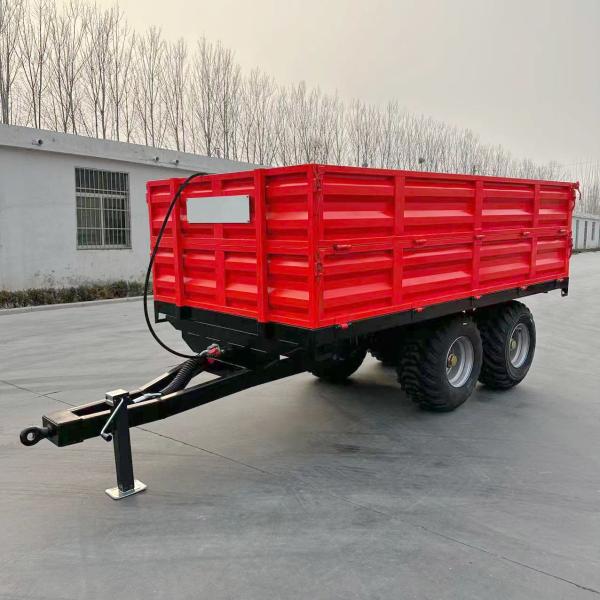

The 7C series farm trailers are available in various types ranging from 3T to 20T. Featuring a reasonable structure, beautiful appearance, and economic durability, these trailers can match various tractor models. The 7C agricultural series is categorized into suspension type, half-suspension type, self-discharging, and non-self-discharging models, etc. With load-carrying capacity compatible with 8-120 horsepower tractors, they are suitable for both road and field transportation.
- The bottom plate is 3mm thick, while the two side plates are generally 1.5mm thick. Thicker specifications are available for customization.
- The tires adopt the highest load rating, and the bow boards use 11-layer construction to ensure the trailer meets standard load-bearing requirements.
- All accessories are selected for premium quality and can be purchased directly from our factory.
- The surface is plastic-sprayed to prevent rust.
Model | 7C-4 / 7CX-4 | 7C-5 / 7CX-5 | 7CX-5 | 7C-6 / 7CX-6 | 7C-8 / 7CX-8 | 7CX-8 |
Carriage dimension (mm) | 3800*1700*460 | 4000*2150*550 | 4000*2150*550 | 4500*2150*550 | 5500*2150*550 | 4000*2150*550 |
Overall dimension (mm) | 5250*1800*2050 / 5250*1800*2150 | 5780*2250*2200/ 5780*2250*2320 | 5780*2250*2320 | 6300*2250*2380/ 6300*2250*2500 | 7300*2250*2380/ 7500*2250*2380 | 5780*2250*2380 |
Rated weight(kg) | 4000 | 5000 | 5000 | 6000 | 8000 | 8000 |
Dead weight(kg) | 1155 / 1450 | 1457 / 1750 | 1880 | 1670 / 2060 | 2180 / 2730 | 2096 |
Tyre size/quantity | 7.50-16/4 | 8.25-16/4 | 8.25-16/4 | 9.00-16/4 | 7.50-16/8 | 7.50-16/8 |
Unload form | NO / Hydraulic dump( left & right ) | NO / Hydraulic dump( left & right ) | Hydraulic dump(left,right and back) | NO / Hydraulic dump( left & right ) | NO / Hydraulic dump( left & right ) | Hydraulic dump(left,right and back) |
Brake form | Air brake | Air brake | Air brake | Air brake | Air brake | Air brake |
Matched power(HP) | 35-40 | 40-50 | 45-55 | 50-65 | 60-80 | 60-80 |
Quantity /20GP | 15 / 15 | 10/10 | 10 | 10 | 10 | 10 |
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers.
1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .
2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
3,We can also provide training services to different users. 1. Q: Manufacturer or trading company?
A:We're a manufacturer. We have physical manufacturers.
2.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you
accordingly. Please understand we have a very wide product range, we don't usually offer full
products price list.
3. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T , L/C
Warranty: 1 year
4.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
5.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
6. Q: Why choose Xinyi for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1. More than 25 years in manufacturing farming machine.
2. More Professional Sales staffs to guarantee the better service.
3. More agri machines for your choice.
4. More New products into your range to avoid price competition.
5. Larger quantity production and shipment.
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only 7 days.
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: "XINYI" brand and "CE"ceitification.
11.Lower repair rate and bad review rate.
12. Have received unstinting support from the Chinese government.
If you have any questions, please do not hesitate to contact me
