Product Technical Parameter

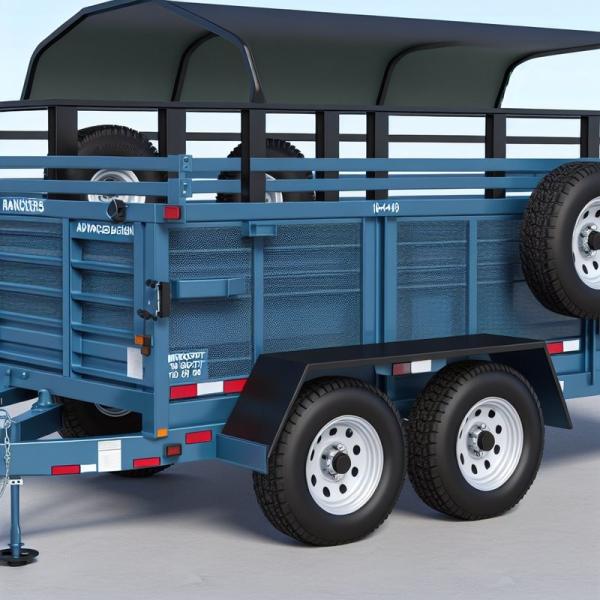

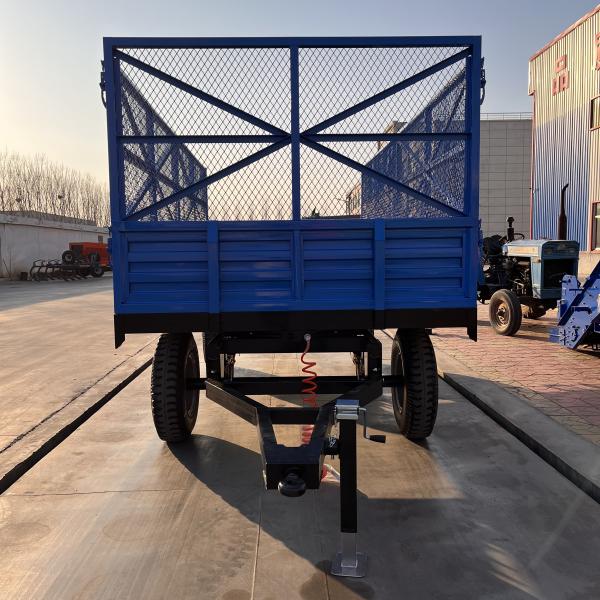

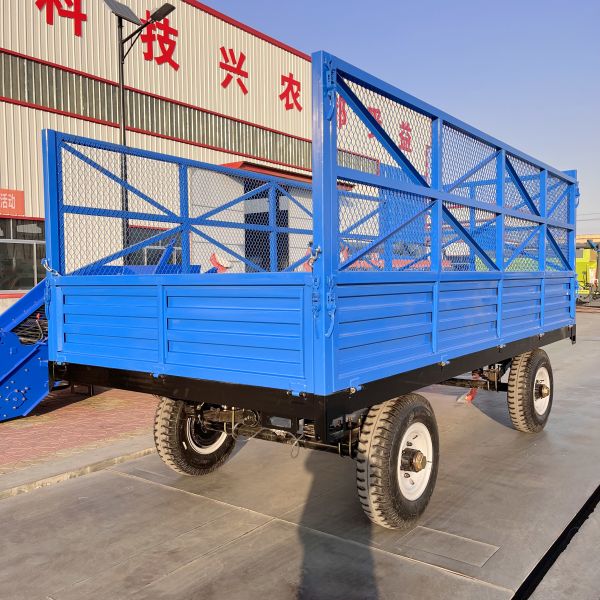

The 7C series farm trailers offer diverse models with 3-20T load capacities, designed for versatile agricultural hauling needs.
Engineered for durability and compatibility, these trailers integrate smoothly with 8-120HP tractors, excelling in on-road and off-road operations. Configurations include suspension, half-suspension, self-discharging, and non-self-discharging types to suit specific requirements.
Key Features:
- Robust Build: 3mm bottom plate (1.5mm sides standard), with customizable upgrades.
- High-Load Tires: 11-layer reinforced bow boards ensure industry-standard durability.
- Reliable Components: Factory-sourced parts for easy maintenance.
- Anti-Corrosion Coating: Plastic-spray finish extends lifespan in harsh conditions.
- Optional Upgrades: Reinforced hitches, LED lighting, and modular cargo systems.
Model | 7C-4 / 7CX-4 | 7C-5 / 7CX-5 | 7CX-5 | 7C-6 / 7CX-6 | 7C-8 / 7CX-8 | 7CX-8 |
Carriage dimension (mm) | 3800*1700*460 | 4000*2150*550 | 4000*2150*550 | 4500*2150*550 | 5500*2150*550 | 4000*2150*550 |
Overall dimension (mm) | 5250*1800*2050 / 5250*1800*2150 | 5780*2250*2200/ 5780*2250*2320 | 5780*2250*2320 | 6300*2250*2380/ 6300*2250*2500 | 7300*2250*2380/ 7500*2250*2380 | 5780*2250*2380 |
Rated weight(kg) | 4000 | 5000 | 5000 | 6000 | 8000 | 8000 |
Dead weight(kg) | 1155 / 1450 | 1457 / 1750 | 1880 | 1670 / 2060 | 2180 / 2730 | 2096 |
Tyre size/quantity | 7.50-16/4 | 8.25-16/4 | 8.25-16/4 | 9.00-16/4 | 7.50-16/8 | 7.50-16/8 |
Unload form | NO / Hydraulic dump( left & right ) | NO / Hydraulic dump( left & right ) | Hydraulic dump(left,right and back) | NO / Hydraulic dump( left & right ) | NO / Hydraulic dump( left & right ) | Hydraulic dump(left,right and back) |
Brake form | Air brake | Air brake | Air brake | Air brake | Air brake | Air brake |
Matched power(HP) | 35-40 | 40-50 | 45-55 | 50-65 | 60-80 | 60-80 |
Quantity /20GP | 15 / 15 | 10/10 | 10 | 10 | 10 | 10 |


Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers.
1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .
2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
3,We can also provide training services to different users. 1. Q: Manufacturer or trading company?
A:We're a manufacturer. We have physical manufacturers.
2.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you
accordingly. Please understand we have a very wide product range, we don't usually offer full
products price list.
3. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T , L/C
Warranty: 1 year
4.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
5.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
6. Q: Why choose Xinyi for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1. More than 25 years in manufacturing farming machine.
2. More Professional Sales staffs to guarantee the better service.
3. More agri machines for your choice.
4. More New products into your range to avoid price competition.
5. Larger quantity production and shipment.
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only 7 days.
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: "XINYI" brand and "CE"ceitification.
11.Lower repair rate and bad review rate.
12. Have received unstinting support from the Chinese government.
If you have any questions, please do not hesitate to contact me
