Endress+Hauser RSG45-1JKV00 | Memograph M Data Logger & Energy Manager

Endress+Hauser RSG45-1JKV00 Advanced Data Manager. 7-inch TFT color touchscreen, 20 analog/HART inputs, 12 relay outputs, 100-230V AC supply, Modbus, Profibus, Ethernet/IP.

Product Overview

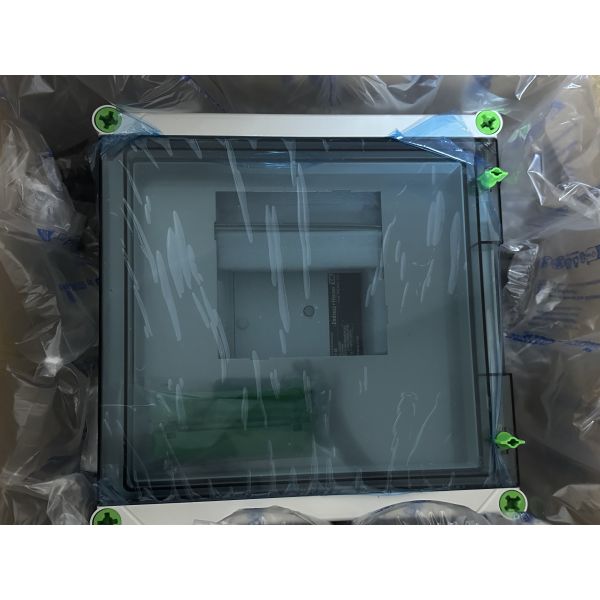

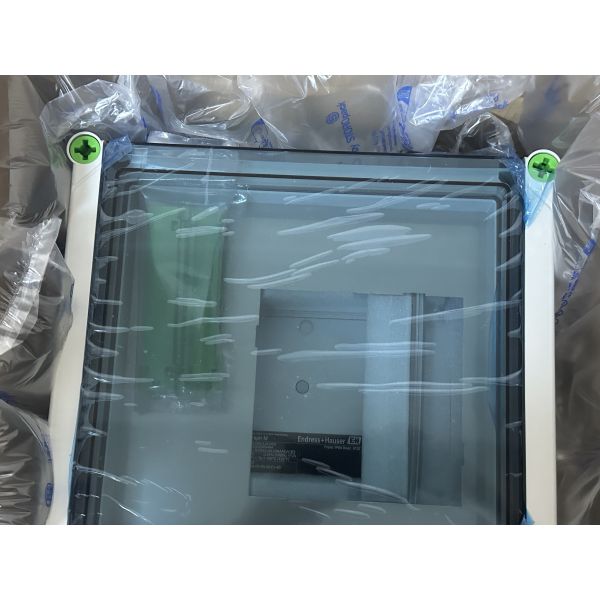

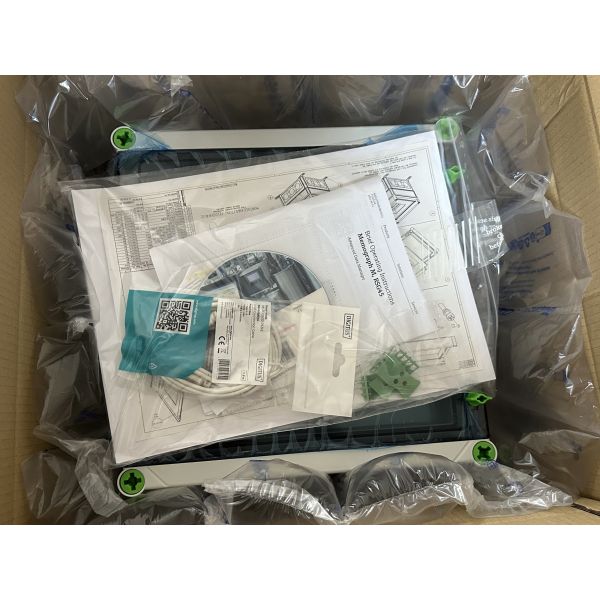

The Endress+Hauser RSG45-1JKV00​ is a panel-mounted Advanced Data Manager​ from the Memograph M​ series. It functions as a central data logging, energy management, and process visualization station. This specific variant features a 7-inch TFT color touchscreen, modular I/O card slots for analog, HART, and digital signals, and supports multiple fieldbus protocols for integration into industrial automation and energy monitoring systems.

Technical Specifications (Hardware & I/O)

Technical Specifications (Software & Communication)

Key Features

• Modular I/O Expansion:​ The base unit can be expanded with plug-in cards for HART, analog, and digital signals to match the exact channel count needed.

• High-Speed Data Logging:​ Capable of recording process values at a fast 100 ms cycle for detailed trend analysis and audit trails.

• HART Transparency:​ Acts as a HART gateway, allowing direct access to HART field devices via software like FieldCare without interrupting the 4-20 mA loop.

• Energy Management Software:​ Optional packages for precise heat quantity and steam mass calculation in HVAC and process heating applications.

Applications

• Energy Monitoring:​ Heat and cooling metering in district heating, power plants, and industrial process lines.

• Process Data Logging:​ Centralized recording of temperature, pressure, and flow for batch processes and quality assurance.

• Plant Visualization:​ Local and remote monitoring of process values via integrated web server and large 7-inch display.
