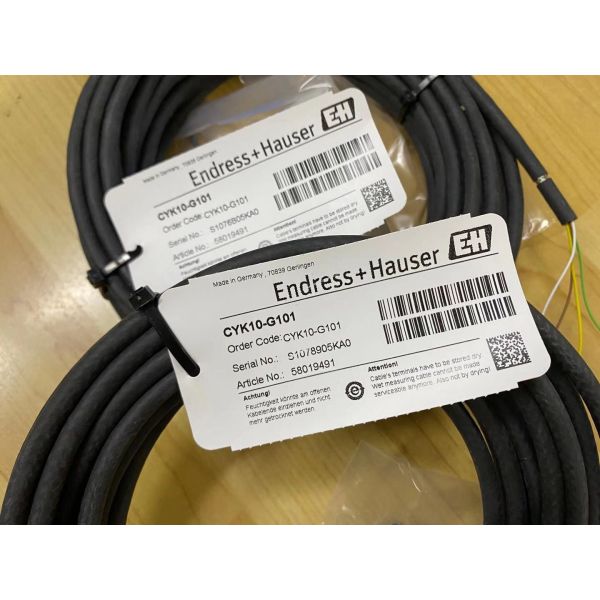

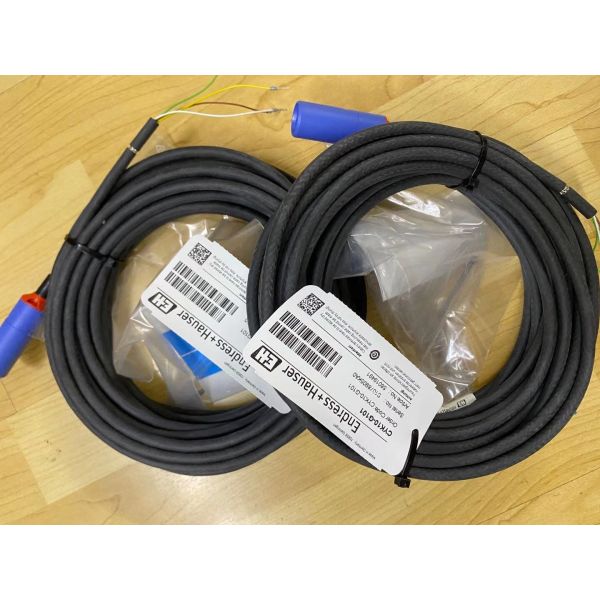

Endress+Hauser CYK10-G101 | Memosens Sensor Extension Cable, 10m, PVC Jacket
Endress+Hauser CYK10-G101 | Memosens Sensor Extension Cable, 10m, PVC Jacket
Endress+Hauser CYK10-G101 | Memosens Sensor Extension Cable, 10m, PVC Jacket
Endress+Hauser CYK10-G101 | Memosens Sensor Extension Cable, 10m, PVC Jacket
Endress+Hauser CYK10-G101 | Memosens Sensor Extension Cable, 10m, PVC Jacket
Endress+Hauser CYK10-G101 | Memosens Sensor Extension Cable, 10m, PVC Jacket
Endress+Hauser CYK10-G101 | Memosens Sensor Extension Cable, 10m, PVC Jacket
Endress+Hauser CYK10-G101 | Memosens Sensor Extension Cable, 10m, PVC Jacket
Specifications
MOQ :
1
Ambient Temperature :
-
Model Number :
CYK10-G101
Power Supply :
1
Delivery Time :
Negotiable
Brand Name :
Endress+Hauser
Price :
Negotiable
Place of Origin :
DE
Packaging Details :
carton
Supply Ability :
100pcs per month
Certifications :
S
Payment Terms :
T/T,XT,ALIPAY
Electrical Rating :
G
Certification :
ATEX
Description
Endress+Hauser CYK10-G101 | Memosens Sensor Extension Cable, 10m, PVC Jacket
Endress+Hauser CYK10-G101 Memosens digital sensor extension cable. 10m length, PVC jacket, IP68 connectors both ends, for CPS/CPF/COS/CLS Memosens sensors to Liquiline transmitters (non-Ex area).

Product Overview

The Endress+Hauser CYK10-G101​ is a Memosens sensor extension cable​ used to connect digital pH, ORP, conductivity, dissolved oxygen, and turbidity sensors (Memosens 2.0) to a transmitter or junction box. It features IP68-rated Memosens inductive connectors on both ends​ and a PVC outer jacket​ (vs. PUR on the -Axxx series). This variant has a 10-meter cable length​ and is part of the CYK10 series for non-hazardous area installations.

Technical Specifications (Electrical & Functional)

Parameter
Specification
Model / Order Code​
CYK10-G101​
Product Family​
CYK10 (Memosens Extension Cable)
Compatible Sensors​
All Endress+Hauser Memosens​ sensors (CPS11D, CPF81D, CLS54, COS61, CUS52D, etc.)
Compatible Transmitters​
Liquiline CM442, CM42, CM82, etc. with Memosens input
Signal Type​
Digital (Memosens Protocol — Inductive Coupling)
Max. Total Sensor+Cable Length​
Typically up to 50 m​ (sensor + extensions combined, check transmitter specs)
Shielding​
Braided shield + foil (EMC protected)

Technical Specifications (Mechanical & Environmental)

Parameter
Specification
Cable Length​
10 m​ (fixed — G-suffix = PVC; A-suffix = PUR. Other G lengths: G051=1m, G151=5m, G301=20m)
Connector Type (Both Ends)​
Memosens Inductive Plug (C8Y Type), IP68 when mated
Cable Outer Diameter​
~7.2 mm
Cable Jacket Material​
PVC​ (vs. PUR on CYK10-A101 — less resistant to oils/microbes, suitable for dry/cabinet use)
Operating Temperature (Cable)​
-30 … +70 °C​ (PVC version)
Area Classification​
Non-hazardous Area​ (Standard CYK10; Ex-i version = CYK10-xxEx)
Bend Radius (Installed)​
≥ 10 × Ø

Key Features

  • Plug & Play Extension:​ Daisy-chains between sensor and transmitter or between sensor and another CYK10 cable — no tools required.
  • Memosens Protocol Transparency:​ Fully transparent to digital signal; calibration data, sensor ID, and diagnostics pass through unaltered.
  • PVC Jacket Option:​ Economical PVC version for indoor/cabinet installations​ where PUR chemical resistance is not required.
  • IP68 Mated Connection:​ Dust-tight and waterproof when plugged into sensor or transmitter port.

Applications

  • Indoor Cable Runs:​ Extending sensor connections inside control panels or between patch boxes in dry environments.
  • Retrofit & Relocation:​ Allowing sensor repositioning without replacing the entire sensor assembly in non-aggressive environments.
  • Spare & Stock Optimization:​ Standardizing on one sensor length and using PVC-jacketed extension cables (1m/5m/10m/20m) for indoor plant rooms.
Note: For outdoor, washdown, or chemically exposed runs, the PUR-jacketed CYK10-A101 (10m PUR)​ is recommended. For intrinsically safe / Ex i applications, use the CYK10-xxEx​ variant (e.g., CYK10-G101Ex). For analog (non-Memosens) pH electrodes, use the CPK-series coaxial cable.
