1/3HP 1750RPM TEFC Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V PMDC Motor for Conveyor Pump Packaging Automation Equipment
1/3HP 1750RPM TEFC Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V PMDC Motor for Conveyor Pump Packaging Automation Equipment
1/3HP 1750RPM TEFC Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V PMDC Motor for Conveyor Pump Packaging Automation Equipment
1/3HP 1750RPM TEFC Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V PMDC Motor for Conveyor Pump Packaging Automation Equipment
Specifications
Model Number :
PMDC
Payment Terms :
T/T
Speed(RPM) :
1750rpm
Rated Voltage :
12V/24V/90V
Price :
Negotiation
Insulation Class :
Class F (155°C)
Supply Ability :
10000pcs per month
Name :
1/3hp PMDC Motor
Certification :
UL
MOQ :
10 pcs
Delivery Time :
25 days
Frame :
48C
Packaging Details :
Cartons/pallet
Power :
1/3HP
Brand Name :
BM
Place of Origin :
China
Description

1/3HP 1750RPM TEFC Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V PMDC Motor for Conveyor Pump Packaging Automation Equipment

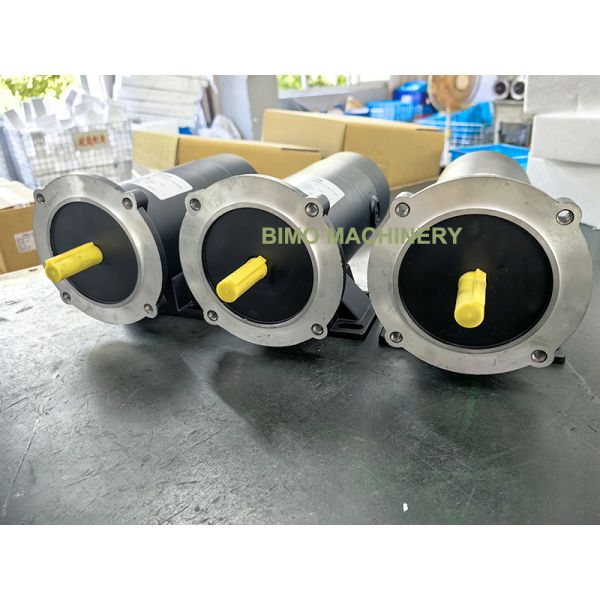

1, This 1/3HP 1750RPM TEFC Permanent Magnet DC Motor is a multi-voltage PMDC brushed motor offered in 12V, 24V and 90VDC options.

2, Adopting Totally Enclosed Fan Cooled TEFC design, this 0.33HP dc motor features IP54 dust & splash resistance, Class F insulation and stable constant torque at 1750 full load RPM.

3, Built with high energy permanent magnet and replaceable carbon brushes, it supports S1 continuous running, widely used in battery-powered machinery, small conveyors, DC pumps and light industrial equipment. Standard NEMA frame foot & C-face mounting for direct replacement.

Power(HP) Speed(RPM) Arm Volt NEMA FRAME ENCL. Curret(Amp.) Torque(In.Ibs) App.Weights(Ibs)
1/4 1750 12 56C TEFC 21.0 9 21
1/4 1750 24 56C TEFC 10.5 9 21
1/3 1750 12 56C TEFC 27.0 12 23
1/3 1750 24 56C TEFC 13.5 12 23
1/2 1750 12 56C TEFC 39.0 18 25
1/2 1750 24 56C TEFC 20.0 18 25
3/4 1750 12 56C TEFC 63.6 27 30
3/4 1750 24 56C TEFC 31.8 27 30
3/4 3600 12 56C TEFC 63.6 13 23
3/4 3600 24 56C TEFC 31.8 13 23
1 1750 12 56C TEFC 80.0 36 32
1 1750 24 56C TEFC 40.0 36 32
1 3600 12 56C TEFC 80.0 17.6 25
1 3600 24 56C TEFC 40.0 17.6 25
1.5 1750 24 56C TEFC 60.0 54.3 43
1.5 3600 24 56C TEFC 60.0 26.4 30

1/3HP 1750RPM TEFC Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V PMDC Motor for Conveyor Pump Packaging Automation Equipment1/3HP 1750RPM TEFC Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V PMDC Motor for Conveyor Pump Packaging Automation Equipment

1/3HP 1750RPM TEFC Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V PMDC Motor for Conveyor Pump Packaging Automation Equipment

1/3HP 1750RPM TEFC Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V PMDC Motor for Conveyor Pump Packaging Automation Equipment

FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
