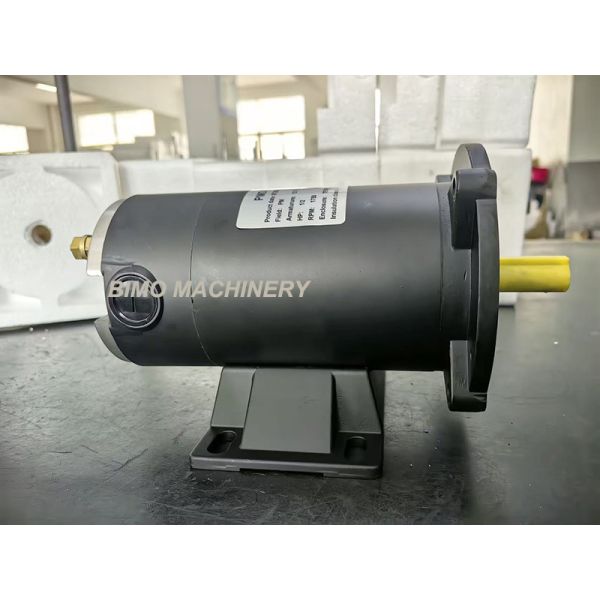

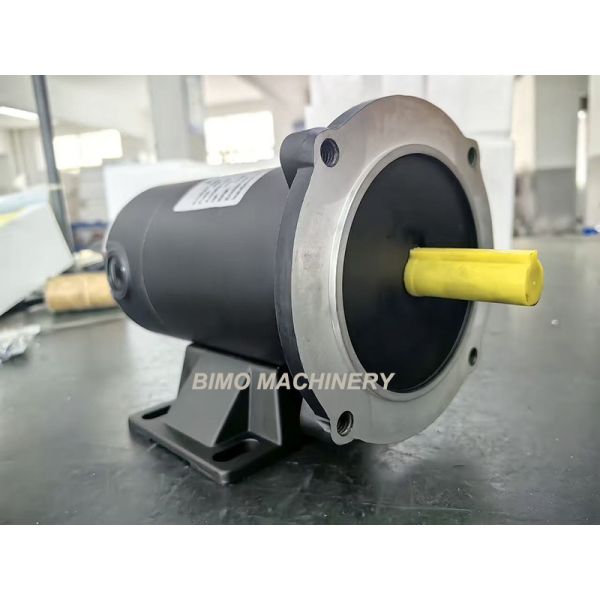

DC MOTOR 2HP 145TC Frame 180V/1750RPM TEFC PMDC Electric Motor
DC MOTOR 2HP 145TC Frame 180V/1750RPM TEFC PMDC Electric Motor
DC MOTOR 2HP 145TC Frame 180V/1750RPM TEFC PMDC Electric Motor
DC MOTOR 2HP 145TC Frame 180V/1750RPM TEFC PMDC Electric Motor
DC MOTOR 2HP 145TC Frame 180V/1750RPM TEFC PMDC Electric Motor
DC MOTOR 2HP 145TC Frame 180V/1750RPM TEFC PMDC Electric Motor
DC MOTOR 2HP 145TC Frame 180V/1750RPM TEFC PMDC Electric Motor
DC MOTOR 2HP 145TC Frame 180V/1750RPM TEFC PMDC Electric Motor
Specifications
Brand Name :
BM
Model Number :
145TC-2hp
Certification :
UL
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10000pcs per month
Delivery Time :
25 days
Packaging Details :
Cartons/pallet
Name :
145TC DC Motor
Speed(RPM) :
1750rpm
Power :
2hp
Efficiency :
IEC
Voltage :
180v
Frame :
145TC
Description

DC MOTOR 2HP 145TC Frame 180V/1750RPM TEFC PMDC Electric Motor

1. Now we can manufacture motors with voltage from 12v to 300v ,power from 40w to 3000w,speed from 500 to 6000rpm.

2. Flange:NEMA 56C ,NEMA 48C ,IEC and so on

3. Class F ,IP54

4. Appreciations:widely used in printing and packing machines,working line,machine tools,gym equipments,fans,various mechanical and automatic control systems.

Power(HP) Speed(RPM) Arm Volt NEMA FRAME ENCL. Curret(Amp.) Torque(In.Ibs) App.Weights(Ibs)
1/4 1750 12 56C TEFC 21.0 9 21
1/4 1750 24 56C TEFC 10.5 9 21
1/3 1750 12 56C TEFC 27.0 12 23
1/3 1750 24 56C TEFC 13.5 12 23
1/2 1750 12 56C TEFC 39.0 18 25
1/2 1750 24 56C TEFC 20.0 18 25
3/4 1750 12 56C TEFC 63.6 27 30
3/4 1750 24 56C TEFC 31.8 27 30
3/4 3600 12 56C TEFC 63.6 13 23
3/4 3600 24 56C TEFC 31.8 13 23
1 1750 12 56C TEFC 80.0 36 32
1 1750 24 56C TEFC 40.0 36 32
1 3600 12 56C TEFC 80.0 17.6 25
1 3600 24 56C TEFC 40.0 17.6 25
1.5 1750 24 56C TEFC 60.0 54.3 43
1.5 3600 24 56C TEFC 60.0 26.4 30

DC MOTOR 2HP 145TC Frame 180V/1750RPM TEFC PMDC Electric MotorDC MOTOR 2HP 145TC Frame 180V/1750RPM TEFC PMDC Electric MotorDC MOTOR 2HP 145TC Frame 180V/1750RPM TEFC PMDC Electric Motor

DC MOTOR 2HP 145TC Frame 180V/1750RPM TEFC PMDC Electric Motor

DC MOTOR 2HP 145TC Frame 180V/1750RPM TEFC PMDC Electric Motor

DC MOTOR 2HP 145TC Frame 180V/1750RPM TEFC PMDC Electric Motor

FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
