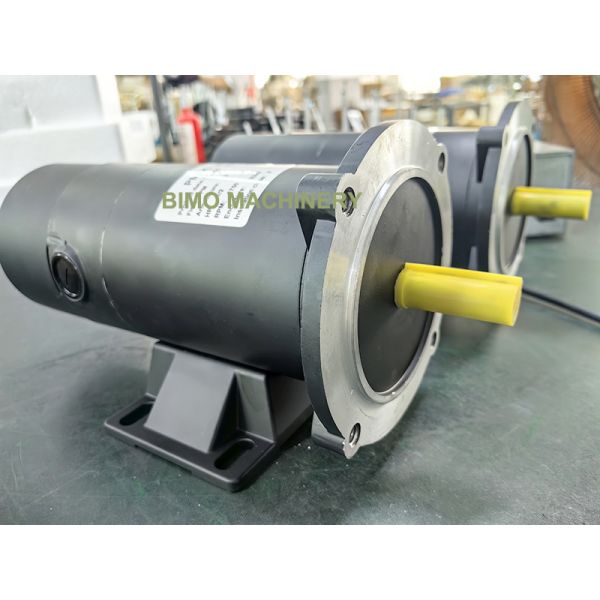

PMDC 90V 1HP TEFC Permanent Magnet DC Motor NEMA 56C Frame 1750RPM / 1800RPM for Mechanical Bull Riding Machine
PMDC 90V 1HP TEFC Permanent Magnet DC Motor NEMA 56C Frame 1750RPM / 1800RPM for Mechanical Bull Riding Machine
PMDC 90V 1HP TEFC Permanent Magnet DC Motor NEMA 56C Frame 1750RPM / 1800RPM for Mechanical Bull Riding Machine
PMDC 90V 1HP TEFC Permanent Magnet DC Motor NEMA 56C Frame 1750RPM / 1800RPM for Mechanical Bull Riding Machine
Specifications
Model Number :
PMDC
Payment Terms :
T/T
Speed(RPM) :
1800rpm
Rated Voltage :
90V
Price :
Negotiation
Insulation Class :
Class F (155°C)
Supply Ability :
10000pcs per month
Name :
90V 0.75KW DC MOTOR
Certification :
UL
MOQ :
10 pcs
Delivery Time :
25 days
Frame :
56C
Power :
0.75KW
Packaging Details :
Cartons/pallet
Brand Name :
BM
Place of Origin :
China
Description

PMDC 90V 1HP TEFC Permanent Magnet DC Motor NEMA 56C Frame 1750RPM / 1800RPM for Mechanical Bull Riding Machine

1, This is a high-performance PMDC permanent magnet brushed DC motor customized for mechanical bull amusement riding equipment, standard NEMA 56C frame size, rated power 1HP, working voltage 90VDC, two speed options 1750RPM and 1800RPM for different bull strength adjustment demands.
2, Adopting TEFC Totally Enclosed Fan Cooled full closed housing design, the motor can block venue dust, foam, debris and slight water splashes, effectively avoiding coil short circuit and burnout caused by long-term operation in amusement environment. Different from series-wound DC motors, rare earth permanent magnet rotor provides stable constant low-speed torque, perfectly adapt to the frequent start-stop, forward and reverse reciprocating shaking of mechanical bull.
3, PMDC 90V 1HP TEFC permanent magnet DC motor, NEMA 56C frame, 1750RPM / 1800RPM optional speed, fully enclosed fan cooled, stable constant torque, shock resistant, frequent CW/CCW rotation, dedicated PMDC drive motor for mechanical bull riding amusement machine, compatible with PWM speed controller, low noise, long service life, rodeo bull replacement spare motor, CE certified, OEM & ODM available.

Power(HP) Speed(RPM) Arm Volt NEMA FRAME ENCL. Curret(Amp.) Torque(In.Ibs) App.Weights(Ibs)
1/4 1750 12 56C TEFC 21.0 9 21
1/4 1750 24 56C TEFC 10.5 9 21
1/3 1750 12 56C TEFC 27.0 12 23
1/3 1750 24 56C TEFC 13.5 12 23
1/2 1750 12 56C TEFC 39.0 18 25
1/2 1750 24 56C TEFC 20.0 18 25
3/4 1750 12 56C TEFC 63.6 27 30
3/4 1750 24 56C TEFC 31.8 27 30
3/4 3600 12 56C TEFC 63.6 13 23
3/4 3600 24 56C TEFC 31.8 13 23
1 1750 12 56C TEFC 80.0 36 32
1 1750 24 56C TEFC 40.0 36 32
1 3600 12 56C TEFC 80.0 17.6 25
1 3600 24 56C TEFC 40.0 17.6 25
1.5 1750 24 56C TEFC 60.0 54.3 43
1.5 3600 24 56C TEFC 60.0 26.4 30

PMDC 90V 1HP TEFC Permanent Magnet DC Motor NEMA 56C Frame 1750RPM / 1800RPM for Mechanical Bull Riding Machine

PMDC 90V 1HP TEFC Permanent Magnet DC Motor NEMA 56C Frame 1750RPM / 1800RPM for Mechanical Bull Riding Machine

PMDC 90V 1HP TEFC Permanent Magnet DC Motor NEMA 56C Frame 1750RPM / 1800RPM for Mechanical Bull Riding Machine

PMDC 90V 1HP TEFC Permanent Magnet DC Motor NEMA 56C Frame 1750RPM / 1800RPM for Mechanical Bull Riding Machine

FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
