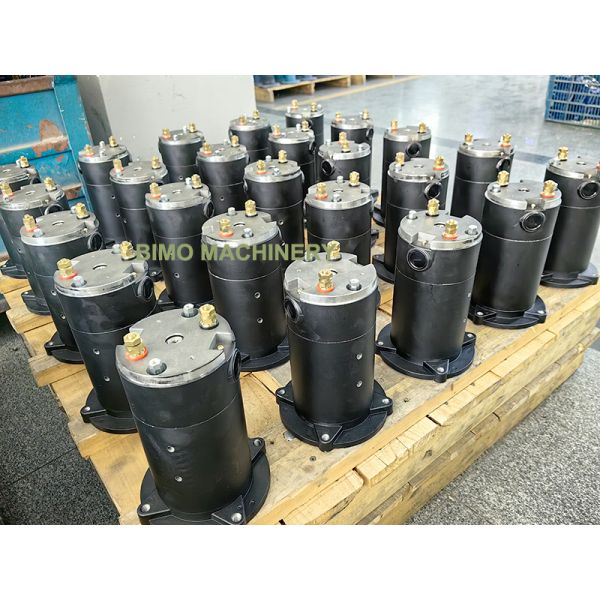

3/4HP 24V DC Permanent Magnet Brushed Motor NEMA 56C Frame PMDC Motor
3/4HP 24V DC Permanent Magnet Brushed Motor NEMA 56C Frame PMDC Motor
3/4HP 24V DC Permanent Magnet Brushed Motor NEMA 56C Frame PMDC Motor
3/4HP 24V DC Permanent Magnet Brushed Motor NEMA 56C Frame PMDC Motor
Specifications
Model Number :
PMDC
Price :
Negotiation
Net Weight :
10 KG / 22 LBS
Supply Ability :
10000pcs per month
Name :
24V PMDC motor
Certification :
UL
Payment Terms :
T/T
Speed(RPM) :
1750rpm
Voltage :
24V
MOQ :
10 pcs
Delivery Time :
25 days
Frame :
56C
Power :
3/4HP
Packaging Details :
Cartons/pallet
Brand Name :
BM
Place of Origin :
China
Description

3/4HP 24V DC Permanent Magnet Brushed Motor NEMA 56C Frame PMDC Motor

1, Our NEMA 56C 3/4HP 24V brushed permanent magnet DC motor (PMDC motor) strictly complies with NEMA 56C frame mechanical standards,

2,supporting direct drop-in replacement without modification for all existing 56C mount equipment. Equipped with high-performance rare earth permanent magnets,

3, this 0.75HP 24V DC brush motor features high starting torque, stable constant torque output and wide adjustable speed ratio up to 20:1 when matched with PWM/SCR DC speed controllers.

Power(HP) Speed(RPM) Arm Volt NEMA FRAME ENCL. Curret(Amp.) Torque(In.Ibs) App.Weights(Ibs)
1/4 1750 12 56C TEFC 21.0 9 21
1/4 1750 24 56C TEFC 10.5 9 21
1/3 1750 12 56C TEFC 27.0 12 23
1/3 1750 24 56C TEFC 13.5 12 23
1/2 1750 12 56C TEFC 39.0 18 25
1/2 1750 24 56C TEFC 20.0 18 25
3/4 1750 12 56C TEFC 63.6 27 30
3/4 1750 24 56C TEFC 31.8 27 30
3/4 3600 12 56C TEFC 63.6 13 23
3/4 3600 24 56C TEFC 31.8 13 23
1 1750 12 56C TEFC 80.0 36 32
1 1750 24 56C TEFC 40.0 36 32
1 3600 12 56C TEFC 80.0 17.6 25
1 3600 24 56C TEFC 40.0 17.6 25
1.5 1750 24 56C TEFC 60.0 54.3 43
1.5 3600 24 56C TEFC 60.0 26.4 30

3/4HP 24V DC Permanent Magnet Brushed Motor NEMA 56C Frame PMDC Motor3/4HP 24V DC Permanent Magnet Brushed Motor NEMA 56C Frame PMDC Motor

3/4HP 24V DC Permanent Magnet Brushed Motor NEMA 56C Frame PMDC Motor

3/4HP 24V DC Permanent Magnet Brushed Motor NEMA 56C Frame PMDC Motor

FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
