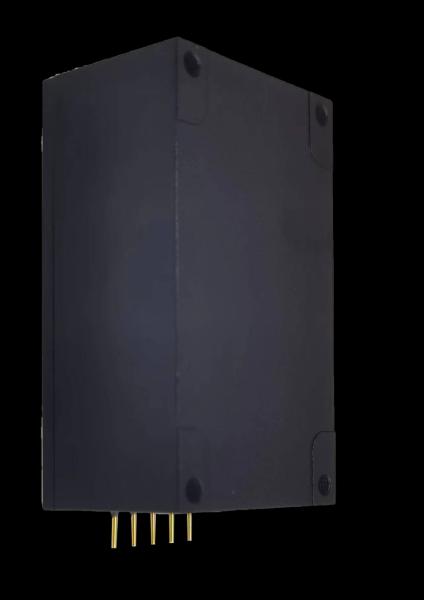

Highly Unwearable Fiber Optic Gyroscope with RS422 Output Mode and Random Walk Coefficient ≤0.03°/√h
Highly Unwearable Fiber Optic Gyroscope with RS422 Output Mode and Random Walk Coefficient ≤0.03°/√h
Highly Unwearable Fiber Optic Gyroscope with RS422 Output Mode and Random Walk Coefficient ≤0.03°/√h
Highly Unwearable Fiber Optic Gyroscope with RS422 Output Mode and Random Walk Coefficient ≤0.03°/√h
Highly Unwearable Fiber Optic Gyroscope with RS422 Output Mode and Random Walk Coefficient ≤0.03°/√h
Highly Unwearable Fiber Optic Gyroscope with RS422 Output Mode and Random Walk Coefficient ≤0.03°/√h
Highly Unwearable Fiber Optic Gyroscope with RS422 Output Mode and Random Walk Coefficient ≤0.03°/√h
Highly Unwearable Fiber Optic Gyroscope with RS422 Output Mode and Random Walk Coefficient ≤0.03°/√h
Specifications
Brand Name :
Firepower
Model Number :
FOG-50-MP
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500/month
Delivery Time :
10 days
Packaging Details :
sponge and carton
Zero bias stability :
≤0.2°/h
Random walk coefficient :
≤0.03°/√h
Measuring range :
-500~+500°/s
Start time :
3s
Impact :
30g, 11ms
Vibration :
20~2000Hz, 0.06g²/Hz
Output mode :
RS422
Working temperature :
-40~+70℃
Storage temperature :
-55~+85℃
Power consumption :
≤6W
Description

1. Principle of operation
The implementation of fiber optic gyroscopes is mainly based on the Sagnac theory: the Sagnac effect describes the interference phenomenon of light in a rotating reference system: when light propagates in a closed loop (e.g., a fiber optic ring) in the clockwise and counterclockwise directions, if the system is in a rotating state, the optical paths of the two beams of light show a small time difference, leading to a phase difference. This phase difference is proportional to the rotational angular velocity and can therefore be used to measure rotational motion. This is how fiber optic gyroscopes work.

2. Parameters

Serial number Test item Unit Technical requirements
1 Overall dimensions mm 50×50×32
2 Start-up time s 3
3 Zero bias (°)/h ≤1
4 Zero bias stability at normal temperature (constant temperature) (10 s smooth) (°)/h ≤0.2
5

Zero bias stability with temperature change

(1 ℃/min variable temperature, 100 s smooth)

 (°)/h ≤0.5
6 Zero-bias repeatability (°)/h ≤0.1
7 Zero bias sensitivity (°)/h/Gs ≤0.5
8 Random walk coefficient (º)/h1/2 ≤0.03
9 Scale factor nonlinearity ppm ≤20
10 Scale factor asymmetry ppm ≤5
11 Scale factor repeatability ppm ≤10
12 Threshold (°)/h ≤0.2
13 Resolution (°)/h ≤0.2
14 Bandwidth Hz ≥500
15 Operating temperature ℃ -45～+70
16 Storage temperature ℃ -55～+85
17 Dynamic range (°)/s ±500
18 Supply voltage V +5
19 Normal temperature steady state power consumption W ≤2.5
20 Full temperature steady state power consumption W ≤4
21 Start the instantaneous current A <1.5


3. Characteristics compared to other types of gyroscopes

Gyro Type Key Benefits Major Disadvantages
Fiber optic gyroscope(FOG) High precision, no mechanical parts, anti-interference Higher price
Ring laser gyroscope(RLG) High accuracy for aerospace Large size and high cost
Mechanical gyroscope(MG) Traditional and reliable for low-end applications Mechanical components are prone to wear and tear, high maintenance costs
MEMS gyro Small size and low cost Lower accuracy, susceptible to environmental factors


4. High Accuracy and Stability
The fiber optic gyroscope adopts the advanced Sagnac effect detection technology, which provides high angular velocity measurement accuracy (up to 1°/h or less) and excellent zero-bias stability over long periods of time, ensuring that reliable navigation and attitude control data can still be provided in complex environments.

5. Production environments
