Specifications
Brand Name :
Firepower
Model Number :
MFOG-910
Place of Origin :
CHINA
MOQ :
1
Price :
800USD
Payment Terms :
T/T
Supply Ability :
200/MONTH
Delivery Time :
30 DAYS
Packaging Details :
Sponge+ box
Bias stability （10s） :
≤0.8°/h
Bias Repeatability test 6 times :
≤0.8°/h
Angle random walk :
≤0.02°/h
Weight :
≤150g.
Size :
82mm × 82mm × 19.5mm
Power Consumption :
≤1.5W
Description

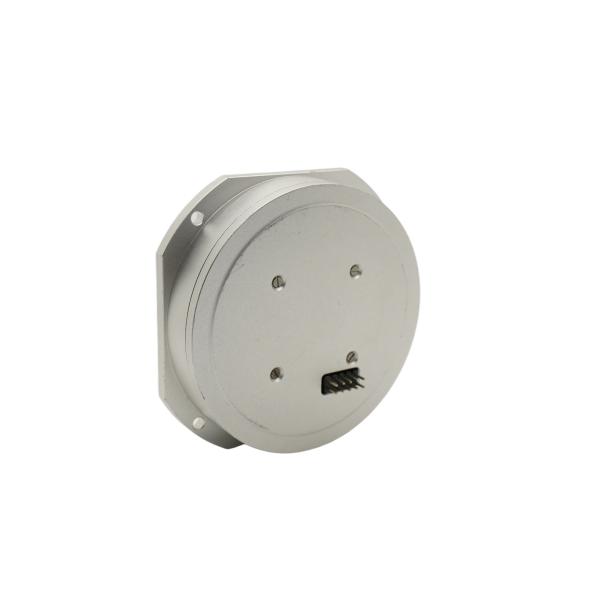

MFOG-910 micro-nano fiber optic gyroscope offers aerospace-grade performance with minimal size and weight. Using the Sagnac interferometric principle, it delivers accurate angular rate data essential for flight attitude and orientation measurement. Compact, durable, and maintenance-free, it withstands high vibration and wide temperature ranges. Applications: Satellite orientation, UAV stabilization, aircraft navigation.

The product is mainly composed of the following components:
  1. an optical path assembly,
  2. Detection and control signal circuit board,
  3. Optical fiber coil skeleton, shell and other structural parts,
Appearance and dimension

The overall dimension of the product is 82mm * 82mm * 19.5mm (without plug).

Weight

≤150g.

Operating temperature

-40℃~+70℃.

Storage temperature

-55℃~+85℃.

Random vibration

Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.

Main performance parameters
Table 1 Main Performance Parameters
Serial number Project Performance indicators
1 Range (°/s) ±240
2 Scale factor (mV/ ° /s) 47±5
3 Scale factor nonlinearity (ppm) ≤1000
4 Zero-bias stability (10s, 1σ, ° /H) ≤0.8
5 Zero-bias repeatability (1σ, ° /H) ≤0.8
6 3dB Bandwidth (Hz) ≥1000
7 Random walk ( ° /√ H) ≤0.02
8 Power supply (V) 5+0.25
+12
9 Power Consumption (W) ≤1.5
10 Impact (g) ≥1500
11 Acceleration (g) ≥70
12 Life (years) (calculated assessment) ≥15
13 MTBF (Calculated Assessment) ≥100000
Mechanical and electrical interfaces
Mechanical interface

The bottom surface of the product is the installation surface, and the overall dimensions and installation interfaces are as follows:

Single Axial Fiber Optic Gyroscope VG910 for UAV Navigation
