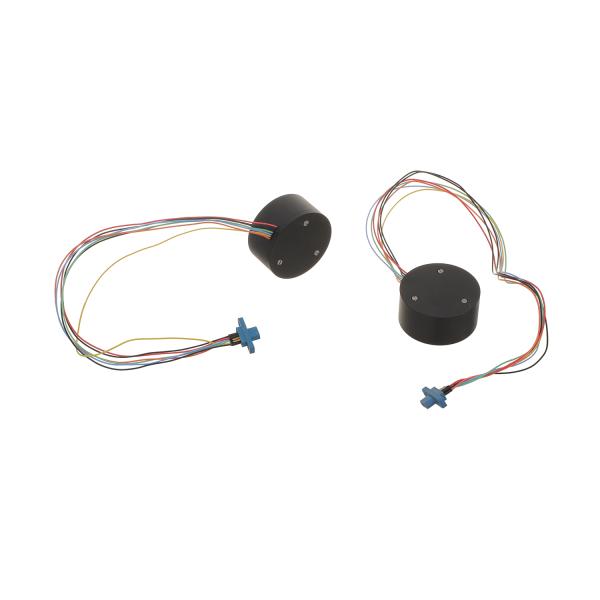

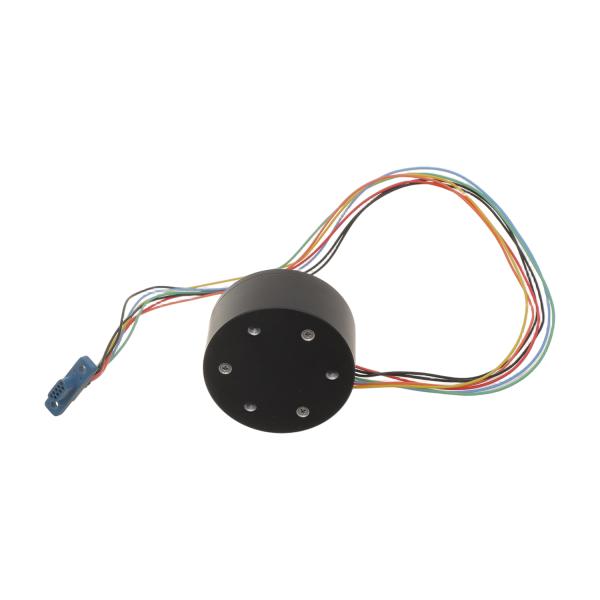

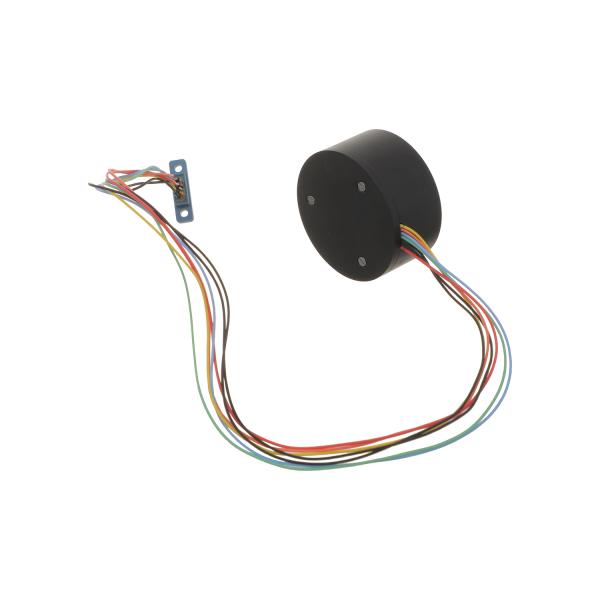

Fizoptika Vg1703 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor
Fizoptika Vg1703 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor
Fizoptika Vg1703 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor
Fizoptika Vg1703 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor
Fizoptika Vg1703 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor
Fizoptika Vg1703 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor
Fizoptika Vg1703 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor
Fizoptika Vg1703 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor
Fizoptika Vg1703 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor
Fizoptika Vg1703 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor
Fizoptika Vg1703 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor
Fizoptika Vg1703 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor
Specifications
Brand Name :
Firepower
Model Number :
MFOG-40
Place of Origin :
China
MOQ :
1
Price :
1350$
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
500/month
Delivery Time :
1 week
Packaging Details :
Sponge + Carton
Range :
±300(°/s
Zero-bias stability( (10s, 1σ) :
≤0.5°/h
Angular random walk :
≤0.02°/h
3dB Bandwidth :
≥300Hz
Zero-bias repeatability( (1σ) :
≤0.5°/h
Scale factor nonlinearity :
≤500ppm
Dimension :
φ40X20mm
Power Consumption :
≤1.5W
Description

Fizoptika VG1703 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor


  • Product Description

MFOG-40 micro-nano fiber optic gyroscope is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.


The product is mainly composed of the following components:

A) an optical path assembly;

B) Detection and control signal circuit board;

C) Optical fiber ring skeleton, shell and other structural parts

  • Main performance parameters

Serial number

Project

Performance indicators

1

Range (°/s)

±300

2

Scale Factor (LSB/ o /s)

3600

3

Scale factor nonlinearity (ppm)

≤500

4

Zero-bias stability (10s, 1σ, °/H)

≤0.5

5

Zero-bias repeatability (1σ, °/H)

≤0.5

6

Angular random walk (°/H 1/2

≤0.02

7

Zero-bias stability at full temperature (10s, 1σ, -40 ℃ ~ + 65 ℃, °/H)

≤1.5

8

3dB Bandwidth (Hz)

≥300

9

Power supply (V)

5+0.15

10

Power Consumption (W)

≤1.5

11

Dimension (mm)

φ40X20

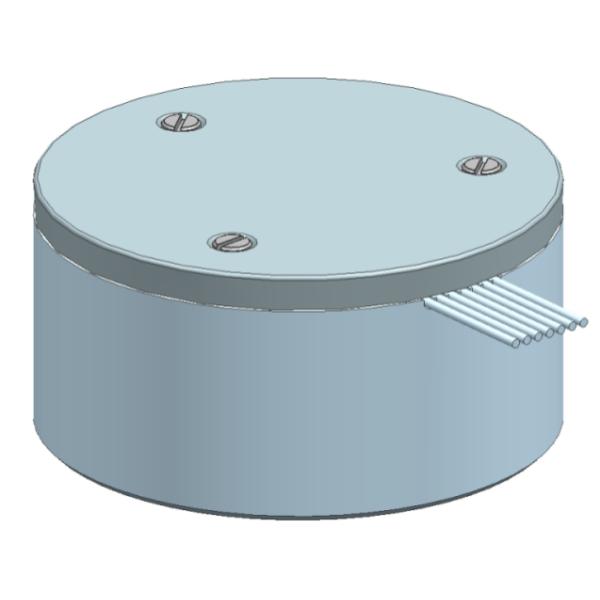

  • Outline Drawing
  • Fizoptika Vg1703 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor

Fizoptika Vg1703 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor
