Specifications
Dimensions :
60 x 60 x 60 mm
Certification :
ISO 9001:2015, CE, RoHS
Heading Accuracy (1 sigma) :
+/-0.7 deg
Brand Name :
FIREPOWER
Model Number :
NF102
Place of Origin :
CHINA
Description

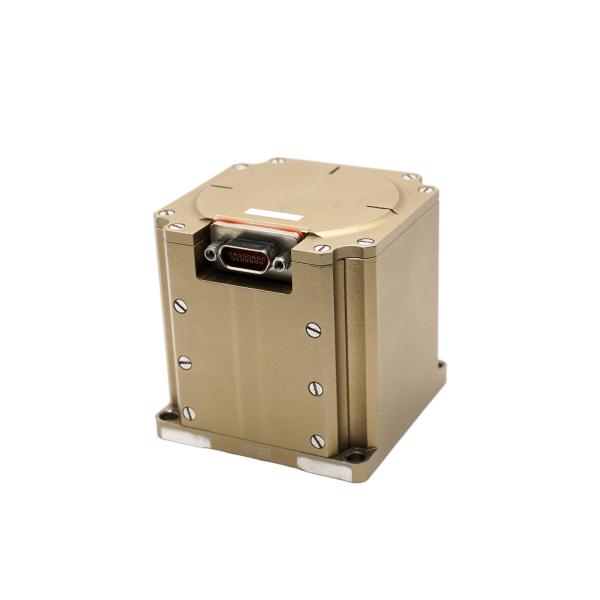

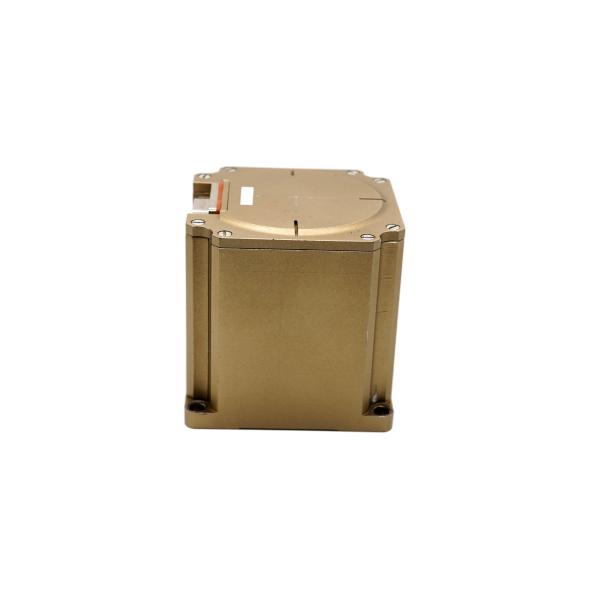

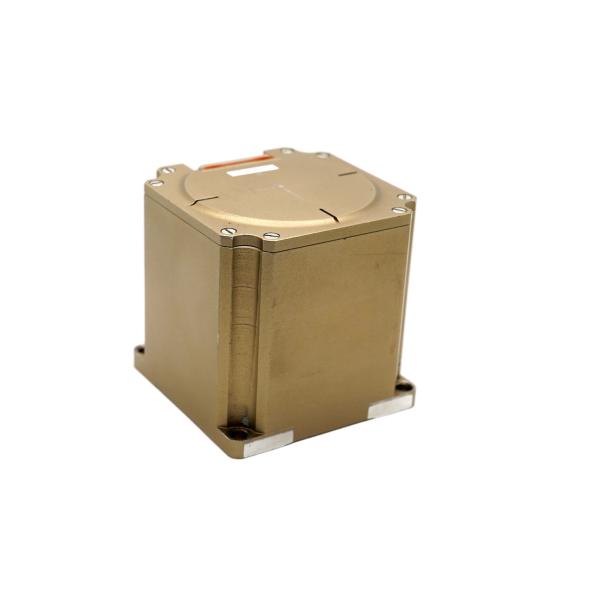

NF102 North Seeking Gyro Module
The NF-102 North Seeking Gyro Module is a compact heading reference solution for portable surveying and mapping instruments. Its 60mm cube form factor, under 400g weight, and 1W power consumption enable integration into handheld and tripod-mounted survey equipment requiring GPS-independent north reference in urban canyons and forested areas.
Core Product Advantages
  • GPS-Independent North: Provides true north when GPS compass is unreliable in urban or forested areas
  • 60mm Cube Under 400g: Portable enough for handheld survey instruments and field equipment
  • 1W Battery-Friendly Power: Extends field operation time on battery-powered survey tools
  • +/-0.7 deg Accuracy: Sufficient precision for construction layout and topographic surveying

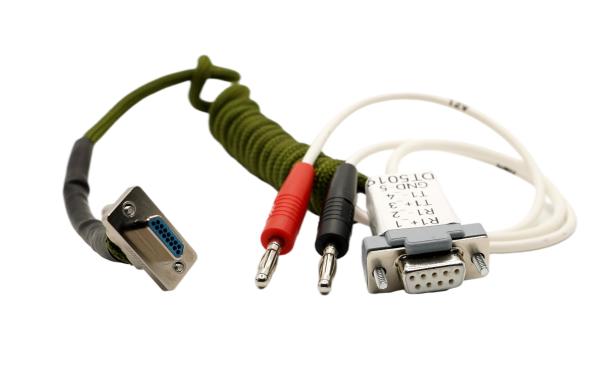

  • RS422 Digital Output: Easy data integration with survey data collectors and logging systems
Technical Specifications
Parameter NF-102 Performance
Dimensions 60 x 60 x 60 mm
Weight <= 400 g
Power Consumption <= 1 W
Voltage Range 9 - 12 V DC
Heading Accuracy (1 sigma) +/- 0.7 deg
Tilt Adaptation Range +/- 15 deg
Operating Temperature -30 deg C to +65 deg C
Communication RS422
Ideal Applications
  • Total Station North Alignment: Quick north reference for construction layout and surveying
  • Portable GIS Data Collectors: Heading data for field mapping and asset inventory systems
  • Underground Utility Mapping: Magnetic-free heading for pipe and cable location equipment
  • Archaeological Survey Tools: Precise orientation for excavation planning and site documentation
  • Forestry Survey Equipment: Reliable north under dense canopy where GPS compass fails
Why Choose Our NF-102?
  • China Direct Pricing: 30-40% savings compared to European north finding modules
  • Field-Proven Reliability: Built for outdoor surveying in all weather conditions
  • Quick Delivery: Fast lead times for evaluation units and volume orders
  • ISO-Certified Manufacturing: Quality assurance from our ISO-certified production facility
