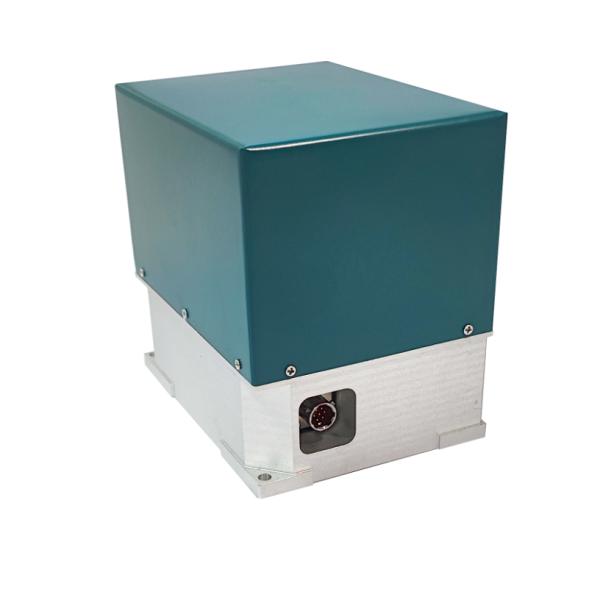

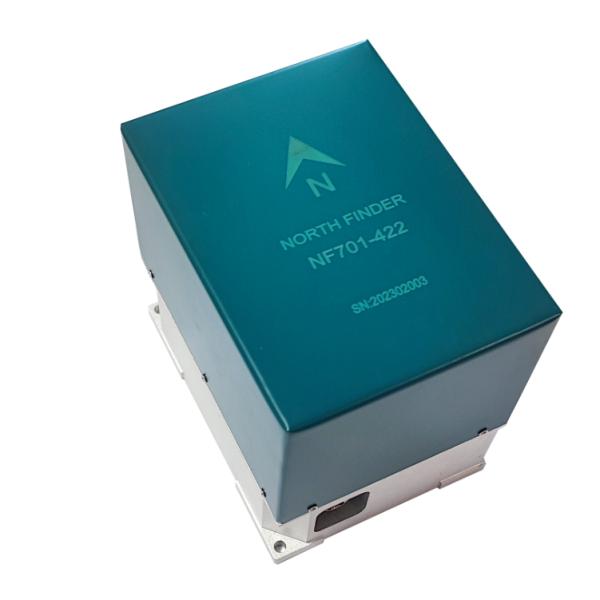

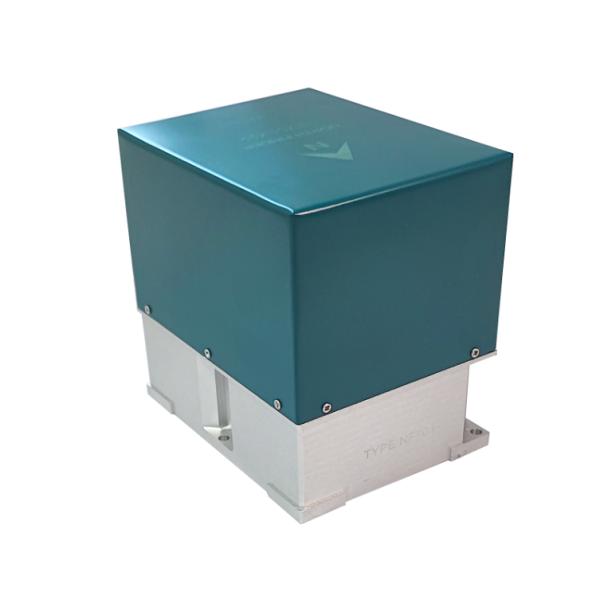

High Accuracy Gyro North Finder Fog North Seeking Fiber Optic Gyro
High Accuracy Gyro North Finder Fog North Seeking Fiber Optic Gyro
High Accuracy Gyro North Finder Fog North Seeking Fiber Optic Gyro
High Accuracy Gyro North Finder Fog North Seeking Fiber Optic Gyro
High Accuracy Gyro North Finder Fog North Seeking Fiber Optic Gyro
High Accuracy Gyro North Finder Fog North Seeking Fiber Optic Gyro
High Accuracy Gyro North Finder Fog North Seeking Fiber Optic Gyro
High Accuracy Gyro North Finder Fog North Seeking Fiber Optic Gyro
High Accuracy Gyro North Finder Fog North Seeking Fiber Optic Gyro
High Accuracy Gyro North Finder Fog North Seeking Fiber Optic Gyro
High Accuracy Gyro North Finder Fog North Seeking Fiber Optic Gyro
High Accuracy Gyro North Finder Fog North Seeking Fiber Optic Gyro
Specifications
Model Number :
NF100
MOQ :
1
Price :
8700
Payment Terms :
T/T
Brand Name :
Firepower
Certification :
CE ROHS
Place of Origin :
CHINA
product name :
north seeker
north accuracy :
≤0.5deg
North seek time :
<3min
Horizontal accuracy :
≤0.05 （1σ）
interface :
RS422
Description
High Accuracy Gyro North Finder Fog North Seeking Fiber Optic Gyro
Product Specifications
Attribute Value
Product Name North Seeker
North Accuracy ≤0.5deg
North Seek Time <3min
Horizontal Accuracy ≤0.05 (1σ)
Interface RS422
Product Description

High accuracy north finder static true north seeker FOG based true north meter

Main Technical Parameters
Parameters NF101 NF102 NF7103 Unit
North seeking accuracy (1σ) ≤0.1 ≤0.35 ≤0.5 °
North seek time ≤ 3 min
Horizontal accuracy (pitch and roll) ≤0.05 (1σ) ≤0.05 (1σ) ≤0.05 (1σ) °
Power-on preparation time 6 min
Interface RS422 /
Power supply 12 V
Power consumption 20 (peak) w
Weight <1.5 Kg
Dimension L120×W90×H115 mm

Working mode: After power on, it starts self-test. After the self-test completes, it will respond to the upper computer's north seek command. After north seeking, the result will be sent to the upper computer.

Environment Requirements
Operating temperature -20 ~ +50 °C
Storage temperature -45~ +70 °C
Relative humidity 95 %
Appearance The metal surface shall not be rusted, and the coating shall not cause blistering or peeling.
Electrical Performance

The insulation resistance between the individual circuits of the gyro north finder and its circuit and housing shall be not less than 10 MΩ under standard atmospheric conditions.

Maintainability
MTBF ≥10000 hrs
MTTR ≤30 min
Use & Maintenance
  1. If the gyro north finder is found to have a starting current greater than 1A during use, check whether the power supply voltage meets the requirements. If the inspection is correct, the professional should be repaired.
  2. If the gyro north finder is found to have no serial port data output during use, check whether the connection is correct, whether the serial port setting and data receiving format are correct. If the check is correct, the professional should be repaired.
Precautions
  1. The gyro north finder should be handled gently during the transportation process and installation process, and it is strictly forbidden to impact.
  2. The carrier should be kept absolutely stationary during the north seeking process, otherwise it will affect the accuracy of north seeking.
  3. The longitudinal and lateral inclination of the carrier should be no more than ±8°, otherwise it will affect the accuracy of north seeking.
Composition

The equipment package includes:

  • 1 set of fiber optic gyro north finder
  • One plug
