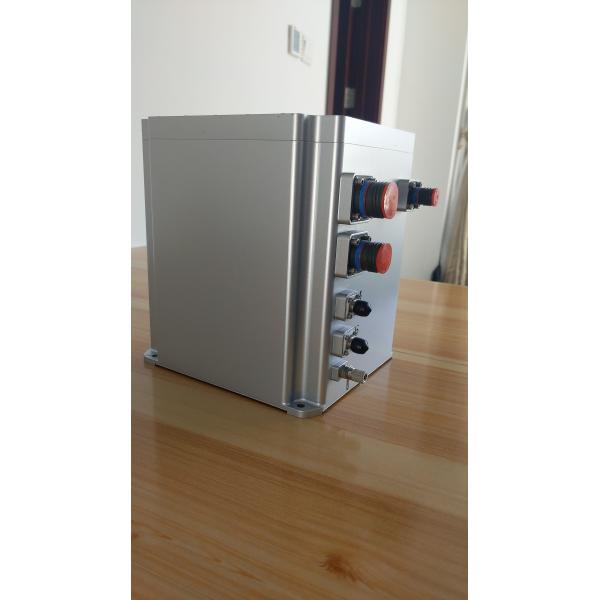

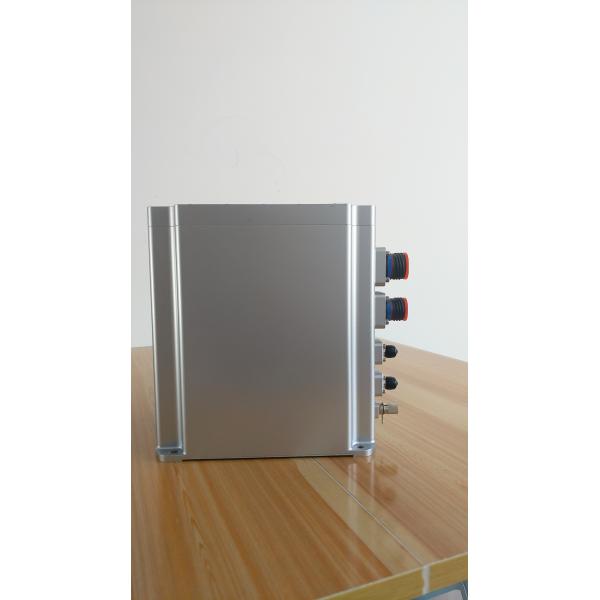

FOG Based Gyro North Finder RS422 Serial Interface 24V
FOG Based Gyro North Finder RS422 Serial Interface 24V
FOG Based Gyro North Finder RS422 Serial Interface 24V
FOG Based Gyro North Finder RS422 Serial Interface 24V
FOG Based Gyro North Finder RS422 Serial Interface 24V
FOG Based Gyro North Finder RS422 Serial Interface 24V
FOG Based Gyro North Finder RS422 Serial Interface 24V
FOG Based Gyro North Finder RS422 Serial Interface 24V
FOG Based Gyro North Finder RS422 Serial Interface 24V
FOG Based Gyro North Finder RS422 Serial Interface 24V
Specifications
Product name :
dynamic north seeker
Span ( (/s) :
100
Zero ( (/H, 1σ) :
0.1
Zero-bias stability ( (/H, Allan) :
0.02
accelerometer range :
2g
Bandwidth :
50Hz
Power :
5~12v
Output :
RS422
Brand Name :
Firepower
Model Number :
NF701-422
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1000/month
Delivery Time :
10 days for sample
Packaging Details :
carton with sponge
Description
FOG Based Gyro North Finder RS422 Serial Interface 24V
Product Specifications
Attribute Value
Product name dynamic north seeker
Span (/s) 100
Zero (/H, 1σ) 0.1
Zero-bias stability (/H, Allan) 0.02
Accelerometer range 2g
Bandwidth 50Hz
Power 5~12V
Output RS422
Product Description

FOG based north finder measurement, precise north finder system

Electrical Performance
  • Insulation resistance between the independent circuits of the gyro north finder, and between the circuit and the housing should not be less than 100 MΩ under standard atmospheric conditions

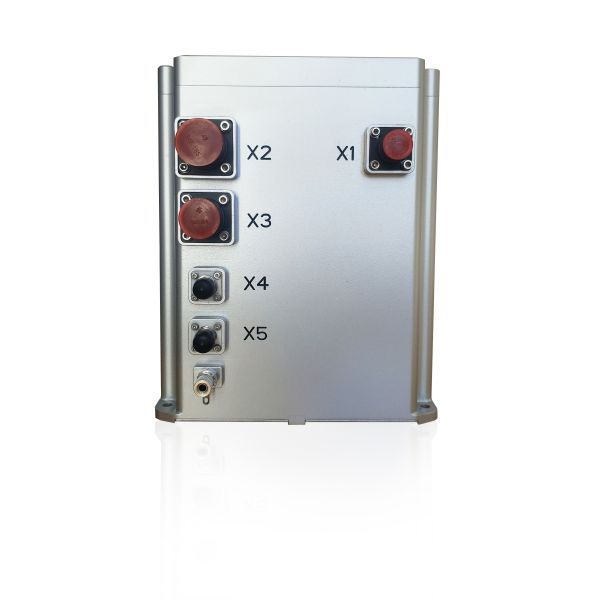

External Interface
  • 24V±4V power input
  • RS422 serial interface with 1 start bit, 8 data bits, 1 stop bit, no parity, and a baud rate of 9600bps (data in ASIC format)
Technical Parameters
Parameters NF701 Unit
North seeking accuracy (1σ) ≤0.1 °
North seek time ≤ 3 min
Horizontal accuracy (pitch and roll) ≤0.05 (1σ) °
Circular linearity (1σ) ≤0.1 °
Power-on preparation time 6 min
Interface RS422 /
Weight <5.5 Kg
Dimension 150×170×172 mm
Working Mode

After power on, it starts self-test. After the self-test completes, it will respond to the upper computer's north seek command. After north seeking, the result will be sent to upper computer.

Environment Requirements
Operating temperature -40 ~ +65 °C
Storage temperature -45~ +70 °C
Relative humidity 95%
Use & Maintenance
  • If power-on current exceeds 1000mA, check power supply voltage. If correct, consult professional for repair
  • If no serial port data output, check connection, serial port settings and data receiving format. If all correct, consult professional for repair
Product Drawing
FOG Based Gyro North Finder RS422 Serial Interface 24V
About Firepower Technology

Firepower Technology (Shenzhen) Co., Ltd. is a high-tech enterprise established in 2013, dedicated to R&D and production of quartz accelerometer, FOG, IMU, INS, rate table and other products.

The company has developed a series of autonomous navigation products with independent intellectual property rights, used in UAVs, vehicles, and ships with self-developed array algorithm as core technology.

Qualifications
  • National High-tech Enterprise
  • National Military Standard System Certification
  • Level II Confidentiality Qualification
  • Weapon and Equipment Manufacturing Qualification (Class A)
  • 17 authorized patents (including 3 invention patents)
Development Policy
  • One Heart: Dedicated to patriotism and serving the country
  • Two Integration: Civil-military and industrial integration
  • Three Leading: Innovation, cultural strength and competitiveness
  • Four Autonomy: Hardware, software, scheme and production autonomy
