Specifications
Brand Name :
Firepower
Model Number :
MFOG-1703
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100/month
Delivery Time :
7 days for sample
Packaging Details :
sponge+box
Product Name :
Fiber Optic Gyroscope
Range :
≥150 °/s
Zero-bias stability :
≤1 °/h
Bandwidth :
≥ 300 Hz
Vibration Resistance :
≥ 20 g
Input Voltage :
DC 5V
Output Type :
Analog or Digital
Dimension :
40mm × 20mm
Description
4.2 Composition

The product is mainly composed of the following components:

  • an optical path assembly;
  • Detection and control signal circuit board;
  • Optical fiber ring skeleton, shell and other structural parts;

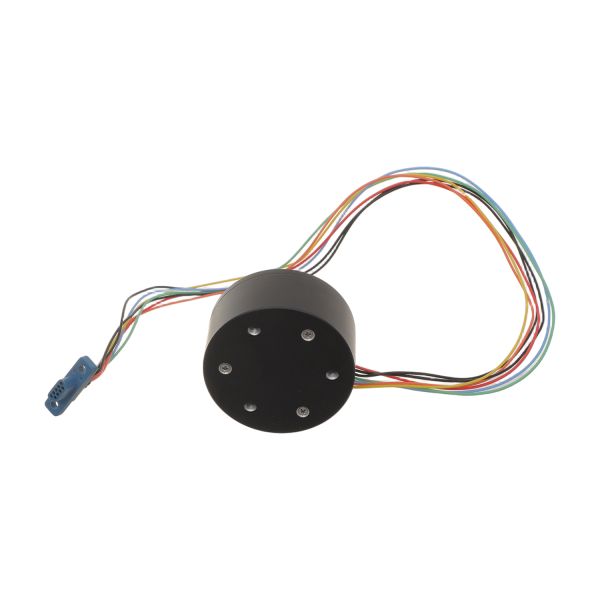

4.3 Appearance and dimension

The product is cylindrical with overall dimension of φ40mm * 20mm

Weight

≤40g

4.5 Operating temperature

-40℃~+70℃.

4.6 Storage temperature

-55℃~+85℃.

4.7 Random vibration

Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.

4.8 Main performance parameters

Table 1 Main Performance Parameters

Serial number Project Performance indicators
1 Range (°/s) ±150
2 Scale factor (mV/ °/s) 12±1.2
3 Zero-bias stability (10s, 1σ, °/h) ≤1
4 Zero-bias repeatability (1σ, °/h) ≤1
5 Angular random walk (°/h 1/2) ≤0.02
6 Zero-bias temperature sensitivity (uV/° C) ≤1
7 Scale Factor Temperature Sensitivity (ppm/° C) ≤300
8 3dB Bandwidth (Hz) ≥450

External Power Supply Requirements

Voltage 4.75V~5.25V
Ripple 20mV
Electric current 0.2A
