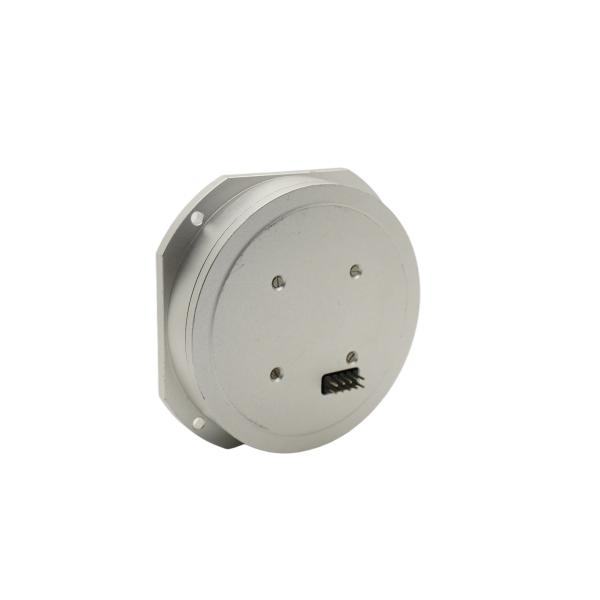

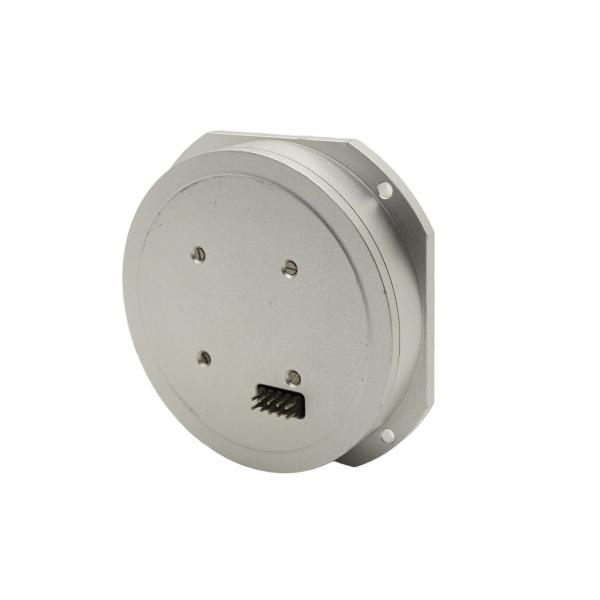

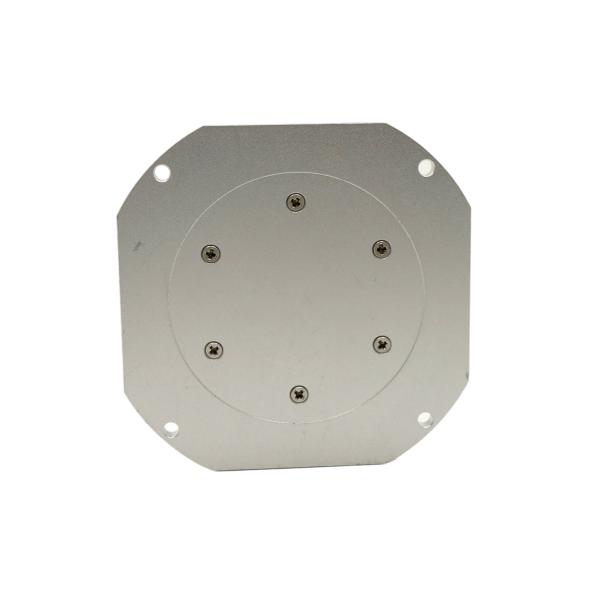

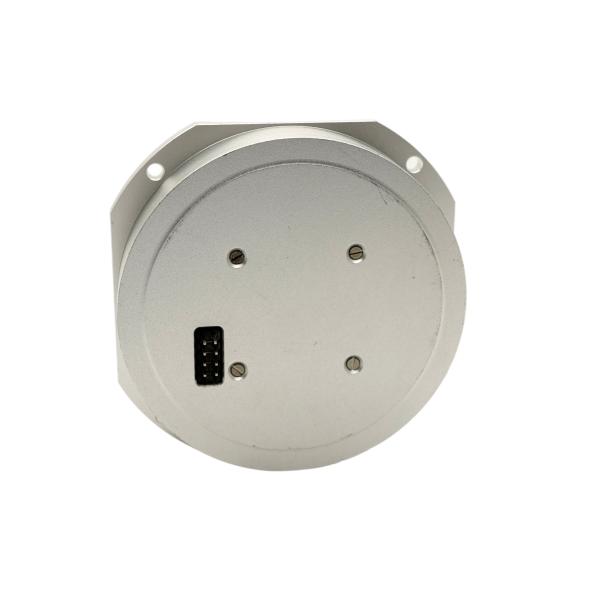

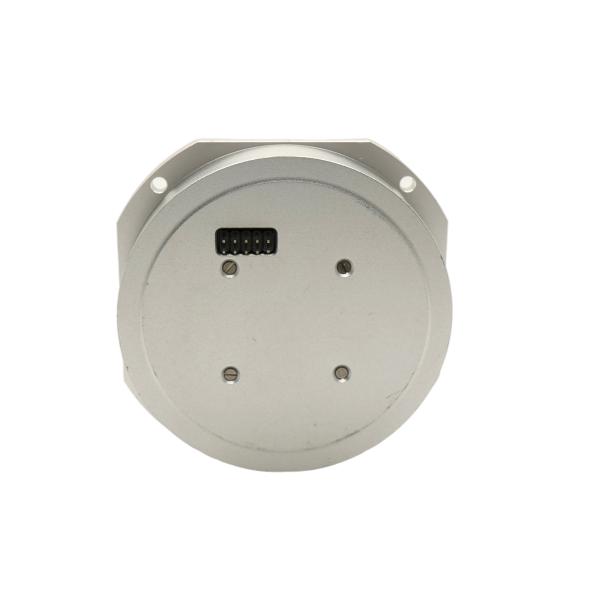

High Precision Fiber Optical Gyroscope for Angular Speed Measurement
High Precision Fiber Optical Gyroscope for Angular Speed Measurement
High Precision Fiber Optical Gyroscope for Angular Speed Measurement
High Precision Fiber Optical Gyroscope for Angular Speed Measurement
High Precision Fiber Optical Gyroscope for Angular Speed Measurement
High Precision Fiber Optical Gyroscope for Angular Speed Measurement
High Precision Fiber Optical Gyroscope for Angular Speed Measurement
High Precision Fiber Optical Gyroscope for Angular Speed Measurement
High Precision Fiber Optical Gyroscope for Angular Speed Measurement
High Precision Fiber Optical Gyroscope for Angular Speed Measurement
Specifications
Brand Name :
Firepower
Model Number :
MFOG-910
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
800USD
Packaging Details :
1KG
Delivery Time :
1 weeks for sample
Payment Terms :
100% in advance
Supply Ability :
100 pcs/month
Zero-bias stability :
≤0.8°/h
Zero-bias repeatability :
≤0.8°/h
Meansuremnet Range :
±240°/s
Random walk :
≤0.02°/h
Acceleration :
≥70g
Impact :
≥1500g
Description

Designed for precision measurement, the MFOG-910 micro-nano fiber optic gyroscope employs high-performance micro-nano optical components to achieve superior angular velocity detection. Its integrated optical, mechanical, and electronic design provides stable operation with fast startup and no moving parts. Applications: Laboratory experiments, motion analysis platforms, robotics, and academic research in inertial sensing.

The product is mainly composed of the following components:

  1. an optical path assembly,
  2. Detection and control signal circuit board,
  3. Optical fiber coil skeleton, shell and other structural parts,
4.3 Appearance and dimension

The overall dimension of the product is 82mm * 82mm * 19.5mm (without plug).

4.4 Weight

≤150g.

4.5 Operating temperature

-40℃~+70℃.

4.6 Storage temperature

-55℃~+85℃.

4.7 Random vibration

Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.

4.8 Main performance parameters

Table 1 Main Performance Parameters

Serial number Project Performance indicators
1 Range (°/s) ±240
2 Scale factor (mV/ o /s) 47±5
3 Scale factor nonlinearity (ppm) ≤1000
4 Zero-bias stability (10s, 1σ, o /H) ≤0.8
5 Zero-bias repeatability (1σ, o /H) ≤0.8
6 3dB Bandwidth (Hz) ≥1000
7 Random walk ( o /√ H) ≤0.02
8 Power supply (V) 5+0.25
+12
9 Power Consumption (W) ≤1.5
10 Impact (g) ≥1500
11 Acceleration (g) ≥70
12 Life (years) (calculated assessment) ≥15
13 MTBF (Calculated Assessment) ≥100000
4.9 Mechanical and electrical interfaces
4.9.1 Mechanical interface

The bottom surface of the product is the installation surface, and the overall dimensions and installation interfaces are as follows:

High Precision Fiber Optical Gyroscope for Angular Speed Measurement
