Specifications
Brand Name :
MTL
Model Number :
MTL5561
Place of Origin :
England
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
500pcs/month
Delivery Time :
3 working days
Packaging Details :
original package
Condition :
original brand new
Warranty :
one year
Shipping way :
DHL FedEx express
Application :
Automation Industries, oil, gas, chemical industries
Certificate :
CE ISO TUV
Description

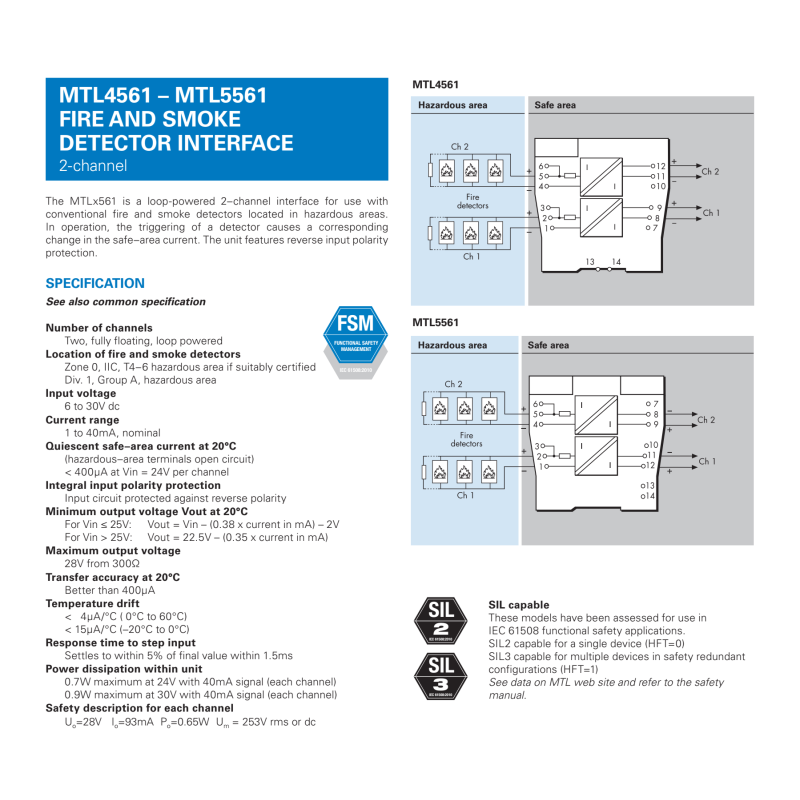

MTL5561 MTL Isolator Barrier Fire and Smoke Detector Interface
Eaton Crouse-Hinds series MTL5500 fire and smoke detector interface featuring 2-channel fully floating design, 20-35 Vdc power supply, and loop-powered operation. Provides reliable signal isolation for fire and smoke detection systems in hazardous locations with reverse polarity protection.
Product Overview
Product Name Eaton Crouse-Hinds series MTL5500 fire and smoke detector interface
Catalog Number MTL5561
EAN 3066227675809
Product Dimensions 109.8 mm (Length/Depth) × 118.8 mm (Height) × 15.8 mm (Width)
Product Weight 150 g
Global Catalog MTL5561
Product Type Fire and smoke detector interface
Technical Specifications
Type
Loop-powered
Area Classification
Hazardous/Classified Locations
Standards Compliance
IECEx/ATEX, IEC
Hazardous Rating
Zone 0
Operating Temperature
-20°C to 60°C
Storage Temperature
-40°C to 80°C
Humidity
5-95% relative humidity
Signal Type
Fire and smoke
Response Time
Settles to within 5% of final value within 1.5ms
Number of Channels
2, fully floating
Terminal Capacity
Accepts conductors up to 2.5mm² stranded or single-core
Mounting Method
T-section 35mm DIN rail
EMC Compliance
EN61326
Safety Integrity Level
SIL2 according to IEC61508
Systematic Capability
Input circuit protected against reverse polarity
Electrical Connection
Crimp ferrules
Power Supply
20-35 Vdc
Current Range
1-40mA
Maximum Input Voltage
6-30 Vdc
Maximum Output Voltage
28V from 300Ω
Galvanic Isolation
250V rms between safe-area circuits and power supply
Power Dissipation
0.7W max at 24V with 40mA signal
0.9W max at 30V with 40mA signal
Transfer Accuracy
Better than 400μA
Temperature Drift
<4μA/°C (0°C to 60°C)
<15μA/°C (-20°C to 0°C)
