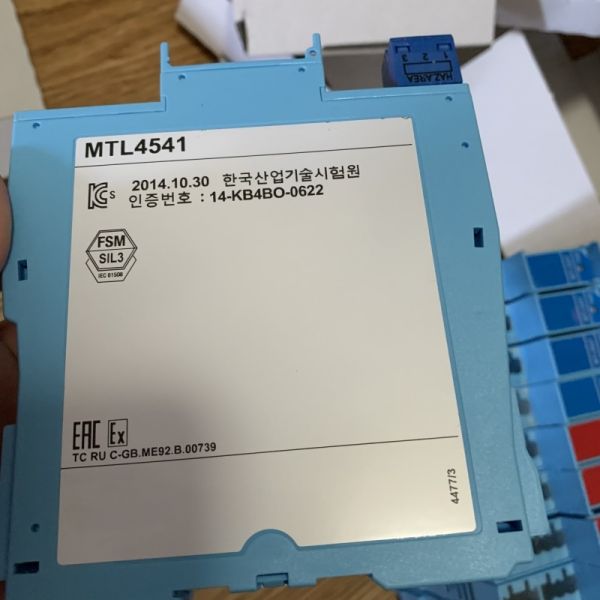

Eaton MTL4541A Intrinsic Safety Barrier with HART Communication and 4-20mA Signal for Zone 0 Hazardous Areas
Eaton MTL4541A Intrinsic Safety Barrier with HART Communication and 4-20mA Signal for Zone 0 Hazardous Areas
Eaton MTL4541A Intrinsic Safety Barrier with HART Communication and 4-20mA Signal for Zone 0 Hazardous Areas
Eaton MTL4541A Intrinsic Safety Barrier with HART Communication and 4-20mA Signal for Zone 0 Hazardous Areas
Specifications
Brand Name :
Eaton
Model Number :
MTL4541A
Place of Origin :
England
MOQ :
1
Price :
negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
500pcs/month
Delivery Time :
In stock
Packaging Details :
original package
Condition :
Eaton original brand new
Warranty :
one year
Shipping way :
DHL FedEx
Application :
oil gas chemical industry
Description
MTL4541A Eaton Safety Barrier
The MTLx541A provides an input for separately powered 4/20mA transmitters and also allows bi-directional transmission of HART communication signals superimposed on the 4/20mA loop current. Alternatively, the MTLx541AS acts as a current sink for a safe-area connection rather than driving a current into the load.
Product Information
Product Name Eaton Crouse-Hinds series MTL4500 current repeater
Catalog Number MTL4541A
EAN 3066227675907
Product Length/Depth 104.8 mm
Product Height 121.8 mm
Product Width 15.8 mm
Product Weight 140 g
Product Type Current repeater
Certifications and Compliances
Area classification Hazardous/Classified Locations
Standards type IEC
IECEx/ATEX hazardous rating Zone 0
EMC EN61326
Safety Integrity Level According to IEC61508 SIL2
Technical Specifications
Signal Type Analogue input
Number of Channels 1
Mounting Method MTL4500 range of backplanes
Power Dissipation 0.8W at 24 Vdc
Signal Range 4-20mA
Response Time Settles within 200µA of final value after 20ms
Communication Supported HART
Transfer Accuracy Better than 20µA
Temperature Drift <1µA/°C
Ripple <50µA peak-to-peak up to 80 kHz
Galvanic Isolation 50V between safe-area circuits and power supply
Type Passive i/p for HART transmitters
Key Features
  • Input for separately powered 4/20mA transmitters
  • Bi-directional HART communication signal transmission
  • Current sink capability for safe-area connections
  • High precision transfer accuracy better than 20µA
  • Certified for hazardous locations (Zone 0)
  • SIL2 safety integrity level compliance
