Specifications
Brand Name :
MTL
Model Number :
MTL5575
Place of Origin :
England
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
500pcs/month
Delivery Time :
3 working days
Packaging Details :
original package
Condition :
original brand new
Warranty :
one year
Shipping way :
DHL FedEx express
Application :
Automation Industries, oil, gas, chemical industries
Certificate :
CE ISO TUV
Description

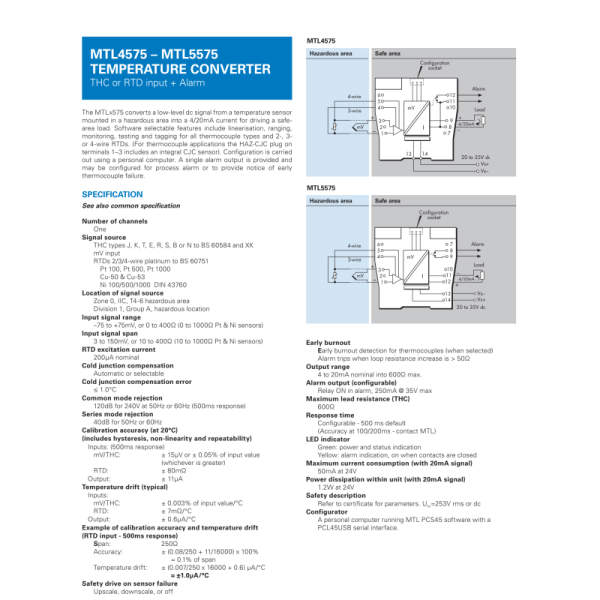

MTL5575 MTL Intrinsic Safety Isolators Temperature Converter
Eaton Crouse-Hinds series MTL5500 temperature converter with THC or RTD input and alarm functionality, designed for hazardous locations with comprehensive safety features.
Product Overview
Product NameEaton Crouse-Hinds series MTL5500 temperature converter
Catalog NumberMTL5575
EAN3066227675808
Product TypeTemperature converter
TypeTHC or RTD input and alarm
Physical Specifications
Length/Depth109.8 mm
Height118.8 mm
Width15.8 mm
Weight150 g
Environmental & Safety Ratings
Area ClassificationHazardous/Classified Locations
StandardsIECEx/ATEX IEC
Hazardous RatingZone 0
Operating Temperature-20°C to 60°C
Storage Temperature-40°C to 80°C
Humidity5-95% relative humidity
EMCEN61326
Technical Specifications
Signal TypeTemperature input
Input Signal Range-75mV to +75mV
Output Signal Range4-20mA nominal into 600Ω max.
Number of Channels1
Response TimeConfigurable (500ms default)
Power Supply20-35 Vdc
Current Consumption50mA
Power Dissipation1.2W
Maximum Load Resistance600Ω
Transfer Accuracy±11µA
Temperature Drift±0.6µA/°C
Input & Signal Features
  • Input Signal: THC types, mV, RTDs 2/3/4-wire
  • RTD Excitation Current: 200µA
  • Cold Junction Compensation: Automatic or selectable
  • Cold Junction Compensation Error: ≤1.0°C
  • Common Mode Rejection: 120 dB for 240V at 50 or 60 Hz
  • Series Mode Rejection: 40 dB for 50 or 60 Hz
  • Early Burnout Detection: For thermocouples (when selected)
  • Alarm trips when loop resistance increase is >50Ω
  • Safety Drive on Sensor Failure: Upscale, downscale, or off
Installation & Configuration
Mounting MethodT-section 35mm DIN rail
Terminal CapacityAccepts conductors of up to 2.5mm² stranded or single-core
Electrical ConnectionCrimp ferrules
ConfigurationPersonal computer running MTL PCS45 software with PCL45USB serial interface
Galvanic Isolation250V rms between safe-area circuits and power supply
LED Indicators
Power IndicatorGreen LED
Status IndicatorYellow LED
