PEPPERL+FUCHS Isolated Barrier Switch Amplifier KFD2-SR2-Ex2.2S
PEPPERL+FUCHS Isolated Barrier Switch Amplifier KFD2-SR2-Ex2.2S
PEPPERL+FUCHS Isolated Barrier Switch Amplifier KFD2-SR2-Ex2.2S
PEPPERL+FUCHS Isolated Barrier Switch Amplifier KFD2-SR2-Ex2.2S
PEPPERL+FUCHS Isolated Barrier Switch Amplifier KFD2-SR2-Ex2.2S
PEPPERL+FUCHS Isolated Barrier Switch Amplifier KFD2-SR2-Ex2.2S
Specifications
Brand Name :
PEPPERL+FUCHS
Model Number :
KFD2-SR2-Ex2.2S
Place of Origin :
Singapore
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
500pcs/month
Delivery Time :
3 working days
Packaging Details :
original package
Condition :
original brand new
Warranty :
one year
Shipping way :
DHL FedEx express
Application :
Automation Industries, oil, gas, chemical industries
Certificate :
CE ISO TUV
Description
PEPPERL+FUCHS Isolated Barrier Switch Amplifier KFD2-SR2-Ex2.2S
Product Overview
The PEPPERL+FUCHS KFD2-SR2-Ex2.2S is a 2-channel isolated barrier switch amplifier designed for intrinsic safety applications in industrial environments. This robust device transfers digital signals from hazardous areas to safe areas while providing reliable isolation and protection.
Key Features
  • 2-channel isolated barrier with 24 V DC Power Rail supply
  • Compatible with dry contact or NAMUR inputs
  • Can function as a signal splitter (1 input and 2 outputs)
  • 2 x 2 relay contact outputs with AND logic
  • Integrated line fault detection (LFD)
  • Reversible mode of operation
  • SIL 2 certification according to IEC/EN 61508
Functional Description

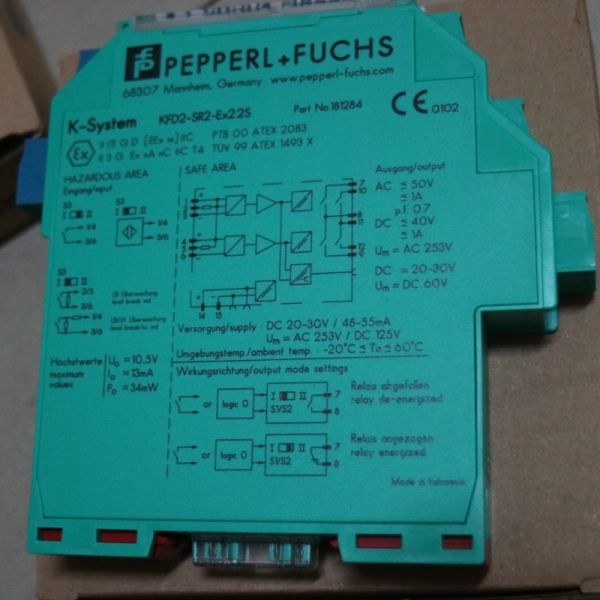

This isolated barrier is engineered for intrinsic safety applications, transferring digital signals from NAMUR sensors or mechanical contacts located in hazardous areas to safe area equipment. Each sensor or switch controls two form A normally open relay contacts for safe area load operation.

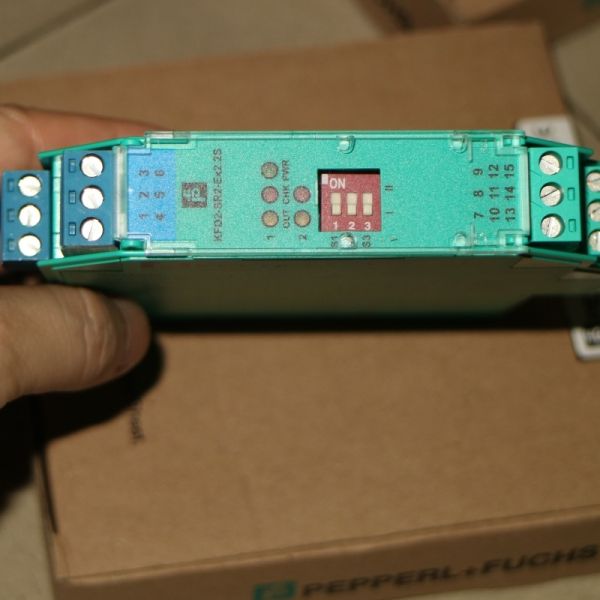

The device offers flexible configuration with switches S1 and S2 for reversing the normal output state, and switch S3 for enabling or disabling line fault detection of the field circuit. During error conditions, relays revert to their de-energized state with LED fault indication according to NAMUR NE44 standards.
When used with the Power Rail system, the amplifier provides unique collective error messaging capabilities for enhanced system monitoring and diagnostics.
PEPPERL+FUCHS Isolated Barrier Switch Amplifier KFD2-SR2-Ex2.2S
