PEPPERL+FUCHS Safety Barrier Resistance Repeater KCD2-RR-Ex1 Isolated Barrier
PEPPERL+FUCHS Safety Barrier Resistance Repeater KCD2-RR-Ex1 Isolated Barrier
Specifications
Brand Name :
PEPPERL+FUCHS
Model Number :
KCD2-RR-Ex1
Place of Origin :
Singapore
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
500pcs/month
Delivery Time :
ship out immediately after payment received
Packaging Details :
original package
Condition :
original brand new
Warranty :
one year
Shipping way :
DHL FedEx express
Application :
Automation Industries, oil, gas, chemical industries
Certificate :
CE ISO TUV
Description

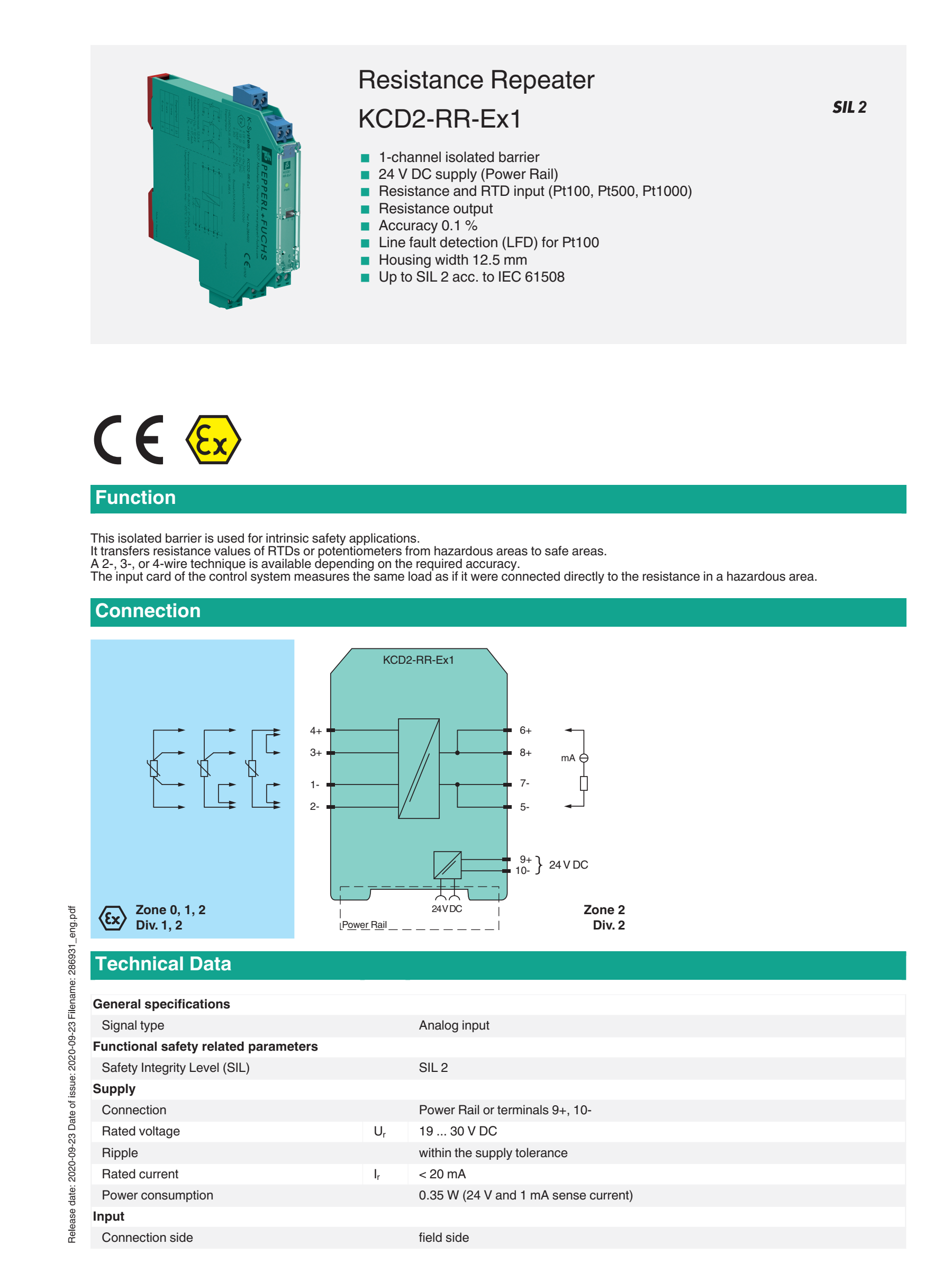

PEPPERL+FUCHS Resistance Repeater KCD2-RR-Ex1

1-channel isolated barrier < 24 V DC supply (Power Rail)

Resistance and RTD input (Pt100, Pt500, Pt1000) < Resistance output

Accuracy 0.1 %

Line fault detection (LFD) for Pt100 < Housing width 12.5 mm

Up to SIL 2 acc. to IEC 61508

Function

This isolated barrier is used for intrinsic safety applications.

It transfers resistance values of RTDs or potentiometers from hazardous areas to safe areas.

A 2-, 3-, or 4-wire technique is available depending on the required accuracy.

The input card of the control system measures the same load as if it were connected directly to the resistance in a hazardous area.

PEPPERL+FUCHS Safety Barrier Resistance Repeater KCD2-RR-Ex1 Isolated Barrier

PEPPERL+FUCHS Safety Barrier Resistance Repeater KCD2-RR-Ex1 Isolated Barrier

PEPPERL+FUCHS Safety Barrier Resistance Repeater KCD2-RR-Ex1 Isolated Barrier
