Eaton MTL4541S MTL4500 Series Repeater Power Supply with Fully-Floating DC Supply for HART 2-Wire Transmitters and 4/20mA Transmitter
Eaton MTL4541S MTL4500 Series Repeater Power Supply with Fully-Floating DC Supply for HART 2-Wire Transmitters and 4/20mA Transmitter
Specifications
Brand Name :
Eaton
Model Number :
MTL4541S
Place of Origin :
England
MOQ :
1
Price :
negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
100pcs/month
Delivery Time :
In stock
Packaging Details :
original package
Condition :
Eaton original brand new
Warranty :
one year
Shipping way :
DHL FedEx
Application :
oil gas chemical industry
Description

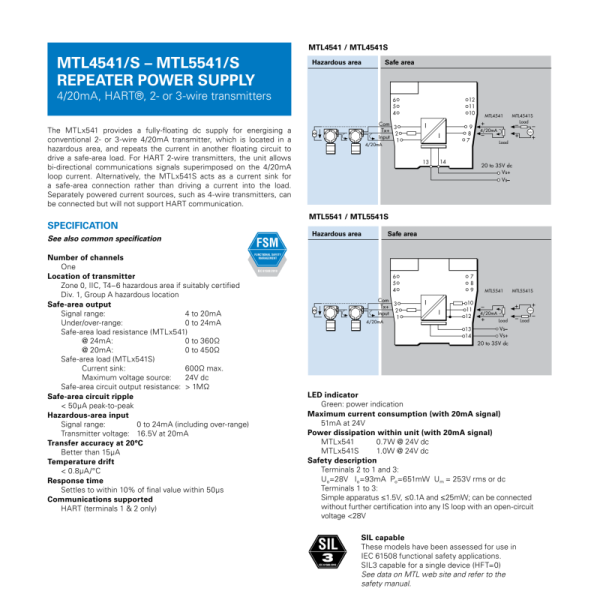

MTL4541S Eaton Crouse-Hinds Series MTL4500 Repeater Power Supply
The MTLx541 provides a fully-floating DC power supply for energizing conventional 2- or 3-wire 4/20mA transmitters located in hazardous areas. It repeats the current in another floating circuit to drive a safe-area load. For HART 2-wire transmitters, the unit supports bi-directional communication signals superimposed on the 4/20mA loop current.
Alternatively, the MTLx541S can function as a current sink for safe-area connections rather than driving current into the load. Separately powered current sources, such as 4-wire transmitters, can be connected but will not support HART communication.
Key Features
  • Fully-floating DC power supply for hazardous area transmitters
  • Supports 2- or 3-wire 4/20mA conventional transmitters
  • Current repeating capability for safe-area loads
  • HART communication support for 2-wire transmitters
  • Alternative current sink operation mode (MTLx541S)
  • Compatible with separately powered 4-wire transmitters
Eaton MTL4541S MTL4500 Series Repeater Power Supply with Fully-Floating DC Supply for HART 2-Wire Transmitters and 4/20mA Transmitter
