Pepperl Fuchs Z966 2-channel AC Version Zener Barrier DIN Rail Mountable Intrinsic Safety Barrier
Pepperl Fuchs Z966 2-channel AC Version Zener Barrier DIN Rail Mountable Intrinsic Safety Barrier
Pepperl Fuchs Z966 2-channel AC Version Zener Barrier DIN Rail Mountable Intrinsic Safety Barrier
Pepperl Fuchs Z966 2-channel AC Version Zener Barrier DIN Rail Mountable Intrinsic Safety Barrier
Specifications
Brand Name :
PEPPERL+FUCHS
Model Number :
Z966
Place of Origin :
Germany
MOQ :
1
Price :
negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
500pcs/month
Delivery Time :
In stock
Packaging Details :
original package
Condition :
original brand new
Warranty :
one year
Shipping way :
DHL FedEx
Application :
oil gas chemical industry
Description
Pepperl Fuchs Zener Barrier Z966
Product Overview
The Zener Barrier Z966 is a 2-channel AC version safety barrier designed for industrial applications requiring intrinsic safety protection in hazardous areas.
Technical Specifications
Channels 2-channel
Version AC version
Working Voltage 10 V at 10 µA
Series Resistance max. 166 Ω
Fuse Rating 50 mA
Mounting DIN rail mountable
Function & Operation

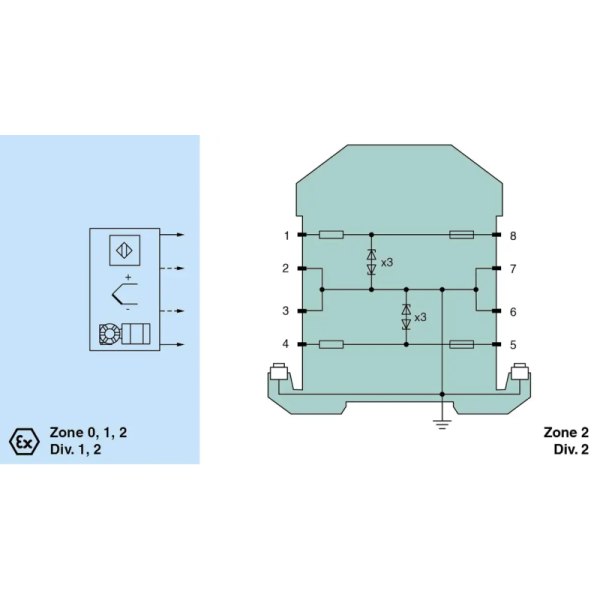

The Zener Barrier prevents the transfer of unacceptably high energy from safe areas into hazardous areas. Zener diodes in the barrier are connected in reverse direction, with the breakdown voltage not exceeded during normal operation. If voltage exceeds safe limits due to faults in the safe area, the diodes conduct and cause the fuse to blow, ensuring safety.
Key Features
  • Alternating polarities with interconnected zener diodes
  • One side grounded for enhanced safety
  • Compatible with both alternating voltage and direct voltage signals
  • Intrinsic safety parameters vary based on application requirements
Application Note: For detailed intrinsic safety parameters and application examples, refer to the Zener Barrier certificate and system description documentation.
