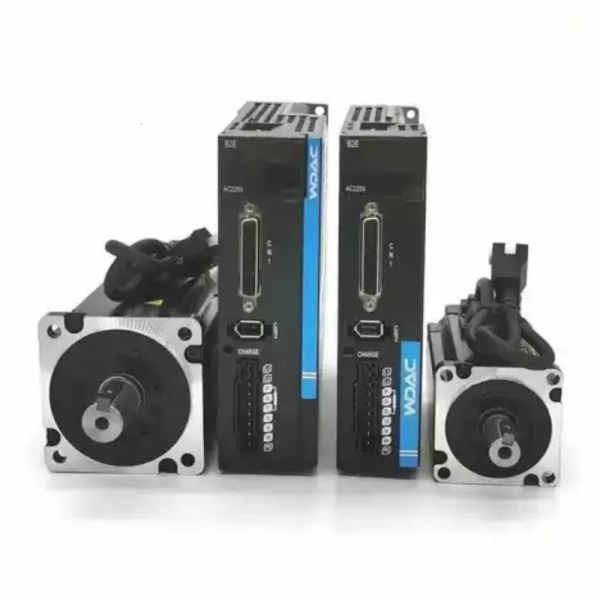

Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Specifications
Brand Name :
WEIDE
Model Number :
600W
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
128 USD
Payment Terms :
L/C,T/T
Supply Ability :
5000/years
Delivery Time :
15days
Packaging Details :
10.00cm * 6.00cm * 12.00cm 3.5kg
Name :
AC Servo Motor Driver
Control Mode :
Position Control
Compatible Feedback Units :
Compatible Feedback Units
Adopts the latest power device IPM :
featuring compact size, strong overload capacity, and high reliability
Optimized brake unit :
suitable for frequent start-stop applications
Simple operation :
Convenient trial run, monitoring, and parameter setting with only 4 keys
Applicable Power Range :
0.1~3.8 KW
Description
High Precision AC Servo Drive with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
Product Specifications
Model NO. 600W Mathematical Model Linear
Signal Continuous Function Automatic Control, Protection
Certification CCC, ISO: 9001, CE Condition New
Customized Non-Customized Material Aluminum Alloy
Input Power Single Phase L1, L2/Three Phase L1, L2, L3 AC220V-
Temperature Working: 0~40℃; Storing: -40~50℃
Control Type PWM Sine Wave Vector Control Feedback Mode 2500PPR Incremental Encoder
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
B Series Universal Servo Driver & Motor Features
  • Control Mode: Position Control
  • Adaptive feedback unit: 2500ppr incremental encoder; 2500ppr wire-saving encoder
  • Adopting the newest IPM (intelligent power module) with small size, high over capacity and reliability
  • Optimized braking unit, adapted to frequent start and stop situations
  • Easy to operate with trial operation, monitoring and parameter setting via 4 keys
  • Adaptive power: 0.1~3.8KW
Model Specifications
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Model No. 10B 15B 20B 30B
Output Power (KW) 0.05-0.4 0.6-1.0 1.0-1.3 1.5-3.8
Rated Torque (N.m) 0.01-1.3 1.9-4 4-10 6-15
Technical Specifications
Input Power Single Phase L1,L2/Three Phase L1,L2,L3 AC220V-15%~+10%
Temperature Working: 0~40℃; Storing: -40~50℃
Humidity Working: 40%~80%(no dew); Storing: below 93%(no dew)
IP Grade IP20
Control Mode PWM sine wave vector control
Regenerative Braking For power above 0.4KW, use built-in brake resistor. When inertia is large, use external resistor via terminals B1,B2
Driver Dimensions
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Wiring Diagram
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Certifications & Compliance
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Industry Applications
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
Packaging & Delivery
Single Phase / Three Phase AC Servo Motor Driver High Precision AC Servo Systems
