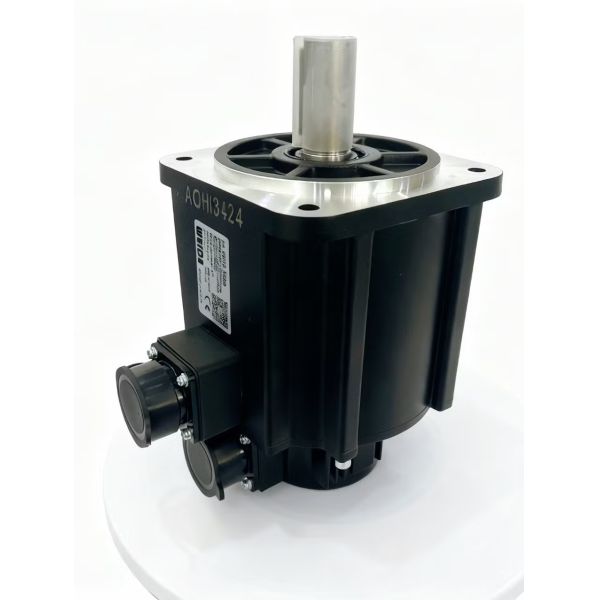

Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
Specifications
Brand Name :
WEIDE
Model Number :
110ST-CJ104030L5/1.5kw
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
203 USD
Payment Terms :
L/C,T/T
Supply Ability :
5000/years
Delivery Time :
15days
Packaging Details :
10.00cm * 6.00cm * 12.00cm 3.5kg
Control Mode :
Position Control
Compatible Feedback Units :
Compatible Feedback Units
Adopts the latest power device IPM :
featuring compact size, strong overload capacity, and high reliability
Optimized brake unit :
suitable for frequent start-stop applications
Simple operation :
Convenient trial run, monitoring, and parameter setting with only 4 keys
Applicable Power Range :
0.1~3.8 KW
Description

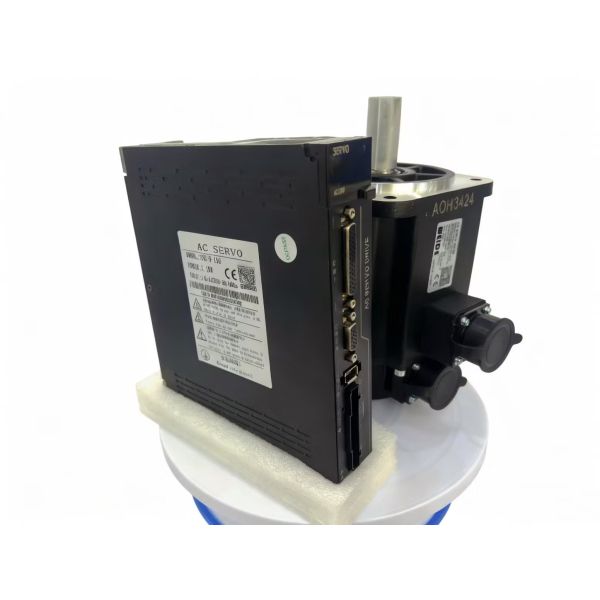

Advanced Precision Servo Motor with Digital Servo Drive
Industrial automation motion control system featuring high precision and reliability for demanding applications.
Product Specifications
Model Number 110ST-CJ104030L5/1.5kw
Mathematical Model Linear
Signal Type Continuous
Function Automatic Control, Protection
Certifications CCC, ISO: 9001, CE
Condition New
Material Aluminum Alloy
Input Power Single Phase L1, L2/Three Phase L1, L2, L3 AC220V
Temperature Range Working: 0~40℃; Storing: -40~50℃
Control Type PWM Sine Wave Vector Control
Feedback Mode 2500PPR Incremental Encoder
B Series Universal Servo Driver & Motor Features
Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
  • Control Mode: Position Control
  • Adaptive feedback unit: 2500ppr incremental encoder; 2500ppr wire-saving encoder
  • Adopting the newest IPM (intelligent power module) with small size, high over capacity and reliability
  • Optimized braking unit, ideal for frequent start and stop applications
  • Easy operation with trial operation, monitoring and parameter setting via 4 keys
  • Adaptive power range: 0.1~3.8KW
Model Specifications
Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
Model No. 10B 15B 20B 30B
Output Power (KW) 0.05-0.4 0.6-1.0 1.0-1.3 1.5-3.8
Rated Torque (N.m) 0.01-1.3 1.9-4 4-10 6-15
Technical Specifications
Input Power Single Phase L1,L2/Three Phase L1,L2,L3 AC220V-15%~+10%
Temperature Range Working: 0~40℃; Storing: -40~50℃
Humidity Working: 40%~80% (no dew); Storing: below 93% (no dew)
IP Grade IP20
Control Mode PWM sine wave vector control
Regenerative Braking Built-in brake resistor for power above 0.4KW. External resistor required for large inertia applications
Driver Dimension Drawing
Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
B2 Series Wiring Diagram (Position Control)
Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
Certifications & Compliance
Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
Industry Applications
Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
Packaging & Delivery
Precision Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control
