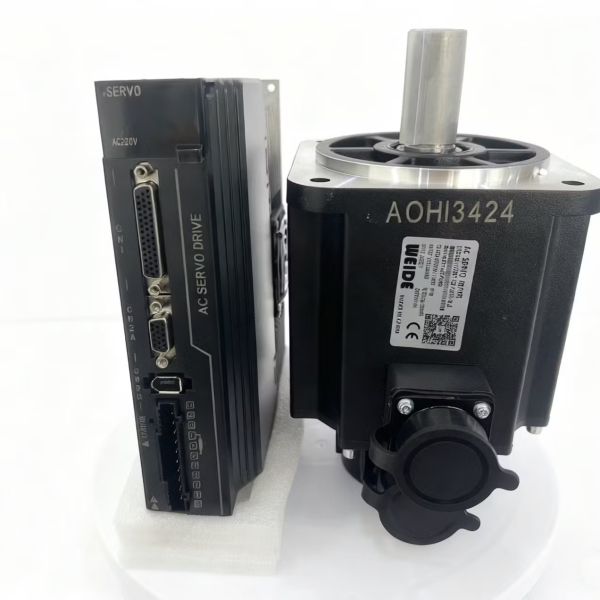

High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
Specifications
Brand Name :
WEIDE
Model Number :
180ST-M17215H4/2.7KW
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
526 USD
Payment Terms :
L/C,T/T
Supply Ability :
5000/years
Delivery Time :
15days
Packaging Details :
10.00cm * 6.00cm * 12.00cm 3.5kg
Name :
Integrated Servo Drive
Control Mode :
Position Control
Compatible Feedback Units :
Compatible Feedback Units
Adopts the latest power device IPM :
featuring compact size, strong overload capacity, and high reliability
Optimized brake unit :
suitable for frequent start-stop applications
Simple operation :
Convenient trial run, monitoring, and parameter setting with only 4 keys
Applicable Power Range :
0.1~3.8 KW
Description
High Efficiency AC Servo Drive with 2500PPR Incremental Encoder, PWM Sine Wave Vector Control, and Position Control for Industrial Automation

Advanced industrial automation control system component designed for precision motion control applications.

Product Specifications
Model Number
180ST-M17215H4/2.7KW
Mathematical Model
Linear
Certifications
CCC, ISO 9001, CE
Material
Aluminum Alloy
Input Power
Single Phase L1, L2 / Three Phase L1, L2, L3 AC220V
Operating Temperature
Working: 0~40℃; Storing: -40~50℃
Technical Features
  • Control Type: PWM Sine Wave Vector Control
  • Feedback Mode: 2500PPR Incremental Encoder
  • Control Mode: Position Control
  • Digital Input: Multiple control signals including servo on, clear, and direction commands
  • Digital Output: Status indicators including servo ready, alarm, and position completed
  • Monitor Function: Real-time monitoring of speed, current position, position deviation, and motor parameters
  • Protection Function: Comprehensive safety features including overspeed, overvoltage, overcurrent, and overload protection
B Series Universal Servo Driver & Motor
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
  • Position Control Mode with adaptive feedback
  • Intelligent Power Module (IPM) for high reliability
  • Optimized braking unit for frequent start/stop operations
  • Easy operation with 4-key interface for trial operation and parameter setting
  • Adaptive power range: 0.1~3.8KW
Model Specifications
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
Model No. 10B 15B 20B 30B
Output Power (KW) 0.05-0.4 0.6-1.0 1.0-1.3 1.5-3.8
Rated Torque (N.m) 0.01-1.3 1.9-4 4-10 6-15
Additional Technical Specifications
  • Input Power: Single Phase L1,L2 / Three Phase L1,L2,L3 AC220V ±15%
  • Operating Humidity: 40%~80% (no dew)
  • IP Grade: IP20
  • Speed Frequency Response: >400Hz
  • Speed Regulation Ratio: 1:5000
  • Encoder Signal: A,B,Z differential output with open collector output
Driver Dimensions
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
Wiring Diagram
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
Certifications & Compliance
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
Industry Applications
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
Packaging & Delivery
High Efficiency Integrated Servo Drive 220V AC Servo Motor System With 2500PPR Incremental Encoder
