IP67 Waterproof Stainless Steel Push Button Switch Metal 22mm
IP67 Waterproof Stainless Steel Push Button Switch Metal 22mm
IP67 Waterproof Stainless Steel Push Button Switch Metal 22mm
IP67 Waterproof Stainless Steel Push Button Switch Metal 22mm
IP67 Waterproof Stainless Steel Push Button Switch Metal 22mm
IP67 Waterproof Stainless Steel Push Button Switch Metal 22mm
IP67 Waterproof Stainless Steel Push Button Switch Metal 22mm
IP67 Waterproof Stainless Steel Push Button Switch Metal 22mm
IP67 Waterproof Stainless Steel Push Button Switch Metal 22mm
IP67 Waterproof Stainless Steel Push Button Switch Metal 22mm
IP67 Waterproof Stainless Steel Push Button Switch Metal 22mm
IP67 Waterproof Stainless Steel Push Button Switch Metal 22mm
Specifications
Max. Voltage :
250 V
Button pattern glow color :
Original color,red,Black,blue,yellow
Illuminated Type :
Ring Illuminated, Dot Illuminated
Switch material :
PA66
Mechanical Life :
2000000 Times
Place of Origin :
Guangdong, China
Head Type :
Rotary Head, Dome Head, Flat Head
Material :
Stainless Steel
Button shape :
Flat round,High round,Spherical
Delivery Time :
30
IP level :
IP65, Ip67
Product Name :
Metal button switch
Switch metal material :
Brass clad nickel,Stainless steel,Alumina
MOQ :
1000
Price :
$2.30-2.40 / piece
Switch body color :
Black,white,red,blue,yellow
Switch Combination :
1NO1NC, 2NO2NC
On button pattern luminous voltage: :
0V/12V/24V/110V/250V
LED :
Other
Whether The Smart :
No
Lifespan (hours): :
50000
Brand Name :
Arcolps
Payment Terms :
T/T
Max. Current :
2 A
Protection Level :
IP67
Model Number :
830122
Structure :
Mechanical
Description
Waterproof IP67/IP65 Rated 22mm Metal Button Switch with Stainless Steel Material
Product Overview

Industrial-grade 22mm metal push button switch designed for outdoor use and marine applications. Features stainless steel construction with IP67/IP65 waterproof ratings and 2A 250V capacity.

  • 22mm metal push button switch with IP67 waterproof rating
  • Stainless steel construction for high durability
  • Available in momentary and latching operation modes

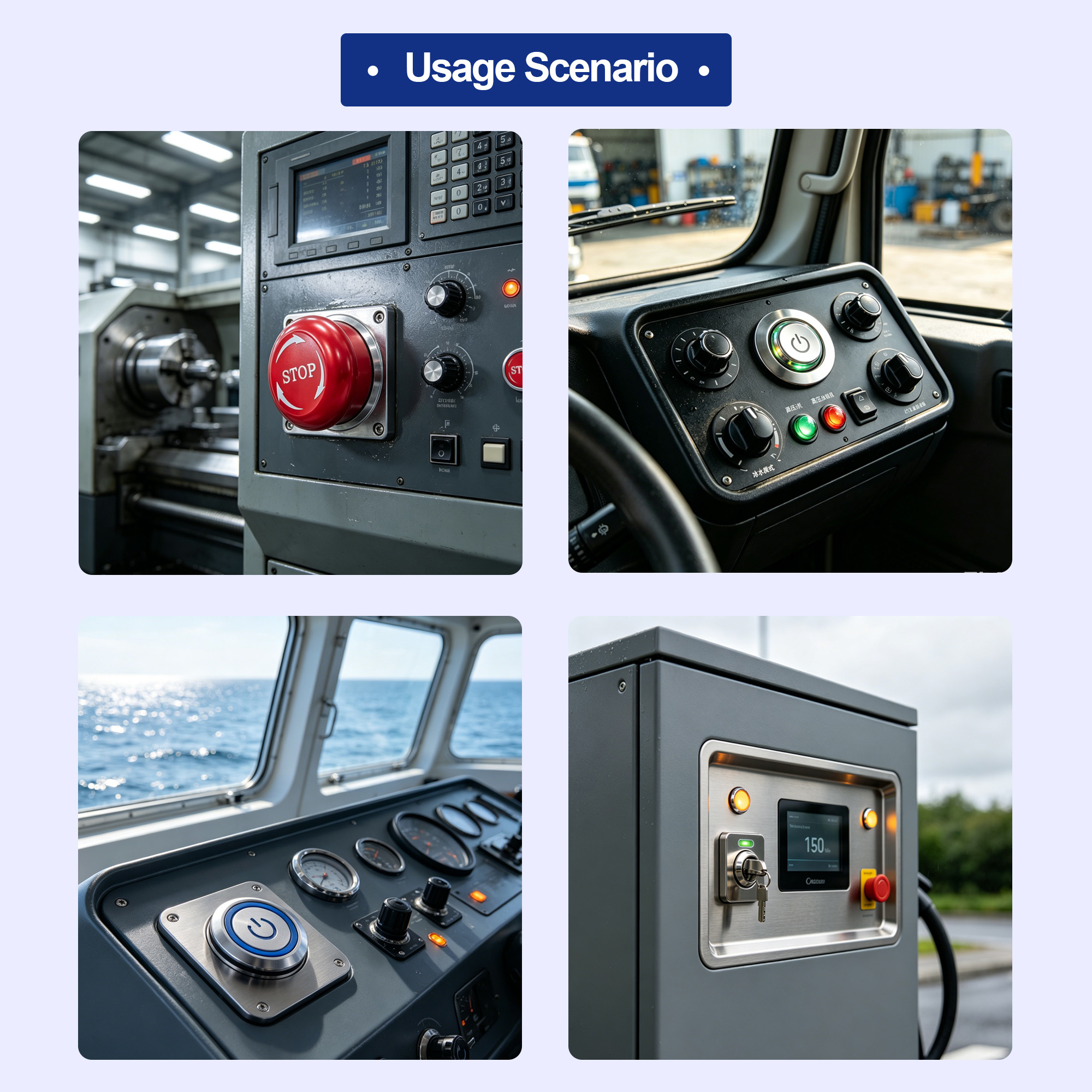

  • Ideal for machinery control panels and heavy equipment
  • Suitable for marine, outdoor, and harsh environments
  • Panel mount design for industrial applications
  • Start-stop control system compatibility
IP67 Waterproof Stainless Steel Push Button Switch Metal 22mm IP67 Waterproof Stainless Steel Push Button Switch Metal 22mm
Manufacturer Profile

Shenzhen Arcolps Electronic Co., Ltd. has been a leading manufacturer since 2004, specializing in high-performance switches and indicator lights with over 20 years of professional expertise.

  • Established in 2004 with headquarters in Bao'an, Shenzhen
  • 20+ years of R&D and production experience
  • 200,000 units daily production capacity
  • Ready inventory for standard models
  • 30-day lead time for non-stock items
  • 60-day complete customization cycle (design, tooling, production)
  • UL, CUL, CSA, ETL, CETL, ENEC, VDE and CQC certified

Applications include home appliances, automotive, medical, communications, power, and marine industries.

Packaging & Shipping
IP67 Waterproof Stainless Steel Push Button Switch Metal 22mm

Professional packaging ensures product protection during transit. Contact for specific packaging and shipping specifications.
