IP65 IP67 Illuminated Metal Push Button Switch Momentary 22mm
IP65 IP67 Illuminated Metal Push Button Switch Momentary 22mm
IP65 IP67 Illuminated Metal Push Button Switch Momentary 22mm
IP65 IP67 Illuminated Metal Push Button Switch Momentary 22mm
IP65 IP67 Illuminated Metal Push Button Switch Momentary 22mm
IP65 IP67 Illuminated Metal Push Button Switch Momentary 22mm
IP65 IP67 Illuminated Metal Push Button Switch Momentary 22mm
IP65 IP67 Illuminated Metal Push Button Switch Momentary 22mm
IP65 IP67 Illuminated Metal Push Button Switch Momentary 22mm
IP65 IP67 Illuminated Metal Push Button Switch Momentary 22mm
IP65 IP67 Illuminated Metal Push Button Switch Momentary 22mm
IP65 IP67 Illuminated Metal Push Button Switch Momentary 22mm
Specifications
Model Number :
830122
IP level :
IP65, Ip67
Price :
$2.30-2.40 / piece
Payment Terms :
T/T
Max. Voltage :
250 V
Head Type :
Rotary Head, Dome Head, Flat Head
Material :
Stainless Steel
Illuminated Type :
Ring Illuminated, Dot Illuminated
Delivery Time :
30
Mechanical Life :
2000000 Times
Brand Name :
Arcolps
Place of Origin :
Guangdong, China
LED :
Other
Whether The Smart :
No
MOQ :
1000
Certification :
CE VDE CB
Max. Current :
2 A
Structure :
Mechanical
Switch Combination :
1NO1NC, 2NO2NC
Description

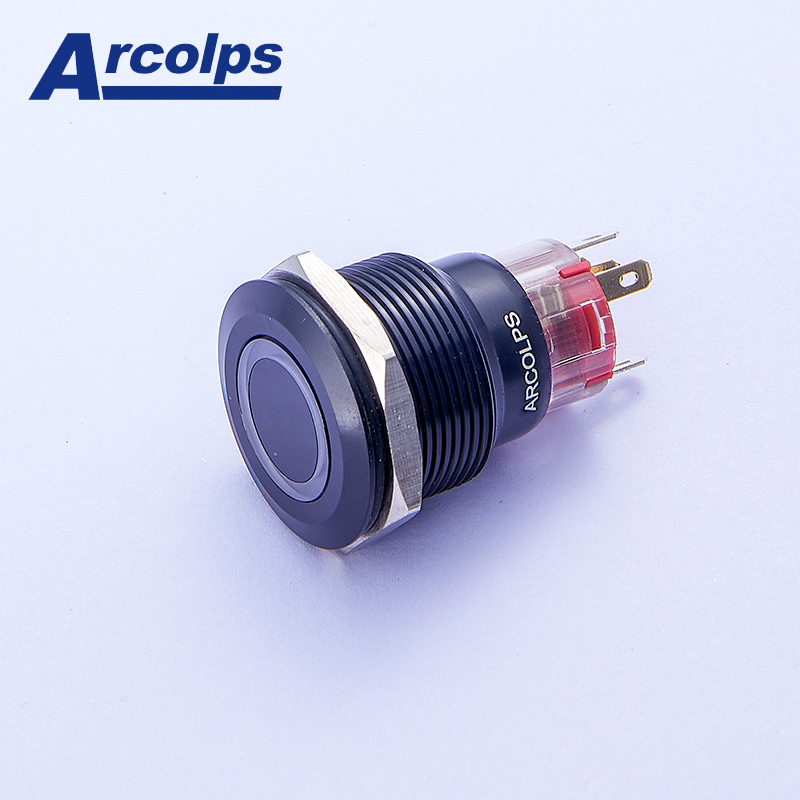

22mm IP67/IP65 Metal Button Switch
High-performance metal button switch with momentary and latching options designed for demanding industrial applications and equipment control systems.
Product Features
  • 22mm metal push button switch with IP67/IP65 waterproof rating
  • Available in momentary and latching operation modes
  • Stainless steel construction for high durability
  • Designed for machinery control panels and industrial equipment
  • Suitable for marine, outdoor, and harsh environment applications
  • Panel mount design with reliable start/stop control functionality
  • Industrial grade construction for heavy-duty applications
IP65 IP67 Illuminated Metal Push Button Switch Momentary 22mm IP65 IP67 Illuminated Metal Push Button Switch Momentary 22mm

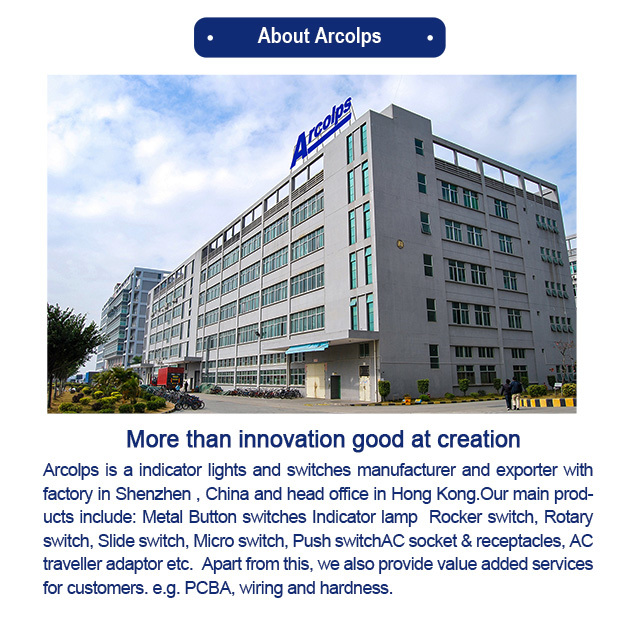

Manufacturer Profile
Established in 2004, Shenzhen Arcolps Electronic Co., Ltd. is a leading manufacturer based in Bao'an, Shenzhen, with 20+ years of professional expertise in the R&D and production of high-performance switches and indicator lights.
Our products are widely applied in home appliances, automotive, medical, communications, power and marine industries, trusted by global customers for stable quality and reliable performance.
Manufacturing Capabilities
  • 200,000 units daily production capacity
  • Ready inventory for standard models
  • 30-day lead time for non-stock items
  • Professional R&D team for custom solutions
  • 60-day complete customization cycle (design, tooling, mass production)
Quality Certifications
All products are certified with UL, CUL, CSA, ETL, CETL, ENEC, VDE and CQC, complying with strict international quality standards.
Packaging & Shipping
