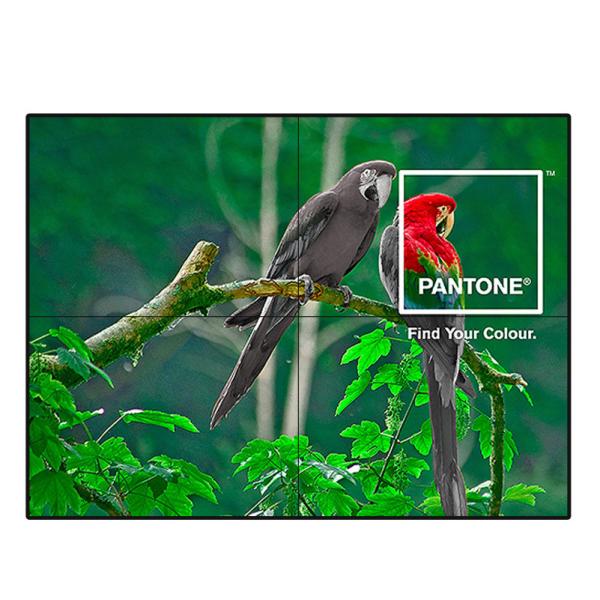

3840x2160 4x4 Control Room Video Walls 700cd/M2 350W 60,000hrs
3840x2160 4x4 Control Room Video Walls 700cd/M2 350W 60,000hrs
Specifications
Model Number :
SW-01
Certification :
CE,FCC, Rohs. CB
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
5000pcs/month
Delivery Time :
7-25
Packaging Details :
Outer wooden box, middle carton, inner PE cotton
Brand Name :
Smart Display
Application :
indoor
view angle :
178°/178°(H/V)
bezel :
3.5mm
size :
55inch
Display colors :
8bit-16.7m
type :
4*4
Customized service :
yes
Brand :
Smart Display
Description

3x3 4X4 LCD Display Panel 4k video wall lcd video wall display lcd screen wall

Specification

Product size table
Panel size Bilateral seam Panel Length Panel Width Panel Thickness Panel Brand Model No.
46inch 1.7mm 1020.02mm 574.61mm 120.54mm Samsung LTI460HN15
46inch 3.5mm 1021.98mm 576.57mm 121.7mm Samsung LTI460HN11
46inch 5.5mm 1023.98mm 578.57mm 133mm Samsung LTI460HN09
49inch 1.8mm 1077.58mm 607.8mm 113.7mm LG LD490DUN-TJB2
49inch 3.5mm 1077.58mm 607.8mm 113.7mm LG LD490DUN-THC4
55inch 1.8mm 1213.5mm 684.3mm 110mm LG LD550DUN-THB8
55inch 3.5mm 1213.5mm 684.30mm 110mm Samsung LTI550HN11

Basic Parameters

Panel Size 46" 49" 55" 65"
Panel Brand with Samsung LG with Samsung/LG with Samsung
Model HBY-PJ460P HBY-PJ490P HBY-PJ550P HBY-PJ650G
Pixel Pitch 0.53025*0.53025mm 0.55926*0.55926mm 0.63*0.63mm 0.372*0.372mm
Viewing Angle 178H/178V
Response Time <6ms
Display Color 8Bit,16.7M
Contrast Ratio 3500:1 1300:1 4500:1 4000:1
Connectivity HDMI/DVI/VGA/AV/RJ45/Audio/Display Port
Bezel Width 1.7mm/3.5mm 1.8mm/3.5mm 0.88mm/1.7mm/1.8mm/3.5mm 3.5mm
Brightness 500cd/m2&700cd/m2 500cd/m2&700cd/m2 500cd/m2&700cd/m2 700cd/m2
Resolution 1920*1080 1920*1080 1920*1080 3840*2160
Power supply AC100-240V/50-60Hz
Sleep mode 0.5W
Max comsumption 180W 200w 220w 350w
Net weight 20kg 25kg 28kg 40kg
Working Temp 0-40℃
Working Humidity 10-90%
Operation 7x24hrs
Life >60,000hrs
Warranty

Standard one year without artificial damage,can be extended to 3 years,lifelong maintenance

3840x2160 4x4 Control Room Video Walls 700cd/M2 350W 60,000hrs

3840x2160 4x4 Control Room Video Walls 700cd/M2 350W 60,000hrs

Packing details:
1. Rap the product with film and foam；
2. Put the packaged product into the carton；
3. Pack the carton into the export wooden box.
Carefully packed our product to make sure customer get perfect product from us.

FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
